Запчасти Case IH 885 (9-444) - INSTRUMENT HOUSING AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

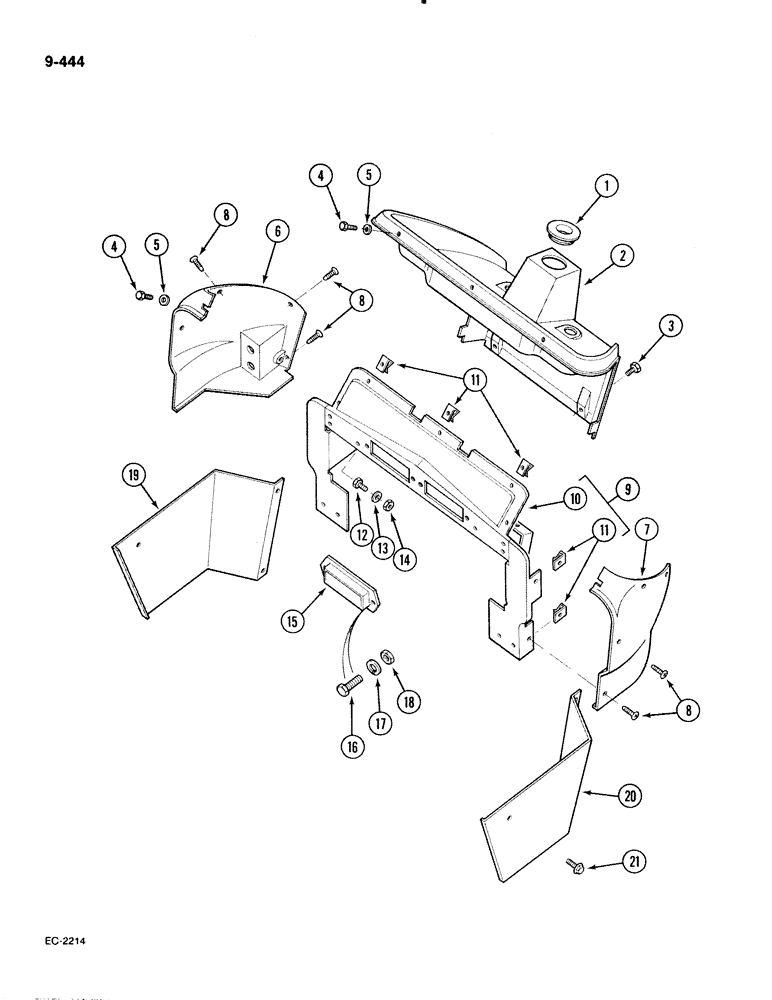

Схема запчастей Case IH 885 - (9-444) - INSTRUMENT HOUSING AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
19
4
5
6
17
9
7
15
2
14
12
18
3
11
20
5
16
10
8
4
8
21
13
11
1
8

Артикул

Название

Примечание

Количество

1

3123366R1

PLUG

BOOT - rubber (Steering column)

1шт.

2

1500974C3

PANEL, INSTRUMENTS

HOUSING - instrument panel

1шт.

2

1332884C1

PANEL, INSTRUMENTS

HOUSING - instrument panel, with oil pressure gauge and ammeter fit

1шт.

3

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

2шт.

3121715R1

SPRING NUT

tapered, plastic, push in, that Ref. 3 screws into

1шт.

4

23994R1

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

SCREW, SELF TAPPING, Hex Hd, #10 x 5/8"

5шт.

5

120391

WASHER,#10

- flat, 0.219 x 0.5 x 0.036 inch

5шт.

6

3121712R3

HOUSING

- instrument panel side, right

1шт.

7

3121711R4

HOUSING

- instrument panel side, left

1шт.

8

24394R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - Phillips pan, tapping, No. 10 x 5/8 inch

10шт.

9

3125771R92

PLATE ASSY.

PLATE - instrument panel support, Includes: Ref. 10 - 11, Serial Range: -26399

1шт.

9

1333010C1

PLATE

- instrument panel support, Includes: Ref. 10 - 11, Start Serial: 26399

1шт.

10

3121684R4

PLATE

- instrument panel back, Serial Range: -26399

1шт.

10

1333008C1

PLATE

- instrument panel back, Start Serial: 26399

1шт.

11

3123171R1

NUT

- captive

7шт.

12

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

13

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

15

NSS

NOT SOLD SEPARAT

BOX - fuse

1шт.

Part of the main harness, see Figure 4-114

1шт.

16

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

2шт.

17

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

19

3121638R1

GUARD

PANEL lower rear side, right

1шт.

19

1536922C1

GUARD

PANEL

1шт.

20

3121637R1

GUARD

PANEL - lower rear side, left

1шт.

21

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

- cap, 1/4 NC x 5/8 inch

6шт.

K947431

FUSE

35 amp, this is the older cylinder type not the newer push in type, see page 4-10

1шт.

Выбрано товаров: 28
