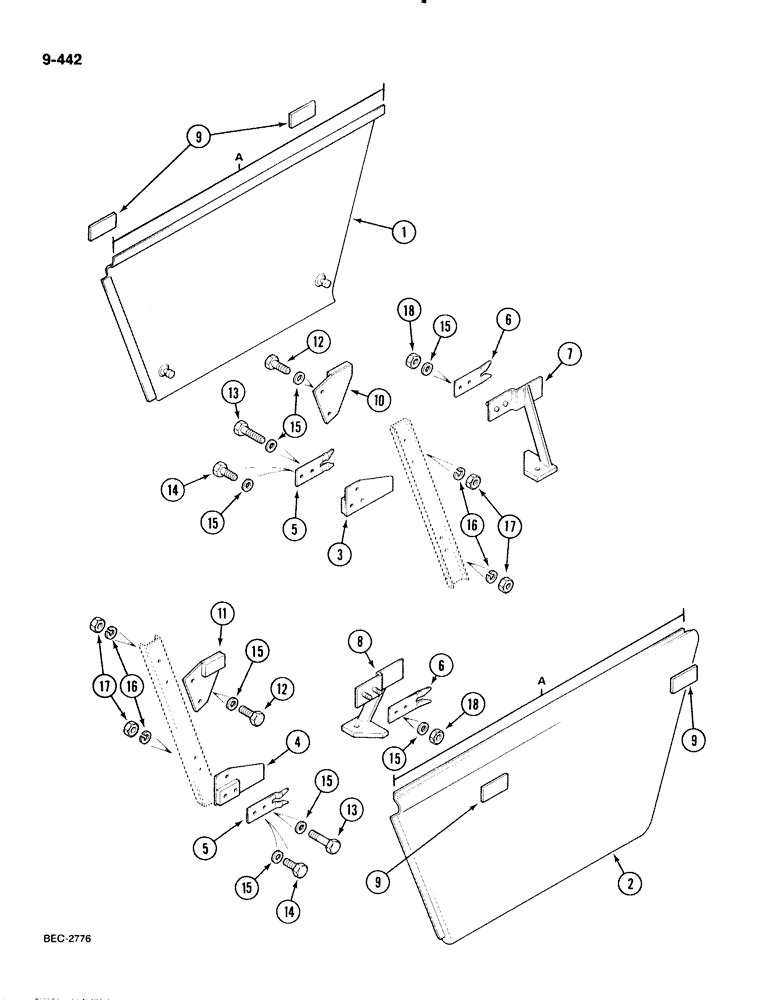

Запчасти Case IH 885 (9-442) - SIDE PANEL REPLACEMENT KITS, PRIOR TO P.I.N. 22045 (09) - CHASSIS/ATTACHMENTS

1970746C1

KIT

- service, right side panel (Kit A), for standard bolster 94178C2 and 4 wheel drive bolster 94180C1, Replacement kit for side panel 99443C1, Includes: Ref. 1 thru 18

1шт.

1970747C1

KIT

- service, left side panel (Kit B), for standard bolster 94178C2 and 4 wheel drive bolster 94180C1, Replacement kit for side panel 99444C1, Includes: Ref. 1 thru 18

1шт.

1970748C1

KIT

- service, right side panel (Kit C), for hi-clearance bolster 94179C1 and fabricated bolster, Replacement kit for side panel 94406C1, Includes: Ref. 1 thru 18

1шт.

1970749C1

KIT

- service, left side panel (Kit D), for hi-clearance bolster 94179C1 and fabricated bolster, Replacement kit for side panel 94407C1, Includes: Ref. 1 thru 18

1шт.

1

1970607C1

PANEL

- side, right, 'A'

1шт.

1

1970615C1

PANEL

- side, right, 'A'

1шт.

2

1970608C1

PANEL

- side, left, 'A'

1шт.

2

1970616C1

PANEL

- side, left, 'A'

1шт.

3

1970727C1

BRACKET

- front, right, for standard bolster 94178C2 and hi-clearance bolster 94179C1

1шт.

4

1970728C1

BRACKET

- front, left (Kits B and D)

1шт.

5

1333180C1

CLIP

- panel, front

1шт.

6

1333181C1

CLIP

- panel, rear

1шт.

7

1333183C1

SUPPORT

- side panel, right (Kits A and C)

1шт.

8

1333184C1

SUPPORT

- side panel, left (Kits B and D)

1шт.

9

1333189C1

RUBBER

BLOCK - rubber

2шт.

10

1970731C1

BRACKET

- hood, right (Kits A and C)

1шт.

11

1970732C1

BRACKET

- hood, left (Kits B and D)

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

14

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, grade 5

1шт.

15

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

4шт.

16

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

18

273924

SNAP RING

NUT - hex lock, 1/4 inch NC, grade 5

2шт.
