(9-440) - HOOD AND SIDE PANELS, WITH CAB (CONTD)

Запчасти Case IH 885 (9-440) - HOOD AND SIDE PANELS, WITH CAB (CONTD) (09) - CHASSIS/ATTACHMENTS

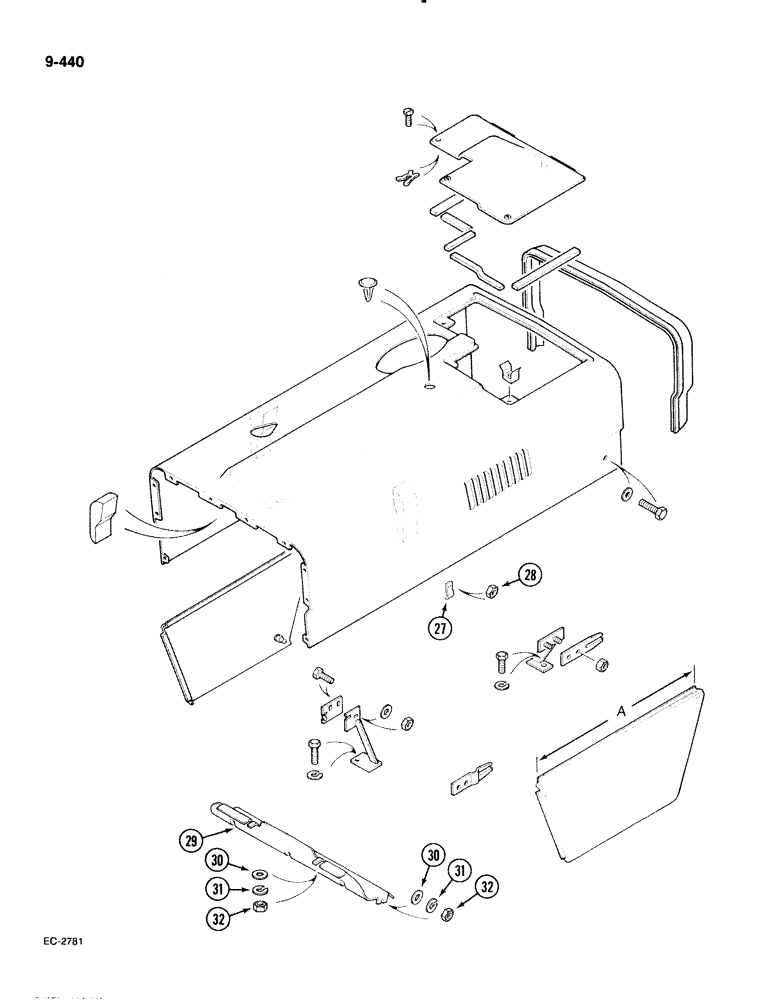

Схема запчастей Case IH 885 - (9-440) - HOOD AND SIDE PANELS, WITH CAB (CONTD) (09) - CHASSIS/ATTACHMENTS
30
27
30
32
32
31
28
29
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

27

94367C1

SPRING

RETAINER - side panel, Serial Range: -22045

2шт.

28

30267R1

NUT,M4, Cl 8

- hex, 4 mm, class 10

4шт.

29

3121397R2

BAFFLE

- upper

1шт.

30

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

4шт.

31

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

4шт.

32

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

4шт.
