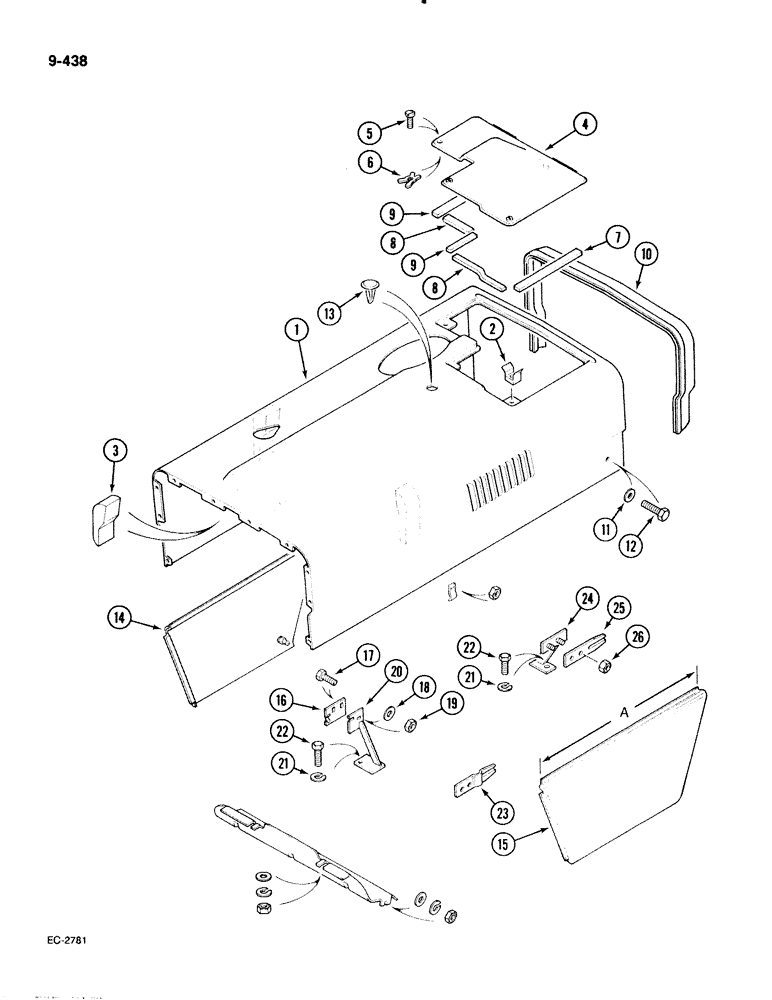

Запчасти Case IH 885 (9-438) - HOOD AND SIDE PANELS, WITH CAB (09) - CHASSIS/ATTACHMENTS

1

94210C92

HOOD ASSY.

HOOD - vertical exhaust, Includes: Ref. 2 and 3

1шт.

2

1502286C1

NUT

- cage floating, 5/16 inch NC

3шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

3129716R91

COVER ASSY

COVER - rear hood, Includes: Ref. 5 - 9

1шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

3шт.

5

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872R1)

3шт.

6

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

3шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10 inch (Cut from 1265282C1)

1шт.

7

1265282C1

STRIP

SEAL - bulk length

1шт.

7

73211C1

GASKET

SEAL - bulk length, Serial Range: (Optional-1265282C1)

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 5.5 inch (Cut from 1265282C1)

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 4 inch (Cut from 1265282C1)

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

10

1265280C1

SEAL

- rubber, bulk length, 4 foot roll

1шт.

11

98775C1

WASHER

- flat, 5/16 inch, painted black

2шт.

12

98778C1

BOLT

- hex, 5/16 inch NC, painted black

2шт.

In this area on the inside of the hood there is a rubber mt. See steering wheel Figure 5-154, Ref. 15, P/N 3129866R1.

1шт.

13

3129635R1

PLUG

- screen washer hole

1шт.

14

99443C1

PANEL

- side, right, for replacement order kit 1970746C1, See Figure 9-442, Serial Range: -22045

1шт.

14

1970607C1

PANEL

- side, right, 'A'

1шт.

15

99444C1

PANEL

- side, left, for replacement order kit 1970608C1, See Figure 9-442, Serial Range: -22045

1шт.

15

1970608C1

PANEL

- side, left, 'A'

1шт.

16

99642C1

PLATE

- adjustable, right, Serial Range: -22045

1шт.

16

99644C1

PLATE

- adjustable, left, Serial Range: -22045

1шт.

17

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - carriage, 1/4 NC x 1/2 inch, grade 5

4шт.

18

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

4шт.

19

273924

SNAP RING

NUT - hex lock, 1/4 inch NC, grade 5

4шт.

20

99627C1

SUPPORT

- side panel, right, Serial Range: -22045

1шт.

20

99628C1

SUPPORT

- side panel, left, Serial Range: -22045

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

23

1333180C1

CLIP

- panel, front, Start Serial: 22045

2шт.

24

1333184C1

SUPPORT

- side panel, left, Start Serial: 22045

1шт.

24

1333183C1

SUPPORT

- side panel, right, Start Serial: 22045

1шт.

25

1333181C1

CLIP

- panel, rear, Start Serial: 22045

2шт.

26

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC, grade 5

8шт.

27

1500482C1

STRIP

100', for isomount, not shown

1шт.
