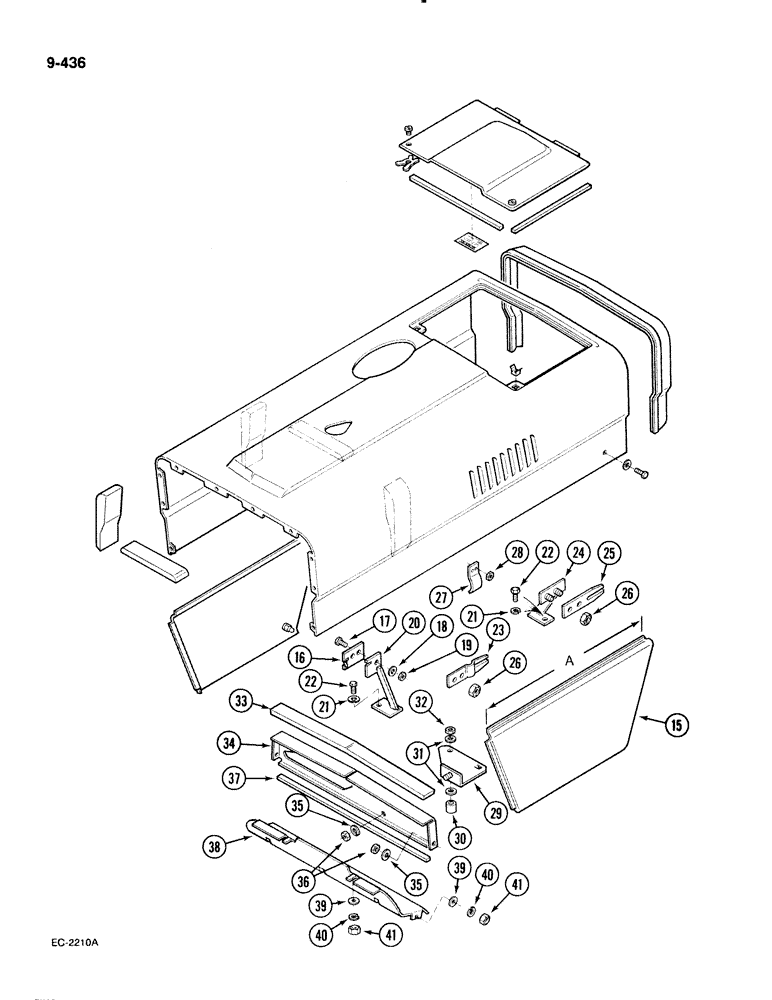

Запчасти Case IH 885 (9-436) - HOOD AND SIDE PANELS, WITHOUT CAB (CONTD) (09) - CHASSIS/ATTACHMENTS

15

94407C1

PANEL

- side, left, hi-clearance bolster or fabricated bolster, for replacement order kit 1970749C1, See Figure 9-442, Serial Range: -22045

1шт.

15

1970616C1

PANEL

- side, left, 'A'

1шт.

16

99642C1

PLATE

- adjustable, right, Serial Range: -22045

1шт.

16

99644C1

PLATE

- adjustable, left, Serial Range: -22045

1шт.

17

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - carriage, 1/4 NC x 1/2 inch, grade 5

4шт.

18

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

4шт.

19

273924

SNAP RING

NUT - hex lock, 1/4 inch NC, grade 5

4шт.

20

99627C1

SUPPORT

- side panel, right, Serial Range: -22045

1шт.

20

99628C1

SUPPORT

- side panel, left, Serial Range: -22045

1шт.

21

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

22

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

23

1333180C1

CLIP

- panel, front, Start Serial: 22045

2шт.

24

1333184C1

SUPPORT

- side panel, left, Start Serial: 22045

1шт.

24

1333183C1

SUPPORT

- side panel, right, Start Serial: 22045

1шт.

25

1333181C1

CLIP

- panel, rear, Start Serial: 22045

1шт.

26

231-4144

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC, grade 5

8шт.

27

94367C1

SPRING

RETAINER - side panel, Serial Range: -22045

2шт.

28

30267R1

NUT,M4, Cl 8

- hex, 4 mm, class 10

4шт.

29

98911C1

BRACKET

- mounting, upper baffle

1шт.

29

1333026C1

BRACKET

- mounting, upper baffle, 4 wheel drive, Start Serial: 22045

1шт.

30

3118801R1

SPACER

- insulation

1шт.

31

95-11034

WASHER,1/4"

- plain, 0.344 x 0.688 x 0.051 inch

2шт.

32

120376

NUT,5/16"-18, G5

1шт.

33

NSS

NOT SOLD SEPARAT

SEAL - upper, 465 mm (Cut from bulk length)

1шт.

34

98912C1

BAFFLE

- upper air

1шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

36

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

37

NSS

NOT SOLD SEPARAT

SEAL - upper air baffle, 416 mm (Cut from bulk length)

1шт.

38

3121397R2

BAFFLE

- upper

1шт.

39

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

4шт.

40

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

4шт.

41

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

4шт.
