Запчасти Case IH 885 (9-434) - HOOD AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

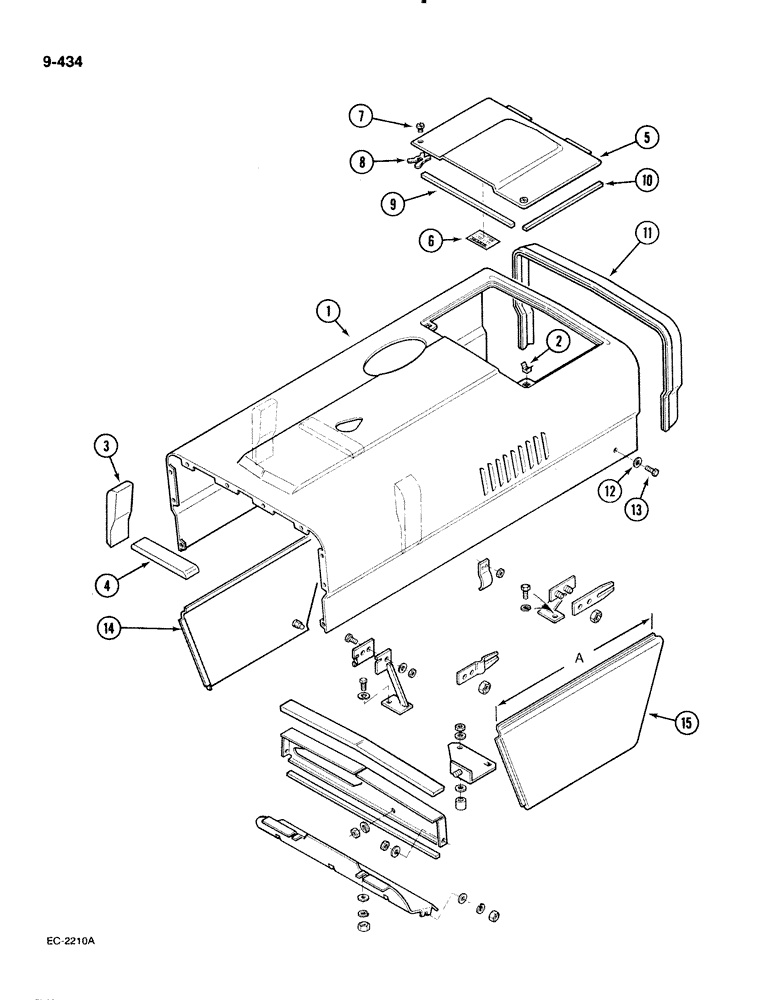

Схема запчастей Case IH 885 - (9-434) - HOOD AND SIDE PANELS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
9
8
5
4
6
15
1
7
2
11
10
14
13
12
3

Артикул

Название

Примечание

Количество

1

94190C93

HOOD ASSY.

HOOD - vertical exhaust, 59" overall, Includes: Ref. 2 - 4, Serial Range: -18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

94188C93

HOOD ASSY.

HOOD - vertical exhaust, 56.25", fabricated bolster, Includes: Ref. 2 - 4, Start Serial: 18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

99726C93

HOOD ASSY.

HOOD - vertical exhaust, hi-clearance bolster, Includes: Ref. 2 - 4, Start Serial: 18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

99724C93

HOOD ASSY.

HOOD - vertical exhaust, standard bolster or 4 wheel drive bolster, Includes: Ref. 2 - 4, Start Serial: 18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

94214C93

HOOD ASSY.

HOOD - underslung exhaust, 59.3", Includes: Ref. 2 - 4, Serial Range: -18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

99734C93

HOOD ASSY.

HOOD - underslung exhaust, 56.3", hi-clearance bolster, Includes: Ref. 2 - 4, Start Serial: 18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

1

99736C93

HOOD ASSY.

HOOD - underslung exhaust, 59.3", standard bolster or 4 wheel drive bolster, Includes: Ref. 2 - 4, Start Serial: 18001

1шт.

P/N 94212C91 Hood is used on N or XL tractors w/downswept exhaust, 56.5". Center filler hole.

1шт.

2

1502286C1

NUT

- cage floating, 5/16 inch NC

2шт.

3

98935C1

SEAL

- foam, hood corner

2шт.

4

NSS

NOT SOLD SEPARAT

SEAL - hood center, 200 mm (Cut from bulk length)

1шт.

5

1330795C1

COVER

- rear hood, with decal 321-6714, Includes: Ref. 6 - 10

1шт.

1536569C1 Cover Vertical Exhaust

1шт.

1536764C1 Cover Downswept Exhaust

1шт.

6

321-6714

DECAL

- battery jump start warning, English

1шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled

2шт.

7

389872R1

THUMB SCREW,Knurled Head, 5/16"-18 x 3/4"

SCREW - knurled (Optional to 389872R1)

2шт.

8

376787R1

WASHER

- X-type, 0.256 x 0.75 inch

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover, 10.9 inch (Cut from 1265282C1)

1шт.

9

1265282C1

STRIP

SEAL - bulk length

1шт.

9

73211C1

GASKET

SEAL - bulk length, Serial Range: (Optional-1265282C1)

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rear hood cover 17 inch (Cut from 1265282C1)

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - hood sheet, 45.7 inch (Cut from 1265280C1)

1шт.

11

1265280C1

SEAL

- rubber, bulk length, 4 foot roll

1шт.

12

98775C1

WASHER

- flat, 5/16 inch, painted black

2шт.

13

98778C1

BOLT

- hex, 5/16 inch NC, painted black

2шт.

14

99443C1

PANEL

- side, right, standard bolster or 4 wheel drive bolster, for replacement order kit 1970746C1, See Figure 9-442, Serial Range: -22045

1шт.

14

1970607C1

PANEL

- side, right, 'A'

1шт.

14

94406C1

PANEL

- side, right, hi-clearance boster or fabricated bolster, for replacement order kit 1970748C1, See Figure 9-442, Serial Range: -22045

1шт.

14

1970615C1

PANEL

- side, right, 'A'

1шт.

15

99444C1

PANEL

- side, left, standard bolster or 4 wheel drive boster, for replacement order kit 1970747C1, See Figure 9-442, Serial Range: -22045

1шт.

15

1970608C1

PANEL

- side, left, 'A'

1шт.

Выбрано товаров: 38
