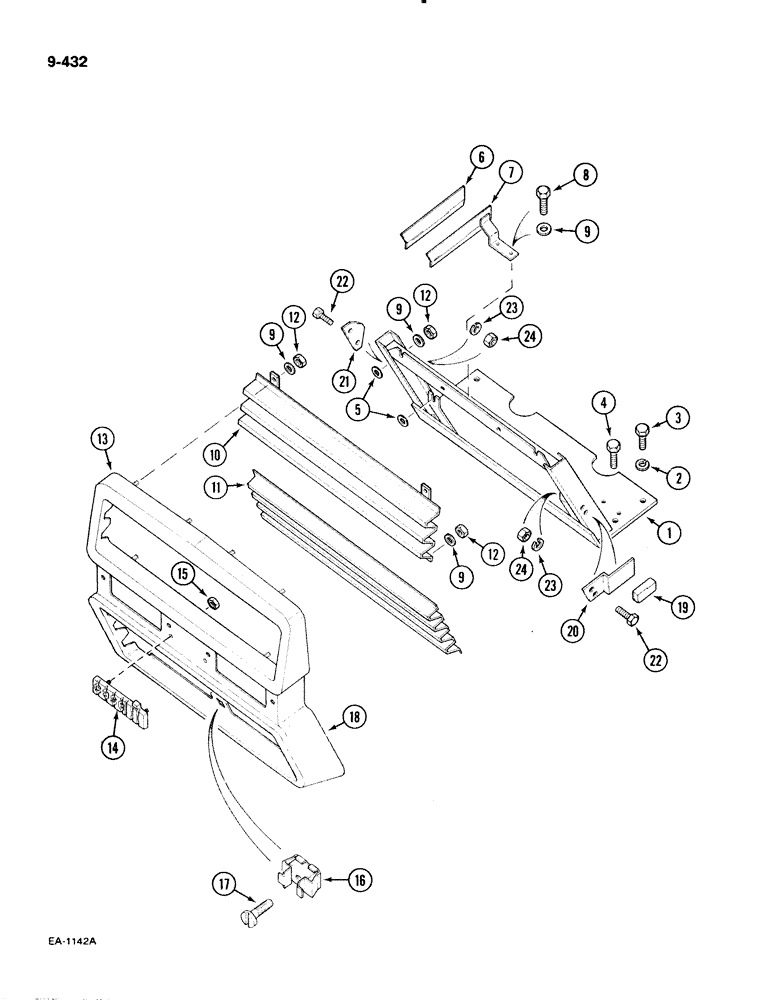

Запчасти Case IH 885 (9-432) - RADIATOR GRILLE (09) - CHASSIS/ATTACHMENTS

1

94301C4

SUPPORT ASSY.

SUPPORT - grille and hood (Hi-clearance and fabricated bolsters)

1шт.

1

99440C4

SUPPORT ASSY.

SUPPORT - grille and hood (All other versions)

1шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

2шт.

5

99854C1

SHIM

- grille support

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - side panel, foam (Cut from 73228C2)

2шт.

6

73228C2

GASKET

SEAL - foam, bulk length, 4 foot roll

1шт.

7

1970649C1

BRACKET

SUPPORT - side seal, right (Used with 94301C4) (Replaces 98889C1)

1шт.

7

1970647C1

BRACKET

SUPPORT - side seal, right (Used with 99440C4) (Replaces 98868C1)

1шт.

7

1970650C1

BRACKET

SUPPORT - side seal, left (Used with 94301C4) (Replaces 98895C1)

1шт.

7

1970648C1

BRACKET

SUPPORT - side seal, left (Used with 99440C4) (Replaces 98869C1)

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

18шт.

10

94283C1

SCREEN

- upper grille

1шт.

11

94285C1

SCREEN

- lower grille

1шт.

12

120375

NUT,Hex, 1/4" - 20, Gr 5

16шт.

13

1970623C1

GRILLE

- front

1шт.

The studs that go on the inside of Ref. 13 are P/N 1968127C1. Requires 16.

1шт.

14

A181523

EMBLEM CASE/IH

EMBLEM - CASE/IH

1шт.

15

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - self-threading, 1/4 inch

2шт.

16

99424C1

NUT

RETAINER - nut

1шт.

17

1333004C1

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

- pan, 1/4 x 3/4 inch, Polyseal

1шт.

1970750C1

PACKAGE

KIT - service, grille, Includes: Ref. 18 - 24, Serial Range: -22376

1шт.

18

1970623C1

GRILLE

- front

1шт.

19

1333189C1

RUBBER

BLOCK - rubber

1шт.

20

1970734C1

PLATE

- panel support, right

1шт.

20

1970735C1

PLATE

- panel support, left

1шт.

21

1970731C1

BRACKET

- hood, right

1шт.

21

1970732C1

BRACKET

- hood, left

1шт.

22

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

23

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

120375

NUT,Hex, 1/4" - 20, Gr 5

6шт.
