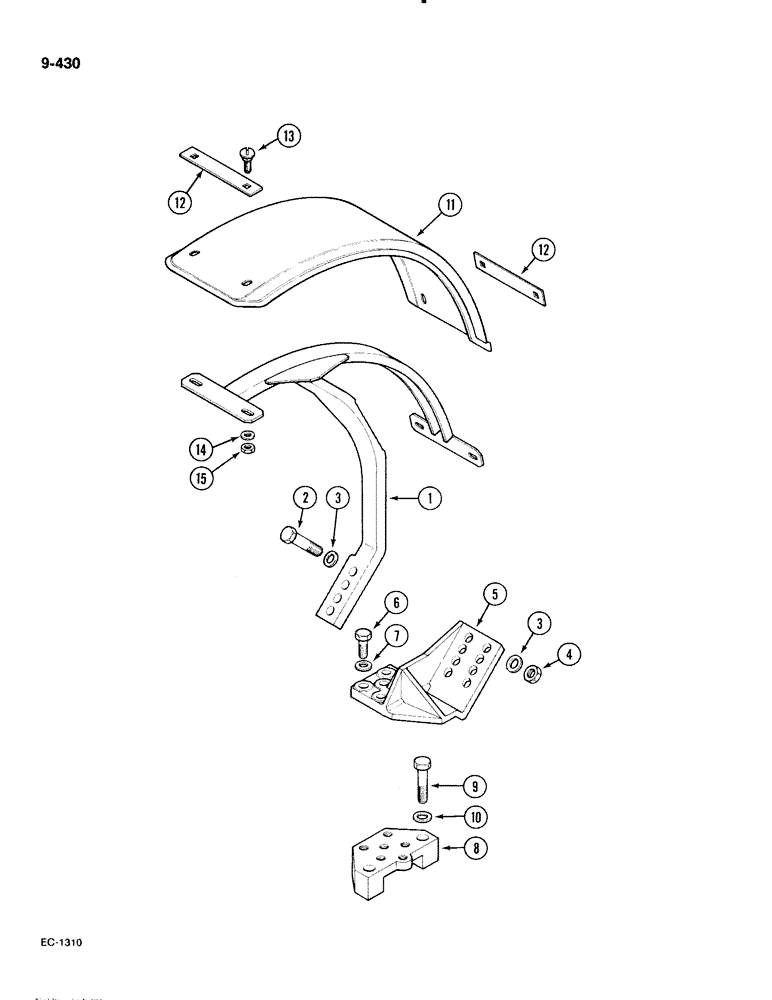

Запчасти Case IH 885 (9-430) - FRONT SPLASH SHIELDS, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

1956724C1

SUPPORT

- right (9.5 x 24 and 11.2 x 24 tires)

1шт.

1

90007C1

HOLDER

SUPPORT - right (12.4 x 24 tire)

1шт.

1

1956725C1

SUPPORT

- left (9.5 x 24 and 11.2 x 24 tires)

1шт.

1

90008C1

HOLDER

SUPPORT - left (12.4 x 24 tire)

1шт.

2

30071R1

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

3

3141764R1

WASHER

- hardened, 17.5 x 32 x 6 mm

8шт.

4

30170R1

NUT,M16, Cl 10

- hex, 16 mm, class 10

4шт.

5

89984C1

SUPPORT

BRACKET - right

1шт.

5

89987C1

SUPPORT

BRACKET - left

1шт.

6

30405R1

BOLT,Hex, M14 x 2 x 40mm, Cl 10.9, Full Thd

- hex, M14 x 40 mm, class 10.9

6шт.

7

30408R1

WASHER,M12 x 28.5 x 3, HT

- flat, 15.3 x 28 x 3 mm

6шт.

8

1328740C1

SUPPORT

2шт.

9

30071R1

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

4шт.

10

3141764R1

WASHER

- hardened, 17.5 x 32 x 6 mm

4шт.

11

89990C1

FENDER

- rubber (9.5 x 24 tire)

2шт.

11

89992C1

FENDER

- rubber (11.2 x 24 tire)

2шт.

11

90002C1

FENDER

- rubber (12.4 x 24 tire)

2шт.

12

89991C1

BAR

- (9.5 x 24 and 11.2 x 24 tire)

4шт.

12

90001C1

BAR

- (12.4 x 24 tire)

4шт.

13

905159R1

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 4.6

BOLT - square neck, 8 mm x 25 mm

8шт.

14

3058250R1

WASHER

- 8.5 x 20 x 1.5 mm, flat

8шт.

15

717457R1

NUT,M8 x 1.25, Thin

NUT - hex, 8 mm

8шт.
