Запчасти Case IH 885 (9-428) - BOLSTER, FRONT, FABRICATED (09) - CHASSIS/ATTACHMENTS

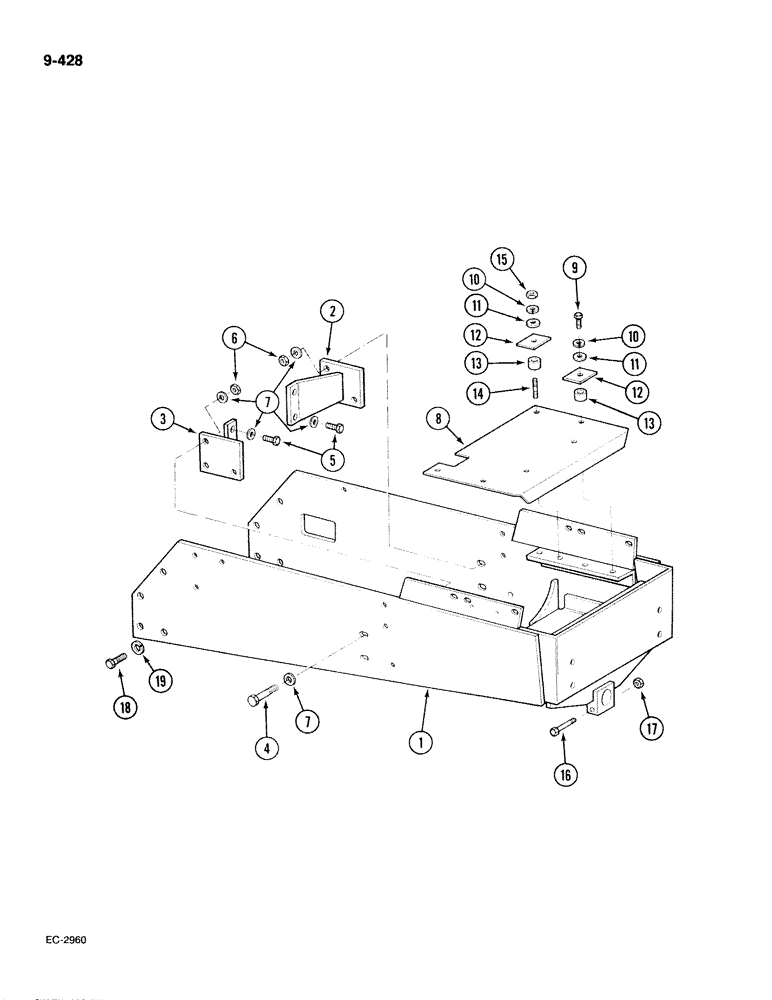

Схема запчастей Case IH 885 - (9-428) - BOLSTER, FRONT, FABRICATED (09) - CHASSIS/ATTACHMENTS
5
2
11
6
13
10
9
13
17
12
14
10
15
4
8
7
16
19
11
1
7
3
18
12

Артикул

Название

Примечание

Количество

1

99679C1

FRAME

- fabricated, Start Serial: 18001

1шт.

1

1269826C1

FRAME

- fabricated, Serial Range: -18001

1шт.

2

70131C1

SUPPORT

- left, engine front

1шт.

3

70132C1

SUPPORT

- right, engine front

1шт.

4

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

6шт.

5

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

4шт.

6

25528R1

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

6шт.

7

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- hardened flat, 0.656 x 1.312 x 0.095 inch

16шт.

8

99684C1

SEAL

SHEET - air seal, Start Serial: 18001

1шт.

8

1282790C1

SHEET

- air seal, Serial Range: -18001

1шт.

9

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, grade 5

2шт.

10

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

12

47240D

PAD

- radiator

4шт.

13

99427C1

SPACER

BUSHING

4шт.

14

99688C1

STUD

- 3/8 inch NC x 47 mm

2шт.

15

120377

NUT,3/8" - 16, Gr 5

2шт.

16

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

- hex, 1/2 NC x 3-3/4 inch, grade 5, ZND

1шт.

17

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, grade 5

8шт.

19

116124

LOCK WASHER,3/4"

3/4"

8шт.

Выбрано товаров: 21
