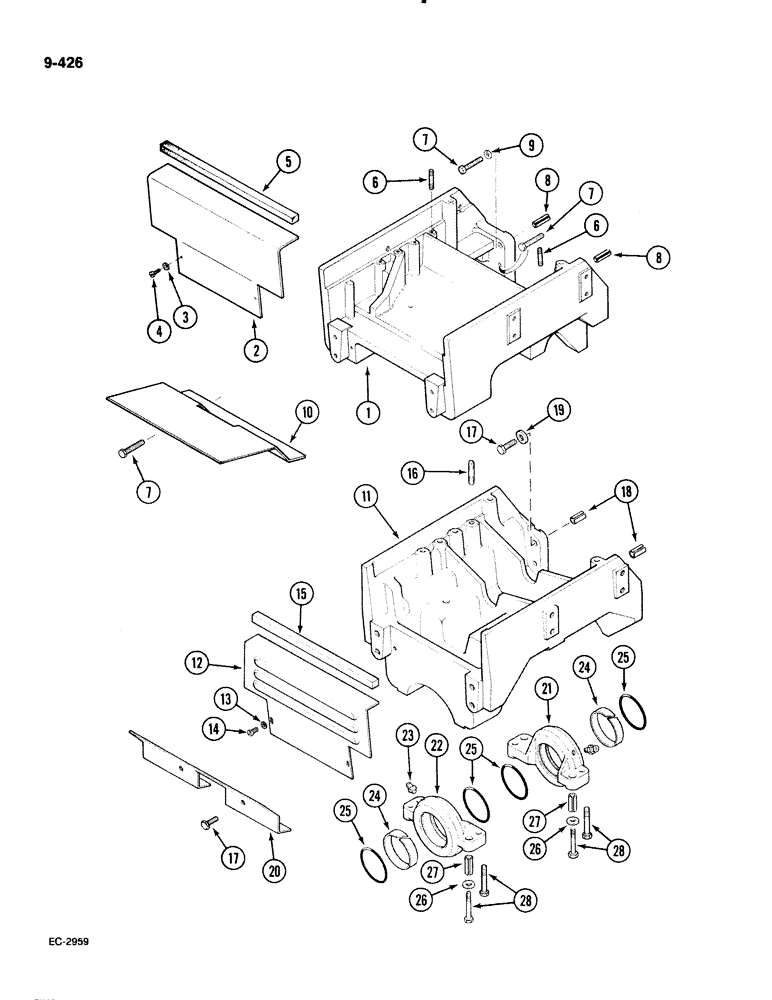

Запчасти Case IH 885 (9-426) - BOLSTERS, FRONT, CAST (09) - CHASSIS/ATTACHMENTS

1

94178C1

AXLE SUPPORT

BOLSTER - cast, front, standard, 2 wheel drive (Will not accept front mounted pump)

1шт.

1

94178C2

AXLE SUPPORT

BOLSTER - cast, front, standard, 2 wheel drive (Will accept front mounted pump)

1шт.

1

94179C1

SUPPORT

BOLSTER - cast, front, high clearance, 2 wheel drive

1шт.

2

94334C1

COVER

- bolster, front, 2 wheel drive

1шт.

Dimension from bottom of cover to top, by the 90 degree bend, is 221.6 mm or 8.72".

1шт.

3

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 2 wheel drive 5/16"

2шт.

4

3118624R1

SCREW

- hex washer head, 5/16 inch NC, 2 wheel drive

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Cut from 73212C2), 2 wheel drive

1шт.

5

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll, 2 wheel drive

1шт.

6

99688C1

STUD

- 3/8 inch NC x 47 mm, 2 wheel drive

2шт.

7

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

2WD Hex, 5/8"-11 x 2 3/4", G8

8шт.

8

99499C1

PIN

- spring, 2 wheel drive

2шт.

9

82744C1

WASHER

- hardened, 2 wheel drive

2шт.

10

99512C2

PROTECTION PLATE

BAFFLE - bolster, air, 2 wheel drive

1шт.

10

534811R1

PROTECTION PLATE

BAFFLE - bolster, air (Adjustable swept back front axle), 2 wheel drive

1шт.

11

94180C1

AXLE SUPPORT

BOLSTER - cast, front, 4 wheel drive

1шт.

12

94366C1

COVER

- bolster, front, 4 wheel drive

1шт.

Dimension from bottom of cover to top, by the 90 degree bend, is 322 mm or 12.67". Some 2 wheel drive tractors with cast bolster report having 94366C1 installed on them in production.

1шт.

13

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 4 wheel drive 5/16"

2шт.

14

3118624R1

SCREW

- hex washer head, 5/16 inch NC, 4 wheel drive

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - front cover, 20.5 inch (Cut from seal 73212C2), 4 wheel drive

1шт.

15

73212C2

GASKET

SEAL - foam, bulk length, 4 foot roll, 4 wheel drive

1шт.

16

99688C1

STUD

- 3/8 inch NC x 47 mm, 4 wheel drive

2шт.

17

24878R1

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 8

4WD Hex, 5/8"-11 x 2 3/4", G8

8шт.

18

99499C1

PIN

- spring, 4 wheel drive

2шт.

19

82744C1

WASHER

- hardened, 4 wheel drive

2шт.

20

99513C1

BAFFLE

- bolster, air, 4 wheel drive

1шт.

21

82014C3

BEARING

BRACKET - axle, rear, 4 wheel drive

1шт.

22

82015C3

BEARING

BRACKET - axle, front, 4 wheel drive

1шт.

23

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, , 4WD M10 x 1

2шт.

24

82011C1

BUSHING

4 wheel drive

2шт.

25

82091C1

O-RING,5mm Thk x 120mm ID, 88 Duro

4 wheel drive

2шт.

25

90219C1

O-RING,5mm Thk x 120mm ID, 88 Duro

0-RING - special, 4 wheel drive

2шт.

26

3141764R1

WASHER

- hardened, 17.5 x 32 x 6 mm, 4 wheel drive

8шт.

27

905679R1

LOCK PIN,M21 x 36, Slotted

PIN - slotted spring, 21 x 36 mm, 4 wheel drive

4шт.

28

905636R1

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

4 wheel drive Hex, M16 x 80, 10.9

8шт.
