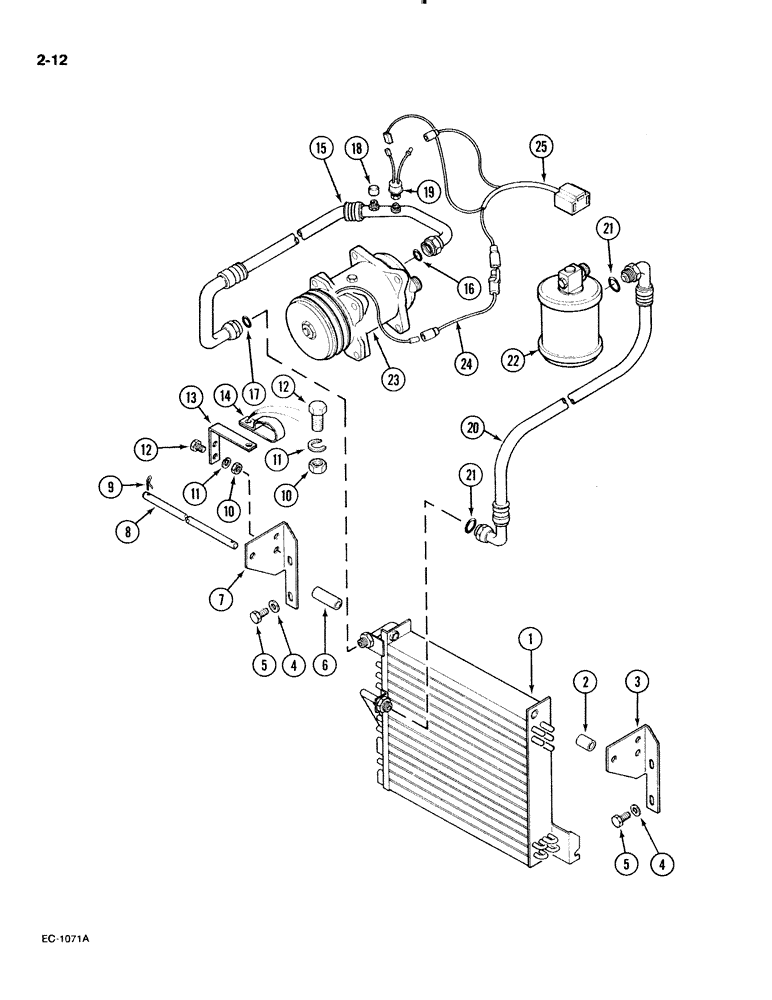

Запчасти Case IH 885 (2-012) - AIR CONDITIONING, CONDENSER AND CONNECTIONS (02) - ENGINE

1

84666C2

CONDENSER

1шт.

1

1536992C1

CAPACITOR

CONDENSER new

1шт.

1536993C1

THUMB SCREW,Winged, 5/16" - 18 x 12.70mm

winged

1шт.

2

84709C1

SPACER

- condenser locating

1шт.

2

PO23796

SPACER,1/4" Pipe x 1 1/16"

Optional to P/N 84709C1 1/4" Pipe x 1 1/16"

1шт.

3

84511C2

BRACKET

- condenser mounting

1шт.

4

95-11034

WASHER,1/4"

- plain, 0.344 x 0.688 x 0.051 inch

4шт.

5

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

6

84710C1

SPACER

- condenser locating

1шт.

6

PO22778

SPACER,1/4" Pipe x 2"

- 1/4 inch pipe x 2 inch, Optional to 84710C1

1шт.

7

84511C2

BRACKET

- condenser mounting

1шт.

8

84674C1

ROD

1шт.

9

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

10

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

25752R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4"-20 NC x 1/2", grade 8

3шт.

13

1330749C2

SUPPORT

1шт.

14

1280259C1

CLIP

- hose

1шт.

15

98012C2

HOSE

- compressor to condenser, Includes: Ref. 16 - 18 and sealing cap, Serial Range: optional-118188C1

1шт.

16

371544R1

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

- 9/16 x 11/16 inch, class 5

1шт.

17

375271R1

O-RING,0.426" ID x 0.07" Width

- 7/16 x 9/16 inch, class 5

1шт.

18

118188C1

CAP

- sealing

1шт.

3405671R1

CAP

- sealing, Serial Range: optional-118188C1

1шт.

19

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

20

98013C3

HOSE

- condenser to receiver, Includes: Ref. 21

1шт.

21

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

2шт.

22

118304C1

RESERVOIR

RECEIVER - dryer, See Figure 2-010

1шт.

97205C1

KIT

- service, compressor, Includes Ref. 23 and 24

1шт.

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97205C1

1шт.

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

23

97204C1

COMPRESSOR

- freon, See Figure 2-014

1шт.

97204C1R

COMPRESSOR

Reman compressor

1шт.

97204C1C

COMPRESSOR

Return Number

1шт.

23

1977959C1R

REMAN-A/C COMPRESSOR

Reman For New PN 97204C1

1шт.

23

1977959C1C

CORE-A/C COMPRESSOR

Return Number

1шт.

24

1964563C1

CABLE

- A/C compressor adaptor

1шт.

25

91880C2

HARNESS

A/C front, compressor clutch/high pressure switch to cab harness

1шт.

25

1536629C1

HARNESS

A/C front, new, compressor clutch/high pressure switch to cab harness

1шт.
