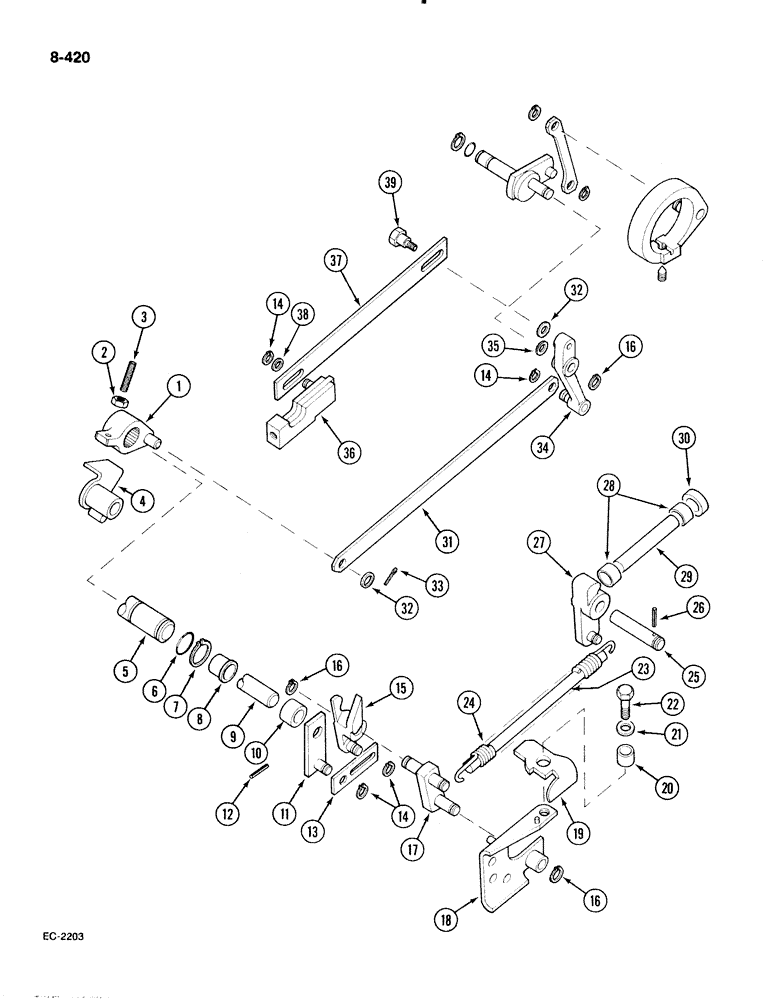

Запчасти Case IH 885 (8-420) - DRAFT CONTROL LINKAGE IN REAR FRAME (08) - HYDRAULICS

1

400017R1

LEVER ASSY.

LEVER - slow motion actuating

1шт.

2

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

3

1502037C1

SET SCREW

SCREW - set, hex, 1/4 NC x 1-1/2 inch

1шт.

4

399889R1

ARM ASSY.

ARM - draft retarding, See Figure 8-410

1шт.

5

94167C1

SHAFT

- position control, without cab, See Figure 8-414

1шт.

5

1500628C1

SHAFT ASSY.

SHAFT - position control, with cab, See Figure 8-418

1шт.

6

574069R1

O-RING,0.750" ID x .062"

- 3/4 x 7/8 inch, class 5

1шт.

7

303004R1

SNAP RING,#78, Ext

1шт.

8

374940R1

NYLON BEARING

BEARING - control lever shaft

1шт.

9

94168C1

SHAFT

- load control, without cab, See Figure 8-414

1шт.

9

1500632C1

SHAFT ASSY.

SHAFT - load control, with cab, See Figure 8-418

1шт.

10

527927R1

SPACER

- load control shaft

1шт.

11

534728R1

LEVER

- draft sensitivity control

1шт.

12

364577R1

PIN,5/32" x 3/4", Coiled

1шт.

13

400044R1

LINK

-, Serial Range: trigger-quadrant

1шт.

14

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

3шт.

15

400042R2

LEVER ASSY.

LEVER - draft control trigger

1шт.

16

110668R1

CIRCLIP,#37, .300" Dia, E-Type

Ring, Retaining, #37, .300" Dia, E-Type

3шт.

17

400039R1

PLATE ASSY.

PLATE - eccentric

1шт.

18

400026R2

SUPPORT

BRACKET - switch lever, See Figure 8-406

1шт.

19

400033R1

LEVER

- hydraulic switch, Includes: Ref. 20

1шт.

20

532468R1

SPACER

- safety switch

1шт.

21

532467R1

WASHER

- safety switch

1шт.

22

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

1шт.

23

400024R2

BAR

- sensing beam

1шт.

24

400025R1

SPRING

- sensing beam

1шт.

25

400038R1

PIN

- sensing lever

1шт.

26

20092R1

PIN,3/16" x 1 3/8", Coiled

1шт.

27

400021R1

LINK ASSY.

LINK - draft control

1шт.

28

273279R91

BUSHING

BEARING - sensing shaft, See Figure 8-408

2шт.

29

400020R1

ROD

- draft control

1шт.

30

376022R91

OIL SEAL

SEAL - oil, sensing shaft

1шт.

30

530092R91

OIL SEAL

SEAL - oil, sensing shaft, Serial Range: (Optional-376022R91)

1шт.

31

400016R1

BAR

- walking beam to quadrant link

1шт.

32

95-11034

WASHER,1/4"

- plain, 0.344 x 0.688 x 0.051 inch

2шт.

33

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

34

400014R1

LEVER ASSY.

LEVER - follow up walking beam

1шт.

35

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

1шт.

36

527617R1

ARM ASSY.

ARM - main valve, See Figure 8-410

1шт.

37

400019R1

LINK

- walking, Serial Range: beam-valve

1шт.

38

Q3817

WASHER

- flat, 0.344 x 0.656 x 0.021 inch

1шт.

39

376041R1

SCREW,Shldr, Hex, 1/4" - 20 x 0.70", W/ Nylon Pellet

Shoulder

1шт.
