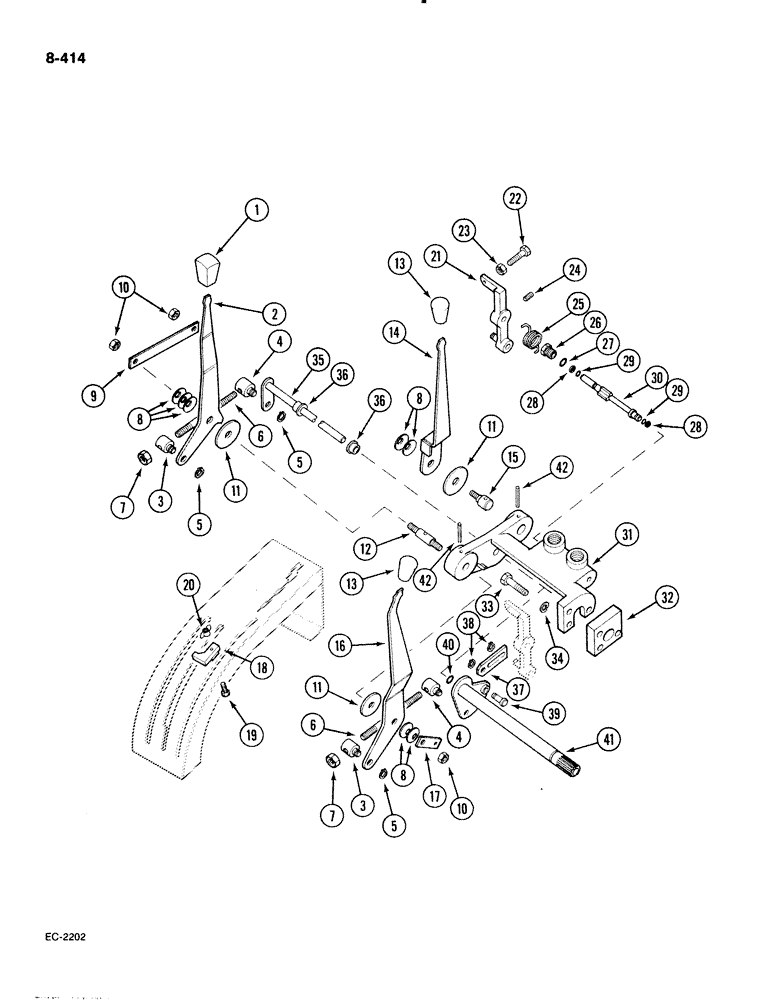

Запчасти Case IH 885 (8-414) - DRAFT CONTROL LEVERS, WITHOUT CAB (08) - HYDRAULICS

1

400068R1

BUTTON

GRIP - load control

1шт.

2

94163C1

LEVER ASSY.

LEVER - load control

1шт.

3

400086R1

PIN

- connecting, hitch link front

2шт.

4

400087R1

PIN

- connecting, hitch link rear

2шт.

5

204502R1

SNAP RING,#43, Ext

4шт.

6

400085R1

STUD

- connecting rod, hitch link

2шт.

7

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

536847R1

BELLEVILLE WASHER

WASHER, Belleville

7шт.

9

536849R1

PLATE

- outer retaining

1шт.

10

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

3шт.

11

380421R1

FRICTION WASHER

WASHER - friction, sensitivity control

3шт.

12

400081R1

BOLT,3/8" - 16 x 72.90mm, HT

- Hitch control lever pivot

1шт.

13

400072R1

BUTTON

GRIP - position and speed control

2шт.

14

94165C1

LEVER ASSY.

LEVER - flow control adjusting

1шт.

15

527919R1

BOLT

BOLT - Flow lever pivot

1шт.

16

94164C1

LEVER ASSY.

LEVER - flow control adjusting

1шт.

17

537600R1

PLATE

- inner retaining

1шт.

18

3118646R1

STOP

- position control

1шт.

19

28000R1

BOLT

BOLT - projection weld, 1/4 NC x 3/4 inch

1шт.

20

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

1шт.

21

529353R1

ARM ASSY.

ARM - flow control

1шт.

22

1502037C1

SET SCREW

SCREW - set, hex, 1/4 NC x 1-1/2 inch

1шт.

23

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

24

65461C1

SET SCREW

SCREW - 1/4 inch NF, with nylon patch insert

1шт.

25

529352R1

SPRING

- return

1шт.

26

529356R1

PLUG

- variable flow control valve

1шт.

27

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

28

529355R1

WASHER

- back-up

2шт.

29

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- 3/16 x 5/16 inch, class 5

2шт.

30

529351R1

SPOOL

- variable flow control valve

1шт.

31

529349R3

SUPPORT

- hitch control shaft

1шт.

32

3129761R1

SPACER

1шт.

33

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, grade 5

3шт.

34

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

35

94168C1

SHAFT

- load control

1шт.

36

374940R1

NYLON BEARING

BEARING - control lever shaft

2шт.

37

527926R1

LINK

- flow control over-ride

1шт.

38

104977R1

SNAP RING,#X31, .243" Dia, E-Type

RING, RETAINING, #X31, .243" Dia, E-Type

2шт.

39

527923R1

PIN

- link arm

1шт.

40

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

- 1/2 x 11/16 inch, class 5

1шт.

41

94167C1

SHAFT

- position control, See Figure 8-420

1шт.

42

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

2шт.
