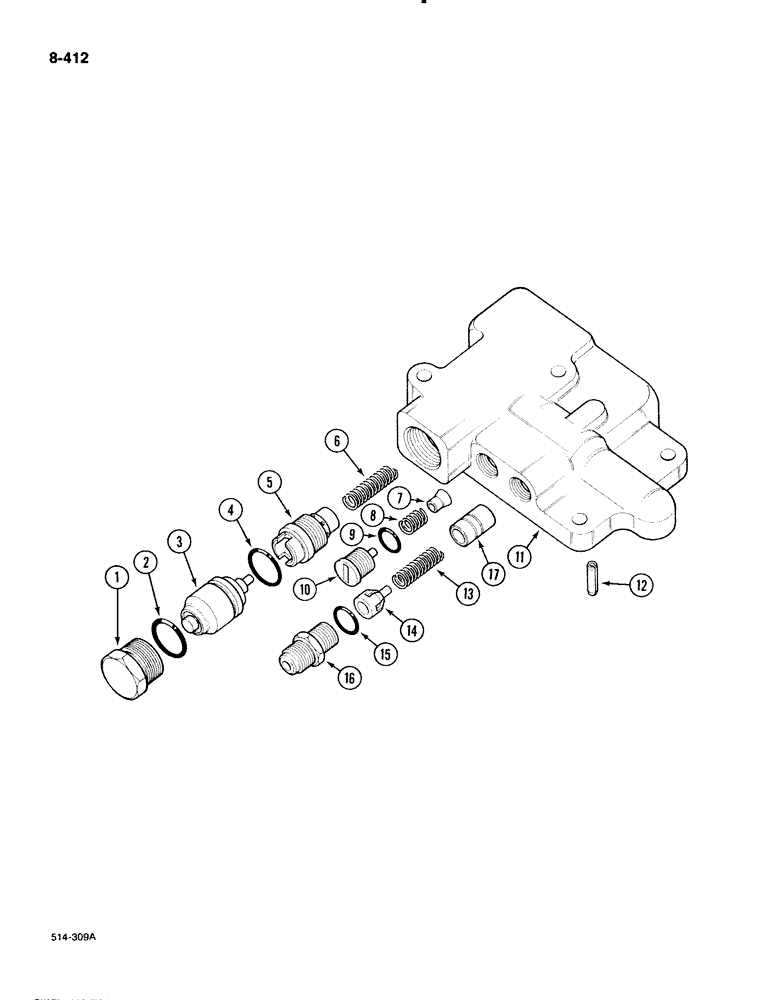

Запчасти Case IH 885 (8-412) - UNLOADING AND FLOW CONTROL VALVE (08) - HYDRAULICS

59098C93

VALVE

- unloading and flow control, Includes: Ref. 1 - 17

1шт.

1

545494R2

PLUG

- unloading valve

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1 inch OD tube, class 6

1шт.

3

376762R11

PISTON ASSY.

PISTON - unloading valve

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

- unloading valve

1шт.

6

530141R1

SPRING

- unloading

1шт.

7

389587R3

CHECK VALVE

VALVE - check poppet

1шт.

8

535547R1

SPRING

- check poppet

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

10

399851R1

PLUG

- check valve

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

- flow control valve

1шт.

14

58367C1

GUIDE

- spring

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL

1шт.
