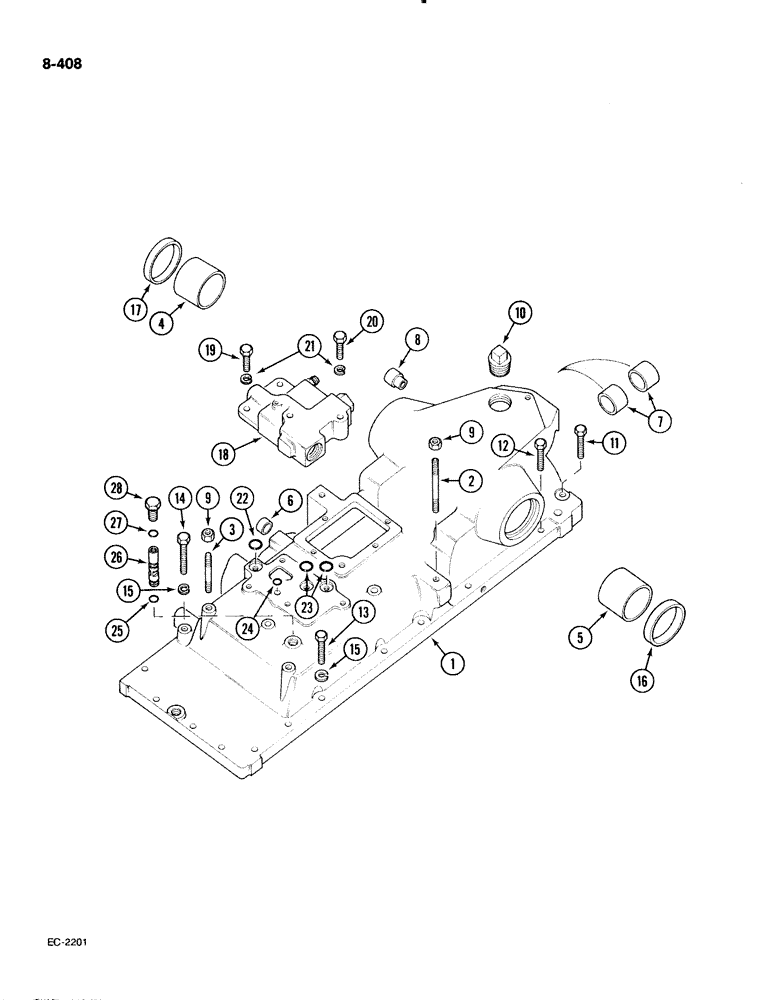

Запчасти Case IH 885 (8-408) - DRAFT CONTROL HYDRAULIC HOUSING (08) - HYDRAULICS

1

406003R32

HOUSING ASSY.

HOUSING - hydraulic unit, Includes: Ref. 2 - 8

1шт.

2

531143R2

STUD

- top cover, long

2шт.

3

531144R1

STUD

- top cover, short

2шт.

4

399992R1

BUSHING

- rockshaft, right

1шт.

4

1500447C1

BUSHING

- rockshaft, right, oversize

1шт.

5

527749R1

BUSHING,63.52mm ID x 66.67mm OD x 50.8mm L

- rockshaft left

1шт.

5

1500532C1

BUSHING

- rockshaft left, oversize

1шт.

6

376011R1

BUSHING

- quadrant shaft

1шт.

7

273279R91

BUSHING

BEARING - sensing shaft

2шт.

8

399993R1

BUSHING

- eccentric shaft

1шт.

9

120377

NUT,3/8" - 16, Gr 5

4шт.

10

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - automotive square, 1-1/4 inch NPTF, See Figure 6-262

1шт.

11

413-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

BOLT - hex, 1/2 NC x 1-7/8 inch, grade 5

4шт.

12

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch, grade 5

2шт.

13

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex, 3/8 NC x 1-7/8 inch, grade 5

11шт.

14

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch, grade 5

2шт.

14

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

16

380212R91

OIL SEAL

SEAL - oil rockshaft left

1шт.

17

380770R91

OIL SEAL

SEAL - oil rockshaft, right

1шт.

17

530096R92

OIL SEAL

SEAL - oil rockshaft, right, Serial Range: (Optional-380770R91)

1шт.

18

59098C93

VALVE

- unloading and flow control, See Figure 8-412

1шт.

19

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

20

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

hex, 3/8 NC x 2-1/4 inch, grade 5

2шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 x 7/8 inch, class 6

1шт.

23

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- 9/16 x 3/4 inch, class 6

2шт.

24

59099C1

O-RING,2.39mm Thk x 6.6mm ID

1шт.

25

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

- 3/8 x 9/16 inch, class 6

1шт.

26

400095R92

VALVE, CUSHION

VALVE - safety, 2500 psi

1шт.

27

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

28

536855R1

PLUG

- O-ring boss, 3/4 inch NF

1шт.
