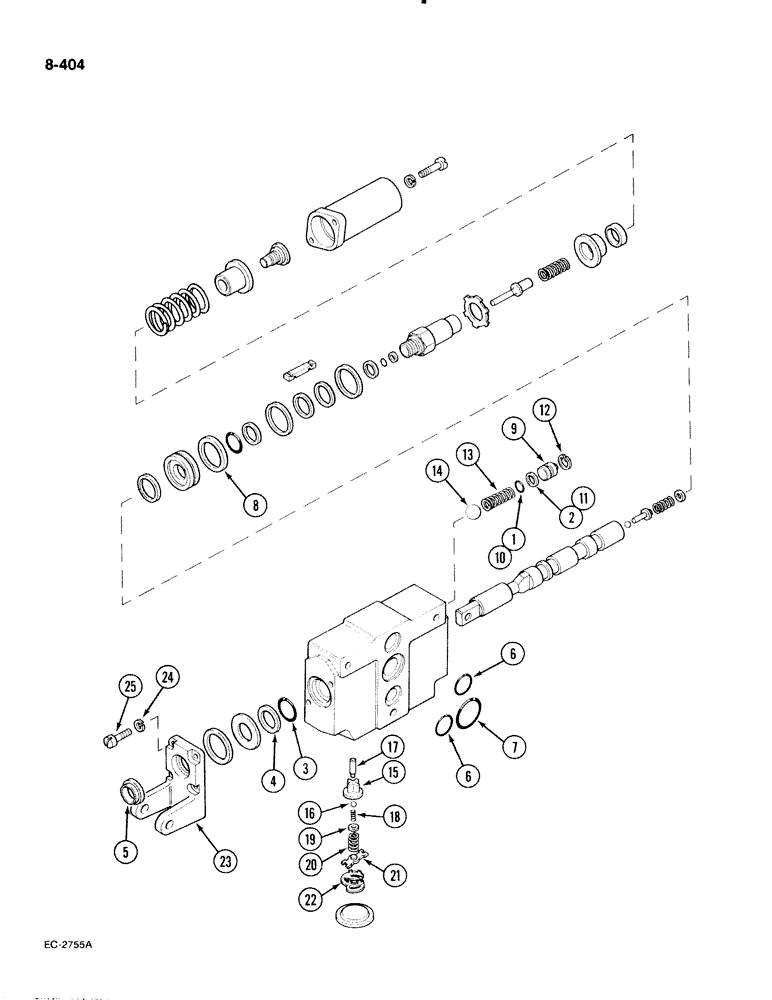

Запчасти Case IH 885 (8-404) - AUXILIARY VALVES, BOSCH (08) - HYDRAULICS

1287379C91

VALVE

- double acting, without check valve, Includes: seals service kit and Ref. 1 thru 22

1шт.

1287384C91

VALVE

- double acting, with check valve, Includes: seals service kit and Ref. 1thru 22

1шт.

1328394C1

SEAL KIT

KIT - service, seals, Includes: Ref. 1 thru 8

1шт.

1

NSS

NOT SOLD SEPARAT

O-RING - 11 x 2mm

2шт.

2

NSS

NOT SOLD SEPARAT

RING - back up

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 18 x 3mm

1шт.

4

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

6

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 x 2.5 mm

2шт.

7

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 x 2.5 mm

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - flat

1шт.

1958016C1

REPAIR KIT

KIT - service, check valve, Includes: Ref. 9 thru 14

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - 11 x 2mm

1шт.

11

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

13

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

14

NSS

NOT SOLD SEPARAT

BALL

1шт.

1958017C1

PACKAGE, REPAIR

KIT - repair, check valve (For 1287384C91), Includes: Ref. 15 thru 22

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - valve

1шт.

16

NSS

NOT SOLD SEPARAT

BALL

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - adjusting

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

19

NSS

NOT SOLD SEPARAT

SHIM

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - compression

1шт.

21

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

22

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

23

1958026C1

BRACKET

- auxiliary valve

1шт.

24

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

25

1958025C1

SCREW

- fillister, M6 x 12 mm, class 5.8

2шт.
