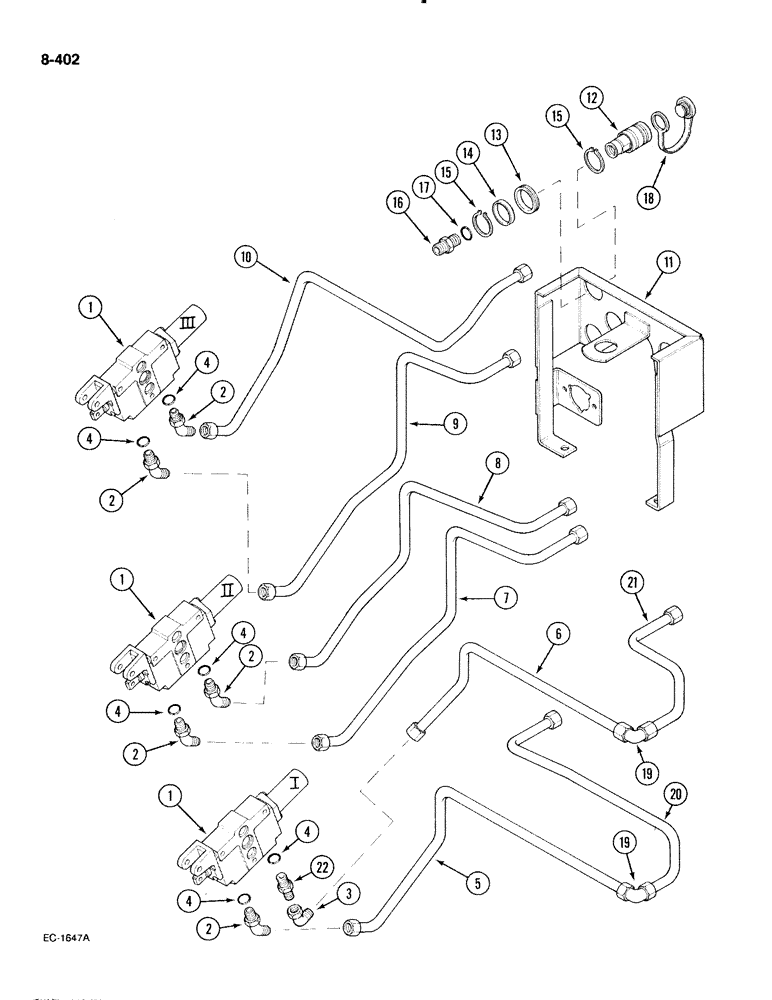

Запчасти Case IH 885 (8-402) - AUXILIARY VALVES, COUPLINGS AND PIPES, WITH CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

- double acting, without check valve, See Figure 8-404

1шт.

1

1287384C91

VALVE

- double acting, with check valve, See Figure 8-404

1шт.

2

93636C1

ELBOW

- 45 degree, 5/8 inch OD tube x M22

1шт.

3

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, swivel, 5/8 inch OD tube

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

1шт.

5

99637C1

PIPE ASSY.

TUBE - 1st bank front, Serial Range: port-coupling

1шт.

6

99639C3

TUBE

- 1st bank rear, Serial Range: port-coupling

1шт.

7

99640C1

PIPE

TUBE - 2nd bank front, Serial Range: port-coupling

1шт.

8

99641C1

PIPE ASSY.

TUBE - 2nd bank rear, Serial Range: port-coupling

1шт.

9

99635C1

PIPE ASSY.

TUBE - 3rd bank front, Serial Range: port-coupling

1шт.

10

99643C1

PIPE ASSY.

TUBE - 3rd bank rear, Serial Range: port-coupling

1шт.

11

99728C1

SUPPORT

- couplings

1шт.

12

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

1шт.

13

A139805

RETAINER

- coupling

1шт.

14

94177C1

SPACER

- coupling

1шт.

15

A137976

SNAP RING,#150, 1.408", Ext

RING - snap

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short, 5/8 inch OD tube

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

1шт.

18

K950297

PLUG

- dust, coupling

1шт.

19

9402944

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- 90 degree, 5/8 inch OD tube

2шт.

20

1500195C1

HYD TUBE,0.625" OD, 438, 186 mm Length

TUBE - coupling to 1st bank front port

1шт.

21

1500198C1

PIPE

TUBE - coupling to 1st bank rear port

1шт.

22

86165C1

FITTING

UNION - straight, 5/8 inch OD tube x M22

1шт.
