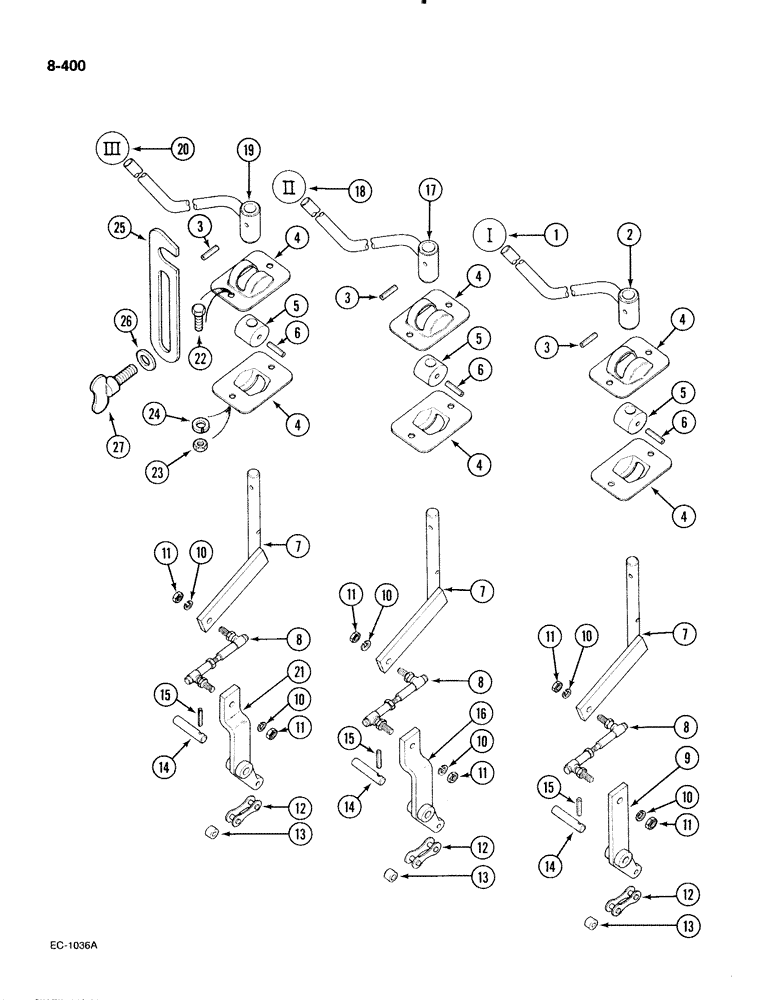

Запчасти Case IH 885 (8-400) - AUXILIARY VALVE CONTROLS, BOSCH, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

3123663R1

BUTTON

KNOB - ball (Black), 1st bank valve

1шт.

2

1500160C1

LEVER ASSY.

LEVER - 1st bank valve

1шт.

3

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

4

3226334R2

CLAMP

CLAMP

1шт.

5

3229389R1

BUSHING

PAD - pivot block

1шт.

6

1500163C1

SPLIT PIN/SAFETY PIN

PIN - coiled spring, 5 x 22 mm

1шт.

7

1500168C1

LEVER ASSY.

LEVER - bellcrank

1шт.

8

80333C91

JOINT

- ball, M6

1шт.

9

94238C1

LEVER

- bellcrank, No. 1 auxiliary valve

1шт.

10

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

11

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

12

1310D

LINK

- connecting, No. 50

1шт.

13

94274C1

NYLON BEARING,5.15mm ID x 8.04mm OD x 8mm L

BEARING - auxiliary valve spool link

1шт.

14

99609C1

PIN

- straight, 3/8 x 1.45 inch

1шт.

15

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

16

94239C1

LEVER

- bellcrank, No. 2 auxiliary valve

1шт.

17

1500164C1

LEVER

- 2nd bank valve

1шт.

18

99875C1

BUTTON

KNOB - ball (Green), 2nd bank valve

1шт.

19

1500166C1

LEVER ASSY.

LEVER - 3rd bank valve

1шт.

20

1500159C1

KNOB

- ball (Blue), 3rd bank valve

1шт.

21

94240C1

LEVER

- bellcrank, No. 3 auxiliary valve

1шт.

22

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

1шт.

23

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

24

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

25

99434C1

PLATE

- lockout, auxiliary valve lever, See Figure 9-486

1шт.

26

120388

- flat, 0.438 x 1.00 x 0.064 inch

1шт.

27

99972C1

SCREW,3/8" - 16 x 1 3/4"

- wing, adjusting

1шт.
