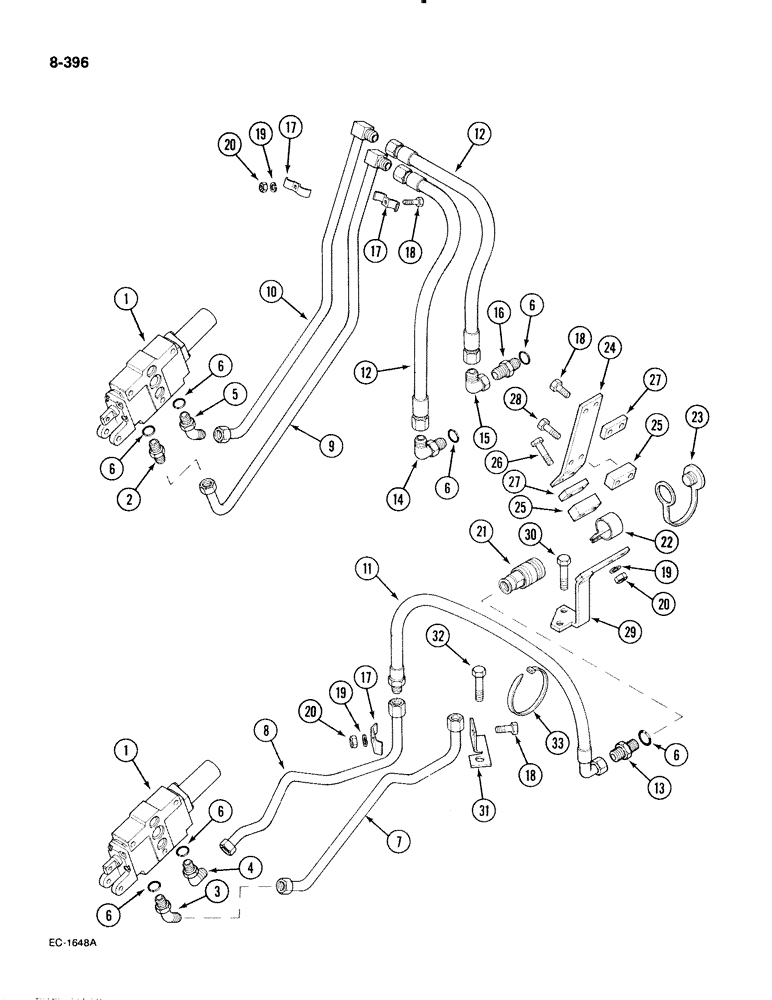

Запчасти Case IH 885 (8-396) - AUXILIARY VALVE COUPLINGS AND PIPES, WITHOUT CAB, FIRST AND SECOND BANK, PIN 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

- double acting, without check valve, 1st or 2nd bank valve, see Figure 8-404

1шт.

1

1287384C91

VALVE

- double acting, with check valve, 1st or 2nd bank valve, see Figure 8-404

1шт.

2

86165C1

FITTING

UNION - straight, 5/8 inch OD tube x M22 (2nd bank)

1шт.

3

93636C1

ELBOW

- 45 degree, 5/8 inch OD tube x M22 (1st bank)

1шт.

4

86703C1

ELBOW

- 90 degree, 5/8 inch OD tube x M22 (1st bank)

1шт.

5

93636C1

ELBOW

- 45 degree, 5/8 inch OD tube x M22 (2nd bank)

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

1шт.

7

99649C1

TUBE ASSY.

TUBE - lower, 1st bank front outlet

1шт.

8

99648C1

TUBE ASSY.

TUBE - raise, 1st bank rear outlet

1шт.

9

99651C1

TUBE ASSY.

TUBE - raise, 2nd bank front outlet

1шт.

10

99650C1

TUBE ASSY.

TUBE - lower, 2nd bank rear outlet

1шт.

11

1975234C1

HOSE

- 1st bank outlet to coupling (Replaces 535302R1)

2шт.

12

3129556R1

HOSE

- rear outlet

2шт.

13

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

REDUCER - 5/8 to 1/2 inch OD tube (Used with 1975234C1)

2шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 5/8 inch OD tube (2nd bank)

1шт.

15

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, swivel, 5/8 inch OD tube (2nd bank)

1шт.

16

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short, 5/8 inch OD tube (2nd bank)

1шт.

17

535301R1

CLAMP

- rear outlet tube

1шт.

18

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

1шт.

19

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

20

120376

NUT,5/16"-18, G5

1шт.

21

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

1шт.

22

3114106R1

CLAMP

- coupling

1шт.

23

373220R1

PLUG

- dust, breakaway coupling

1шт.

24

3129558R1

PLATE

- coupling (2nd bank)

1шт.

25

3129557R1

SPACER

- coupling (2nd bank)

1шт.

26

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch, grade 5 (2nd bank)

2шт.

26

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5 (1st bank only fit)

2шт.

27

1500503C1

SPACER

- coupling (2nd bank)

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, grade 5 (2nd bank)

2шт.

29

535298R1

SUPPORT

BRACKET - mounting, rear manifold

1шт.

30

179890

LATCH

- hex, 1/2 NC x 2-1/4 inch, grade 5

2шт.

31

535300R1

BRACKET

- rear outlet tubes

1шт.

32

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- hex, 1/2 NC x 2 inch, grade 5

1шт.

33

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

1шт.
