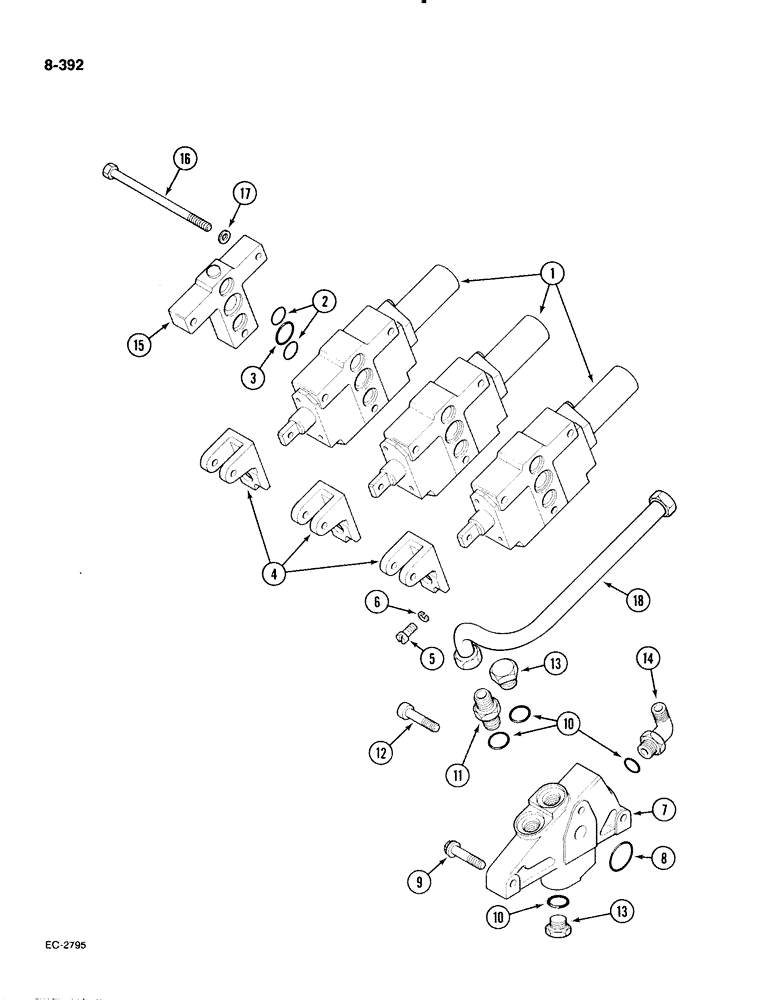

Запчасти Case IH 885 (8-392) - AUXILIARY VALVES, WITH CAB, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

1

1287379C91

VALVE

- double acting, without check valve, 1st, 2nd or 3rd bank valve, see Figure 8-404, Includes: Ref. 2 and 3

1шт.

1

1287384C91

VALVE

- double acting, with check valve, 1st, 2nd or 3rd bank valve, see Figure 8-404, Includes: Ref. 2 and 3

1шт.

2

1328382C1

O-RING,2.5mm Thk x 18mm ID

- 18 x 2.5 mm

2шт.

3

1328393C1

O-RING,2.5mm Thk x 26mm ID

- 26 x 2.5 mm

1шт.

4

1958026C1

BRACKET

- auxiliary valve

1шт.

5

1958025C1

SCREW

- fillister, M6 x 12 mm, class 5.8

1шт.

6

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

7

94070C1

PLATE

BLOCK - control valve transfer

1шт.

This is a Bosch valve and power beyond is already built into this control valve transfer block.

1шт.

8

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

- 1-1/4 x 3/16 inch, class 5

1шт.

9

347756R1

12 PT SCREW,Flg, 3/8"-16 x 1 3/4"

SCREW - 12 point flanged, 3/8 NC x 1-3/4 inch

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

4шт.

11

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short, 5/8 inch OD tube

1шт.

12

NLS

NO LONGER SERVICED

- cap, hex socket, 3/8 NC x 1-3/4 inch

1шт.

13

9410360

PLUG

- O-ring boss, 5/8 inch NF

2шт.

14

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 5/8 inch OD tube

1шт.

15

89464C91

COVER

- valve end

1шт.

16

31291R1

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, M8 x 80 mm, class 8.8 (1 valve mounting)

3шт.

16

931628R1

BOLT,Hex, M8 x 1.25 x 120mm, Cl 8.8

- hex, M8 x 120 mm, class 8.8 (2 valve mounting)

3шт.

16

31252R1

BOLT,Hex, M8 x 1.25 x 160mm, Cl 8.8

- hex, M8 x 160 mm, class 8.8 (3 valve mounting)

3шт.

17

934309R1

LOCK WASHER,M8

WASHER - lock, M8

3шт.

18

99530C1

PIPE ASSY.

TUBE - auxiliary valve return

1шт.
