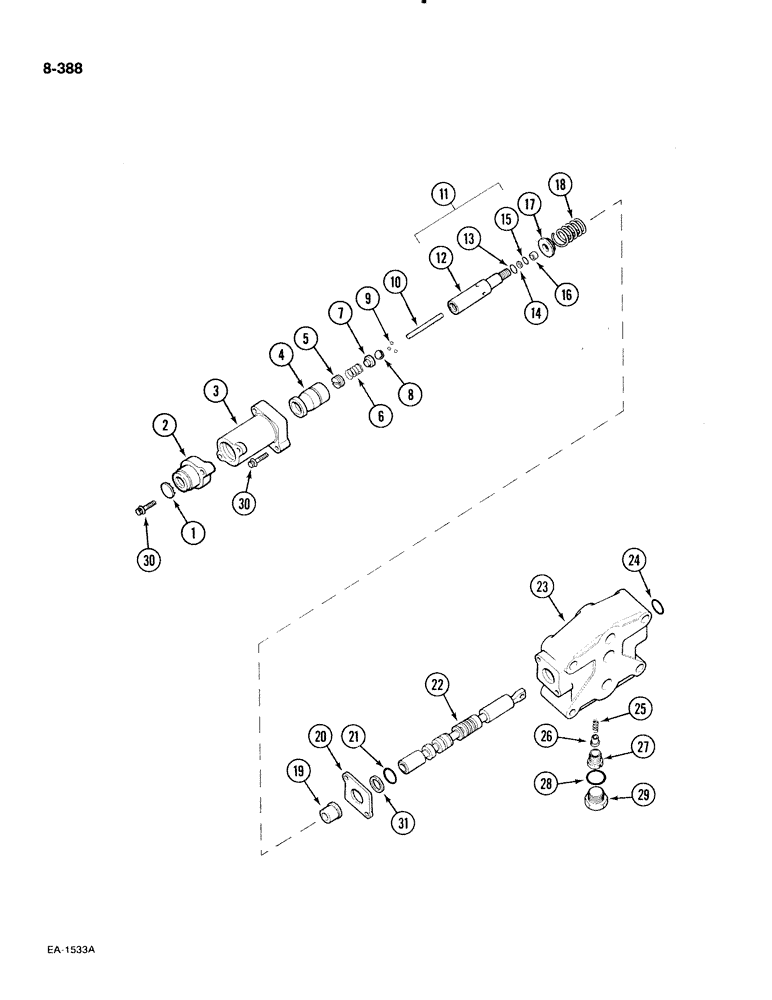

Запчасти Case IH 885 (8-388) - AUXILIARY HYDRAULIC VALVE, PRIOR TO P.I.N. 18001 (08) - HYDRAULICS

62464C94

VALVE

- control, open center, Includes: Ref. 1 - 31

1шт.

1

432539

HOLE PLUG BUTTON,7/16"

PLUG - button, 7/16 inch

1шт.

2

62482C1

CAP

- retaining

1шт.

3

62478C1

HOUSING

- sleeve

1шт.

4

128034C1

SLEEVE

- position control

1шт.

5

377803R1

PLUG

- spring, retaining

1шт.

6

72204C1

SPRING - detent

1шт.

7

62480C1

WASHER

- detent actuating ball

1шт.

8

17013R1

BALL,13/32" Dia

1шт.

9

17007R1

BALL

- chrome, 7/32 inch (Detent)

3шт.

10

529905R1

PISTON

- unlatching

1шт.

11

62474C91

BODY

- actuating assembly, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

BODY

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD inch tube, class 6

1шт.

14

529903R1

WASHER

- back up

1шт.

15

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

- 1/8 x 1/4 inch, class 6

1шт.

16

529904R1

RETAINER

- O-ring

1шт.

17

62473C2

RETAINER

- centering spring

1шт.

18

62472C1

SPRING

- centering

1шт.

19

62471C1

SPRING CUP

CUP - centering spring

1шт.

20

1252320C1

RETAINER

- O-ring

1шт.

21

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 3/16 inch, class 5

1шт.

22

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

24

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 5/8 x 3/16 inch, class 5

1шт.

25

62470C1

SPRING

- check valve

1шт.

26

108867C1

VALVE POPPET

VALVE - poppet, reverse flow check

1шт.

27

108868C1

SEAT

- reverse flow check valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

29

9410359

PLUG

- 0-ring boss, 1/2 inch OD tube

1шт.

30

26629R1

12 PT SCREW,Flg, 1/4" - 20 x 1"

SCREW - 12 point flanged, 1/4 NC x 1 inch, grade 8

4шт.

31

1263497C1

WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk

RING - back-up

1шт.
