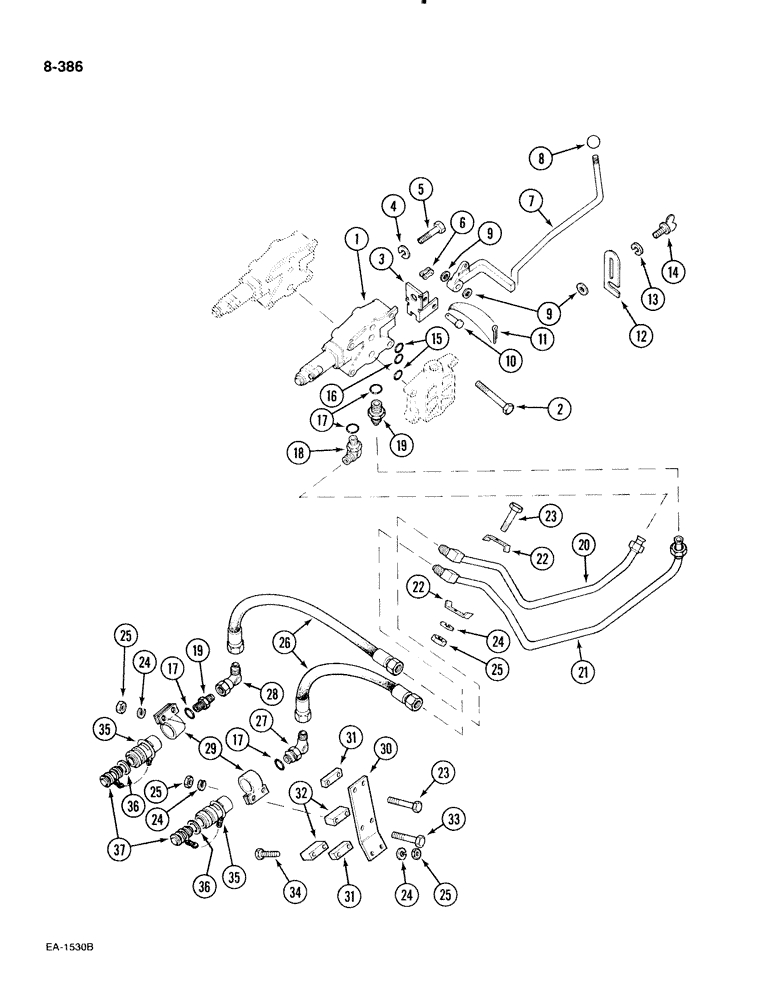

Запчасти Case IH 885 (8-386) - AUX. VALVE, 2ND BANK PRIOR TO P.I.N. 18001, W/1ST BANK DOUBLE ACTING VALVE & HYDRAULIC DRAFT CONTROL (08) - HYDRAULICS

1

62464C94

VALVE

- control, open center

1шт.

2

450517

BOLT,Hex, 3/8" - 16 x 4 3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch, class 5

4шт.

3

114556C1

BRACKET

- control valve handle

1шт.

4

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

6

1310D

LINK

- connecting, No. 50

1шт.

7

3129559R1

LEVER

- complete, auxiliary valve

1шт.

8

3123087R1

BUTTON

KNOB - ball (Black)

1шт.

9

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

3шт.

10

46883H

CLEVIS PIN,3/8" x 1 9/16"

PIN - clevis, 3/8 x 1-9/16 inch

1шт.

11

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

3125862R1

PLATE

- lockout, auxiliary valve lever

1шт.

13

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - adjusting

1шт.

15

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- 13/16 x 1 inch, class 6

2шт.

16

383219R1

O-RING,0.924" ID x 0.103" Width

- 15/16 x 1-1/8 inch, class 6

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

2шт.

18

9411106

ELBOW

- 45 degree, adjustable, 5/8 inch OD tube

1шт.

19

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION - short, 5/8 inch OD tube

2шт.

20

3129555R1

TUBE

- rear outlet (Lower)

1шт.

21

3129554R1

HYD TUBE

TUBE - rear outlet (Raise)

1шт.

22

535301R1

CLAMP

- rear outlet tube

2шт.

23

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

3шт.

24

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

25

120376

NUT,5/16"-18, G5

7шт.

26

3129556R1

HOSE

- rear outlet

2шт.

27

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 5/8 inch OD tube

1шт.

28

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, swivel, 5/8 inch OD tube

1шт.

29

3114106R1

CLAMP

- coupling

2шт.

30

3129558R1

PLATE

- coupling

1шт.

31

1500503C1

SPACER

- coupling

2шт.

32

3129557R1

SPACER

- coupling

2шт.

33

180085

SPRING

- hex, 5/16 NC x 1-3/4 inch, grade 5

2шт.

34

180091

SPRING

- hex, 5/16 NC x 2-1/2 inch, grade 5

2шт.

35

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

2шт.

36

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- breakaway coupling dust plug

2шт.

37

401757R11

PLUG

- dust, breakaway coupling

2шт.

37

373220R1

PLUG

- dust, breakaway coupling, Serial Range: (Optional-401757R11)

2шт.
