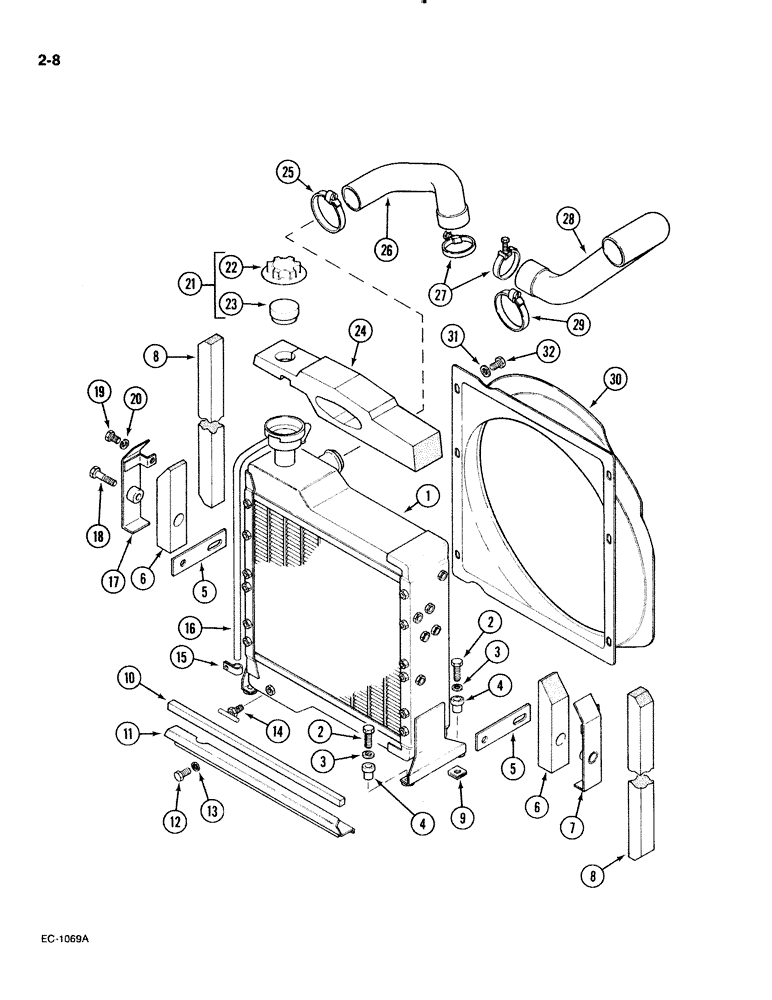

Запчасти Case IH 885 (2-008) - RADIATOR AND CONNECTIONS, AIR CONDITIONING OR TROPICAL COOLING (02) - ENGINE

1

84673C4

RADIATOR

1шт.

1

1536771C2

RADIATOR

new

1шт.

2

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8"-16 NC x 1-3/4", grade 5

4шт.

3

SL716

WASHER

- flat, 0.406 x 1.125 x 0.067 inch

4шт.

4

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNTING - isolator

4шт.

5

98905C1

BRACKET

STRAP - radiator mounting, Serial Range: -20394

2шт.

5

99996C2

STRAP

- radiator mounting, Start Serial: 20394

2шт.

6

98940C1

SEAL

- radiator side shield

2шт.

7

98914C1

GUARD

SHIELD - radiator seal, left

1шт.

8

79059C1

STRIP

SEAL - radiator side, 38 x 38 x 325 mm

2шт.

9

84525C1

SPACER

- rear mounting

2шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, lower baffle, 13 x 13 x 480 mm

1шт.

11

98958C1

BAFFLE

- lower air

1шт.

12

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch, grade 5

2шт.

13

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

14

103647

VALVE

- drain cock, 1/4 inch PTF, special short thread

1шт.

15

163135H1

CLAMP,7/16", 3/8" Bolt

- bare metal, 0.44 inch diameter

1шт.

16

84515C3

HOSE

- overflow

1шт.

17

98913C1

GUARD

SHIELD - radiator seal, right

1шт.

18

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

hex, 5/16"-18 NC x 1-1/4", grade 5

2шт.

19

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

20

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

1500626C91

PLUG

CAP - radiator, complete, Includes: Ref. 22 and 23

1шт.

22

532674R1

PLUG

COVER - radiator cap

1шт.

23

3118639R1

CAP

- radiator

1шт.

24

98918C1

SEAL

- upper radiator

1шт.

25

279026R91

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, No. 36, type F

1шт.

26

84496C1

RADIATOR HOSE,44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

Upper 44.00 mm ID, 49.00 mm ID x 270,190 mm, SAE 20R4 CLASS D1

1шт.

27

39205H

CLAMP

- hose, No. 80, type C

2шт.

28

84497C1

LARGE HOSE

HOSE - radiator lower

1шт.

1536556C1 New Fan Shroud

1шт.

29

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP - hose, No. 44, type F

1шт.

30

84526C2

HOUSING

SHROUD - radiator

1шт.

31

95-11034

WASHER,1/4"

- plain, 0.344 x 0.688 x 0.051 inch

6шт.

32

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

6шт.
