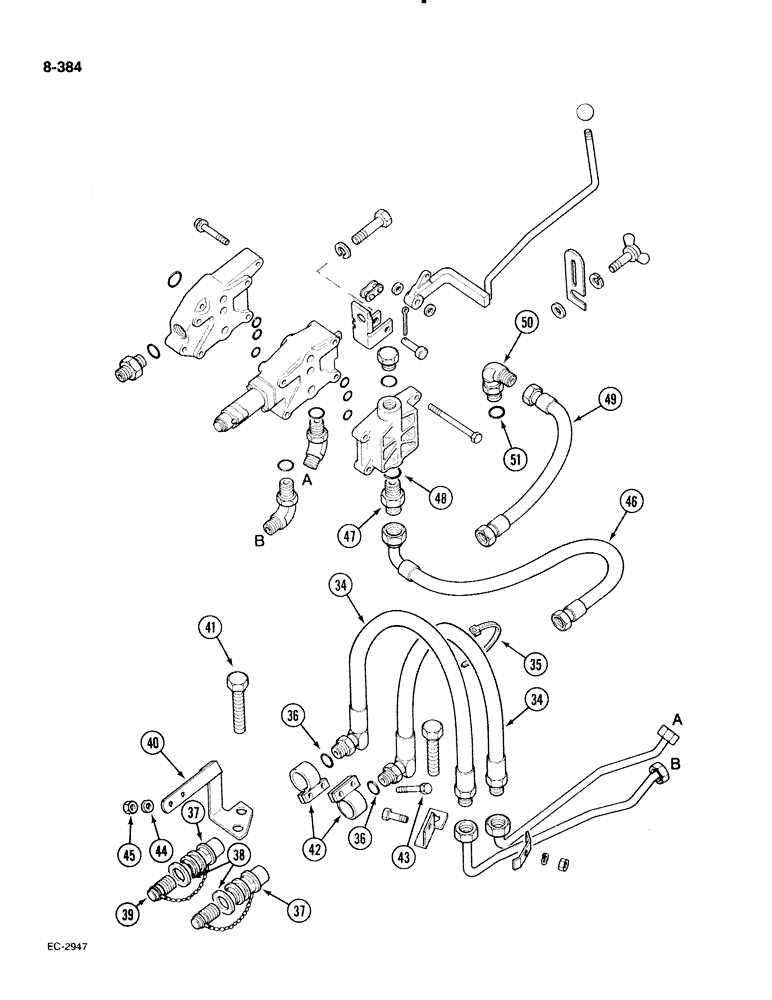

Запчасти Case IH 885 (8-384) - AUXILIARY VALVE, FIRST BANK, PRIOR TO P.I.N. 18001, WITH HYDRAULIC DRAFT CONTROL (CONTD) (08) - HYDRAULICS

34

535302R1

HOSE

- rear outlet

2шт.

35

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

1шт.

36

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

2шт.

37

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing, female

2шт.

38

401758R1

WASHER,14.48mm ID x 38.1mm OD x 3.05mm Thk

- breakaway coupling dust plug

2шт.

39

373220R1

PLUG

- dust, breakaway coupling

2шт.

39

401757R11

PLUG

- dust, breakaway coupling, Serial Range: (Optional-373220R1)

2шт.

40

535298R1

SUPPORT

BRACKET - mounting, rear manifold

1шт.

41

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch, grade 5

2шт.

42

3114106R1

CLAMP

- coupling

2шт.

43

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

44

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

45

120376

NUT,5/16"-18, G5

2шт.

46

3123730R1

HOSE,0.75" ID x 75.00", SAE 100R4 CLASS 4

0.75" ID x 75.00", SAE 100R4, CLASS 4, Return, Auxiliary Power Source

1шт.

47

380633R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

UNION - short, 3/4 to 1 inch OD tube

1шт.

48

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1 inch OD tube, class 6

1шт.

49

3123729R1

HOSE,0.50" ID x 75.00", SAE 100R3 CLASS 8

0.50" ID x 75.00", SAE 100R3, CLASS 8, Auxiliary Power Source

1шт.

50

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree, adjustable, 5/8 inch OD tube

1шт.

51

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 inch outside diameter

1шт.
