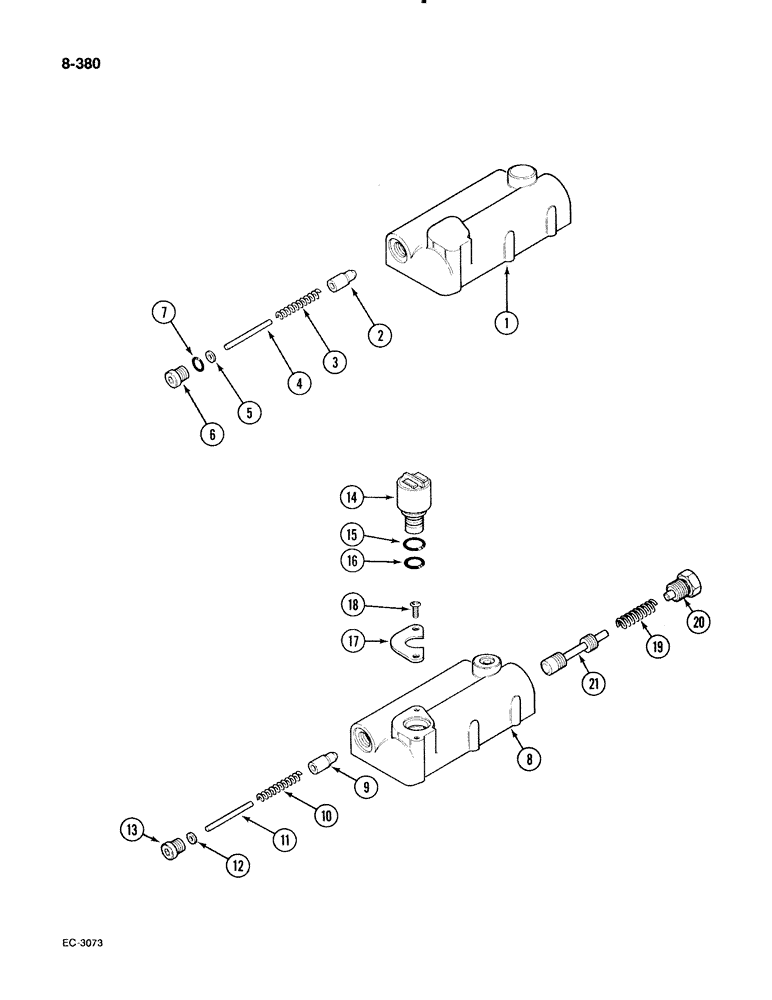

Запчасти Case IH 885 (8-380) - REGULATOR VALVES, P.I.N. 18001 AND AFTER (08) - HYDRAULICS

83190C92

VALVE

- pressure regulator, Includes: Ref. 1 thru 7, four wheel drive without 2 speed power shift

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pressure regulator valve

1шт.

2

399882R1

POPPET

- poppet, pressure regulator

1шт.

3

88426C1

SPRING

- pressure regulator valve

1шт.

4

399881R2

PIN

- pressure regulator valve

1шт.

5

1954071C1

WASHER

- pressure regulator valve

1шт.

6

1954070C1

PLUG

- pressure regulator valve

1шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

83006C94

VALVE

- pressure regulator, Includes: Ref. 8 thru 21, two speed power shift

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - regulator valve

1шт.

9

399882R1

POPPET

- poppet, pressure regulator

1шт.

10

88426C1

SPRING

- pressure regulator valve

1шт.

11

399881R2

PIN

- pressure regulator valve

1шт.

12

1954071C1

WASHER

- pressure regulator valve

1шт.

13

1954070C1

PLUG

- pressure regulator valve

1шт.

14

1958120C1

SOLENOID VALVE

VALVE - solenoid, Includes: Ref. 15 and 16

1шт.

15

370920R1

O-RING,1/2" ID

- 1/2 x 5/8 inch, class 5

1шт.

16

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

- 11/16 x 13/16 inch, class 5

1шт.

17

1289695C1

COLLAR

CLAMP - solenoid valve

1шт.

18

30827R1

SCREW,Cross Pan Hd, M4 x 8

- pan, cross recess, M4 x 8 mm, class 4.8

2шт.

19

1289693C3

SPRING

- compression

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL

1шт.
