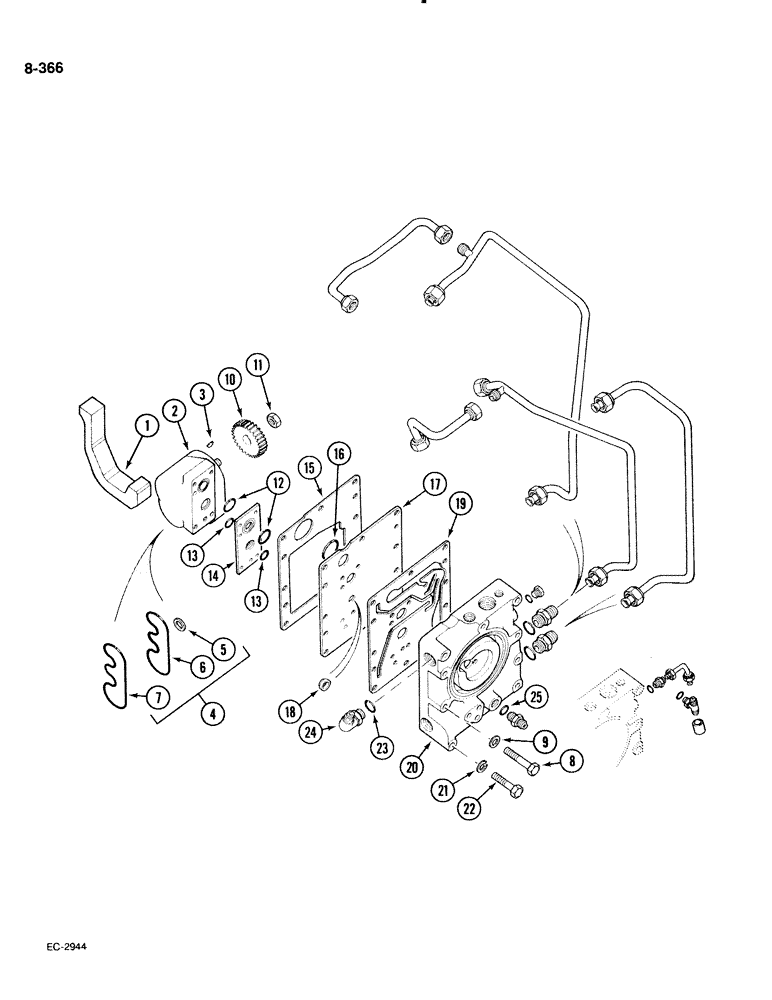

Запчасти Case IH 885 (8-366) - HYDRAULIC POWER SUPPLY AND MULTI-CONTROL VALVE (08) - HYDRAULICS

1

69355C1

SEAL

- hydraulic pump

1шт.

2

66513C92

PUMP, HYDRAULIC

PUMP - hydraulic gear, Plessey, Replaced by 93835C1, Includes: Ref. 3 thru 7

1шт.

2

93835C91

PUMP, HYDRAULIC

PUMP - hydraulic gear, sunstrand, Replaces 66513C92, 110509C91, 128180C91, and 406763R92, , Includes: Ref. 3 thru 7

1шт.

2

84573150R

REMAN-HYD PUMP

885 CASE IH TRACTOR (NORTH AMERICA), PUMP - hydraulic gear, sunstrand (1/86-12/90), Reman for New PN 93835C91

1шт.

2

84573150C

CORE-HYDRAULIC PUMP

Return Number

1шт.

3

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

4

1502030C1

SEAL KIT

KIT - service, seals, Includes: Ref. 5 thru 7

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - pump shaft

1шт.

6

NSS

NOT SOLD SEPARAT

RING - pressure loading

2шт.

7

NSS

NOT SOLD SEPARAT

RING - back-up

2шт.

8

179830

15 GPM pump Hex, 5/16"-18 x 3", G5

4шт.

8

426444

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch, grade 5 (18 gpm pump)

4шт.

9

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

- pump mounting bolt

4шт.

10

110523C1

GEAR

- driven, 23 teeth (17 gpm pump), (Used with pump 110509C91), Serial Range: -18001

1шт.

10

406764R1

PINION

GEAR - driven, 27 teeth (12 gpm pump), Serial Range: -18001

1шт.

10

59369C1

GEAR

- driven, 23 teeth (15 gpm pump), Start Serial: 18001

1шт.

10

94181C1

GEAR

- driven, 20 teeth (18 gpm pump), Start Serial: 18001

1шт.

11

18536R1

LOCK NUT,5/8"-18, G5

NUT - hex lock, 5/8 inch NF (Used with gear 110523C1)

1шт.

11

19258R1

LOCK NUT,1/2"-20, GB

NUT - hex lock, 1/2 inch NF

1шт.

12

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

- 1-1/16 x 3/32 inch, class 5

2шт.

13

21433R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

- 11/16 x 7/8 inch, class 6

2шт.

14

59370C1

LARGE PLATE

PLATE - pump mounting (15 gpm pump)

1шт.

14

544909R2

LARGE PLATE

PLATE - pump mounting (18 gpm pump)

1шт.

15

401736R3

GASKET

- multiple control valve HV

1шт.

16

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

- 1-1/2 x 1/8 inch, class 5

1шт.

17

405458R2

LARGE PLATE

PLATE - multiple control valve

1шт.

18

387926R2

RING

- rectangular

1шт.

19

65000C3

GASKET

- multiple control valve body

1шт.

20

94281C91

VALVE

- multiple control, See Figure 8-370, Start Serial: 18001

1шт.

20

57714C96

VALVE

- multiple control, See Figure 8-370, Serial Range: -18001

1шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, , without Cab 3/8"

10шт.

21

103321

LOCK WASHER,3/8"

WASHER, LOCK, , with Cab 3/8"

7шт.

22

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(w/o Cab) Hex, 3/8"-16 x 3", G5

9шт.

22

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(w/ Cab) Hex, 3/8"-16 x 3", G5

6шт.

22

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch, grade 5

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

24

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

1шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, Serial Range: -18001

1шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, Replaces: 578028R1, Start Serial: 18001

1шт.
