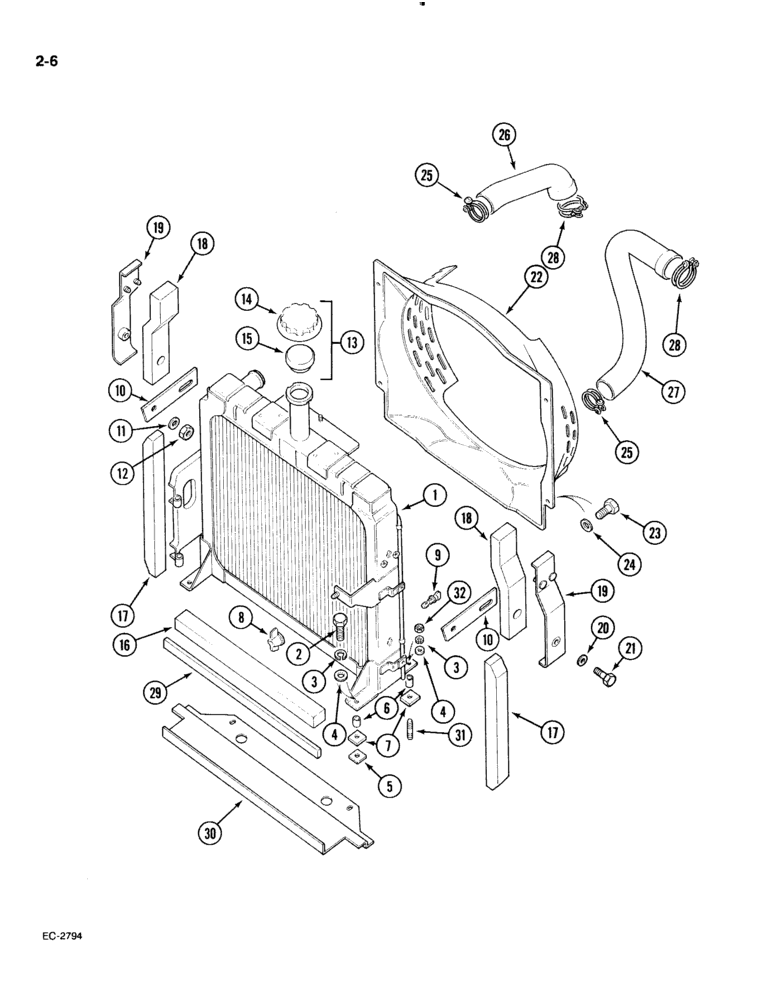

Запчасти Case IH 885 (2-006) - RADIATOR AND CONNECTIONS, WITHOUT AIR CONDITIONING OR TROPICAL COOLING (02) - ENGINE

1

84524C93

RADIATOR

1шт.

1

1536373C1

RADIATOR

new, with new bolt hole pattern

1шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

5

84525C1

SPACER

- front mounting

2шт.

6

99427C1

SPACER

BUSHING

4шт.

7

47240D

PAD

- radiator

4шт.

8

7500032

BUSHING

NUT - wing, 5/16 inch NC

1шт.

9

3113083R1

PLUG, DRAIN

VALVE - drain, 1/4 inch

1шт.

10

94313C1

STRAP

- radiator mounting, Serial Range: -20394

2шт.

10

99996C2

STRAP

- radiator mounting, Start Serial: 20394

2шт.

11

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch, Serial Range: -20394

2шт.

11

30175R1

WASHER,M8 x 17.5 x 2, HT

, Start Serial: 20394

2шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 5, Serial Range: -20394

2шт.

12

1970881C1

NUT

- hex, 8 mm, Nyloc, Start Serial: 20394

2шт.

13

1500626C91

PLUG

CAP - radiator, complete, Includes: Ref. 14 and 15

1шт.

14

532674R1

PLUG

COVER - radiator cap

1шт.

15

3118639R1

CAP

- radiator

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator lower, 19 x 25 x 450 mm

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 32 x 38 x 325 mm

2шт.

18

98934C1

SEAL

SEAL - foam, radiator side

2шт.

19

98907C1

GUARD

SHIELD - radiator seal

2шт.

20

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

21

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

22

527475R3

HOUSING

- fan

1шт.

23

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

24

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

4шт.

25

39149H

HOSE CLAMP

CLAMP - hose, No. 64

2шт.

25

705935R91

HOSE CLAMP

CLAMP - hose, Serial Range: optional-39149H

2шт.

26

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

26

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

27

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

27

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

39205H

CLAMP

- hose, No. 80, type C

2шт.

28

706082R91

CLAMP

- hose, Serial Range: optional-39205H

2шт.

29

NSS

NOT SOLD SEPARAT

SEAL - foam, baffle, 13 x 13 x 416 mm

1шт.

30

98957C1

BAFFLE

- lower air

1шт.

31

99688C1

STUD

- 3/8 inch NC x 47 mm

2шт.

32

120377

NUT,3/8" - 16, Gr 5

2шт.
