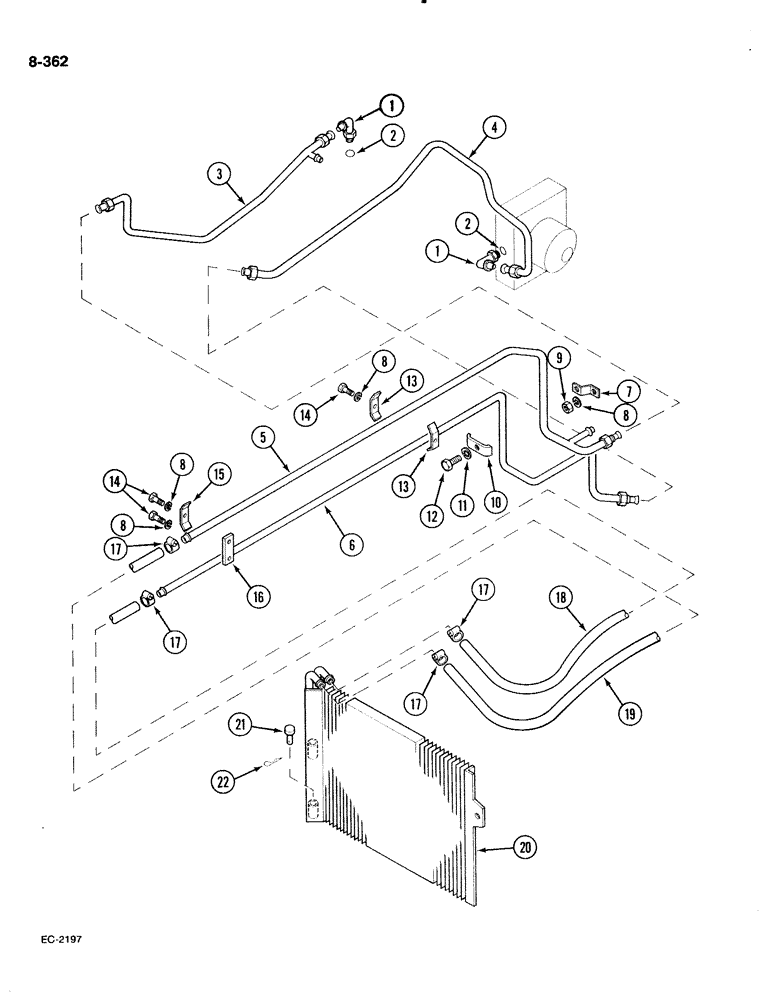

Запчасти Case IH 885 (8-362) - OIL COOLER AND PIPES, WITHOUT CAB (08) - HYDRAULICS

1

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

3

66096C4

PIPE

TUBE - oil cooler return, rear

1шт.

4

3129259R1

PIPE

TUBE - oil cooler supply, rear

1шт.

5

99868C1

PIPE

TUBE - oil cooler outlet, Start Serial: 18001

1шт.

5

66100C2

TUBE ASSY.

TUBE - oil cooler, outlet, Serial Range: -18001

1шт.

6

99867C1

PIPE

TUBE - oil cooler inlet, Start Serial: 18001

1шт.

6

66098C1

PIPE

TUBE - oil cooler, inlet, Serial Range: -18001

1шт.

7

99790C1

SUPPORT

BRACKET - support

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

109084

NUT,1/4"-20, G5

1шт.

10

98788C1

CLAMP

- tube

1шт.

11

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

12

931432R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

13

529644R11

CLAMP

- tube

1шт.

14

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

3шт.

15

529644R1

CLAMP

- tube

1шт.

16

98937C1

SUPPORT

BRACKET - front

1шт.

17

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP - hose, No. 10, type F

4шт.

17

3074617R1

CLAMP

- hose, Serial Range: (Optional-274085R91)

4шт.

18

NSS

NOT SOLD SEPARAT

HOSE - oil cooler, inlet (Cut from hose 3125980R1)

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - oil cooler, outlet (Cut from hose 3125980R1)

1шт.

19

3125980R1

LARGE HOSE

HOSE - rubber, 1/2 inch ID, bulk length

1шт.

20

84721C1

COOLER

- oil

1шт.

20

1536379C1

COOLER, OIL

COOLER oil, new, bracket on both ends

1шт.

21

Q663

HEADED PIN,5/16" x 1 7/8"

plain head, 5/16 x 1-7/8 in.

2шт.

22

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

73200C1

HOSE,16mm ID x 1219.2mm L

1шт.
