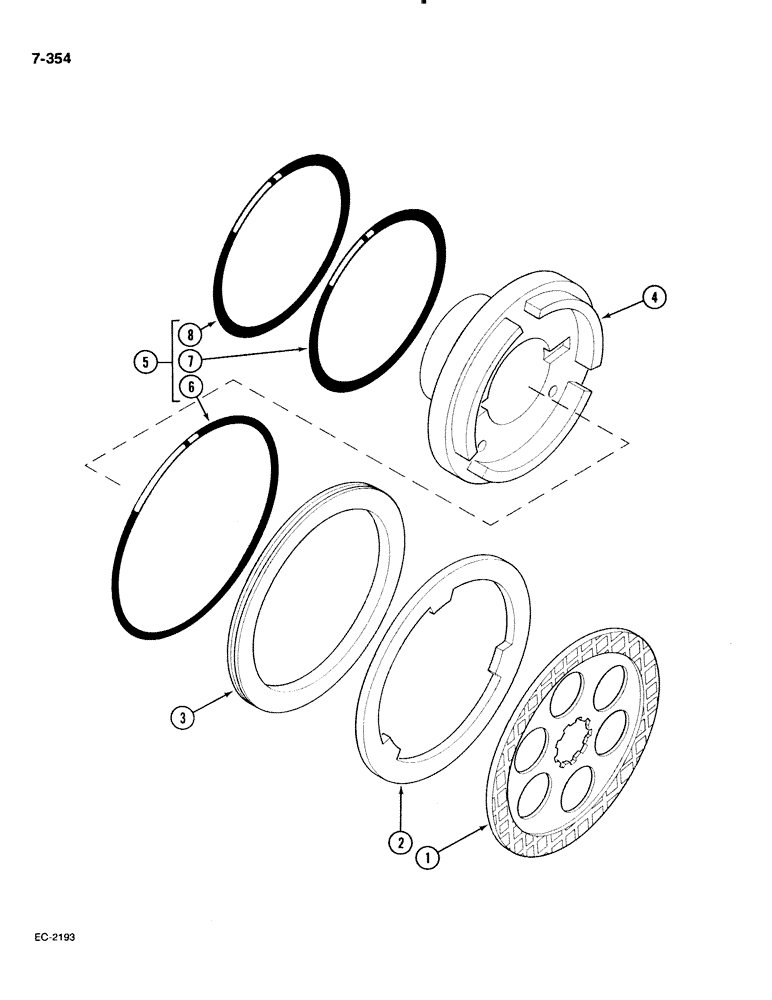

Запчасти Case IH 885 (7-354) - BRAKES (07) - BRAKES

1

114622C2

BRAKE DISC

DISC - brake center

2шт.

2

399736R3

RING

- brake (Assemble with numbered face inboard)

2шт.

3

114621C1

PISTON

- brake

2шт.

4

399770R2

BEARING CARRIER

CARRIER - differential bearing, right, See Figure 6-268

1шт.

4

399769R2

BEARING CARRIER

CARRIER - differential bearing, left, See Figure 6-268

1шт.

5

539535R91

O-RING KIT

- service, brake O-ring, Includes: Ref. 6 P/N 343932R1, Ref. 7 P/N 21472R1 and Ref. 8 P/N 289506R1

1шт.

6

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 1/8 inch

2шт.

6

27659R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

high temperature brake, see NTR SB 032-90

2шт.

7

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 inch, class 6

2шт.

7

27658R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 8, 90 Duro

high temperature brake, see NTR SB 032-90

2шт.

8

289506R1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 5, 75 Duro

7-1/2 x 7-7/8 inch

2шт.

8

1536081C1

O-RING,0.21" Thk x 7.475" ID, -367, Cl 8, 90 Duro

high temperature brake, see NTR SB 032-90

2шт.
