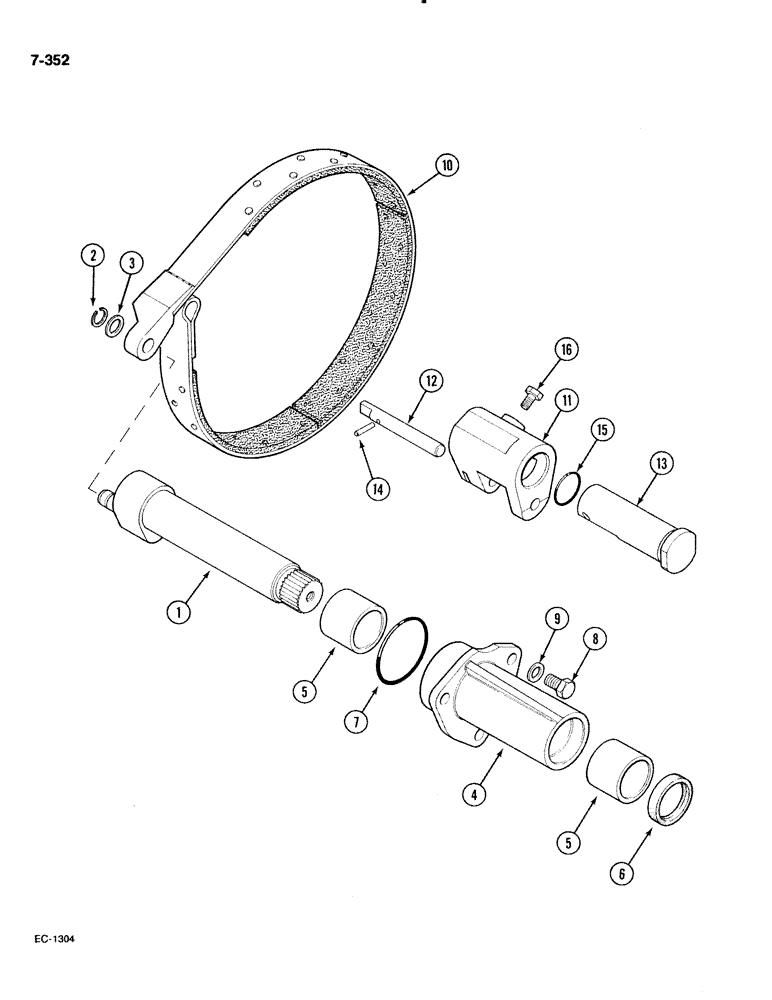

Запчасти Case IH 885 (7-352) - PARK LOCK, HEAVY DUTY (07) - BRAKES

1

94328C1

SHAFT

- brake cam

1шт.

2

347425R1

SNAP RING,#62, .586", Ext

RING - retaining, external, 0.586 inch

1шт.

3

1335386C1

WASHER

1шт.

4

94329C91

PIVOT

- park brake, Includes: Ref. 5 and 6

1шт.

5

3073285R1

BUSHING

- bronze

2шт.

5

1536283C1

BUSHING

steel, with TA plastic backing material

2шт.

6

126214C91

OIL SEAL

- lip

1шт.

7

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

- 2-9/16 x 2-3/4 inch, class 5

1шт.

8

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

- hex, 3/8 NC x 1-1/8 inch, grade 5

3шт.

9

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

86164C1

BAND

- brake

1шт.

11

94061C1

PIVOT

HANGER - brake band

1шт.

12

88655C1

PIN

- park brake hanger

1шт.

13

94062C3

SHAFT

- hanger support, Replaces: 94062C1

1шт.

14

30243R1

COTTER PIN,M4 x 25

1шт.

15

30606R1

O-RING,2.65mm Thk x 30mm ID, Cl 5, 75 Duro

- 30 mm ID, class 5

2шт.

16

30020R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, 10 mm x 25 mm, class 10.9

1шт.
