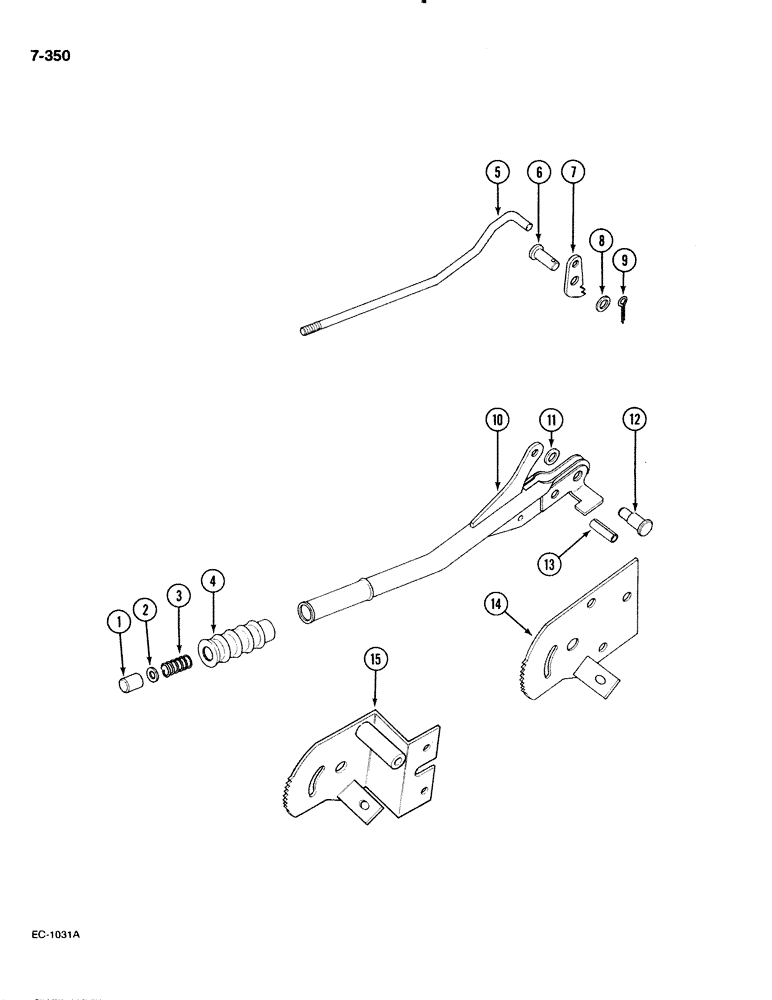

Запчасти Case IH 885 (7-350) - PARK BRAKE HAND LEVER, HEAVY DUTY (07) - BRAKES

94256C96

LEVER

- park brake (With cab), Includes: Ref. 1 - 15

1шт.

1331093C2

LEVER

- park brake (Without cab), Includes: Ref. 1 - 15

1шт.

1

3125177R1

BUTTON

- release

1шт.

2

27306R1

WASHER,3/16" x 7/16" x .036", Stainless

- plain, 0.188 x 0.438 x 0.036 inch

1шт.

3

3125184R1

SPRING

- button return

1шт.

4

3125185R1

GRIP

- lever (PVC)

1шт.

5

94262C3

ROD

- pusher

1шт.

6

20687R1

CLEVIS PIN,1/4" x .609"

PIN - clevis, 0.25 x 0.609 inch

1шт.

7

94264C2

PAWL

1шт.

8

3125181R1

WASHER

- pawl fulcrum

2шт.

9

3125183R1

PIN, SPLIT (COTTER)

PIN - cotter, pawl fulcrum

1шт.

10

94265C5

LEVER

- hand

1шт.

11

1330750C2

SPACER

1шт.

12

94263C3

PIN

- pivot

1шт.

13

19328R1

LOCK PIN,3/8" x 3/4", Slotted

1шт.

14

99423C4

PLATE

- ratchet assembly (Used with 94256C96)

1шт.

15

1331094C2

RATCHET

PLATE - ratchet assembly (Used with 1331093C2)

1шт.
