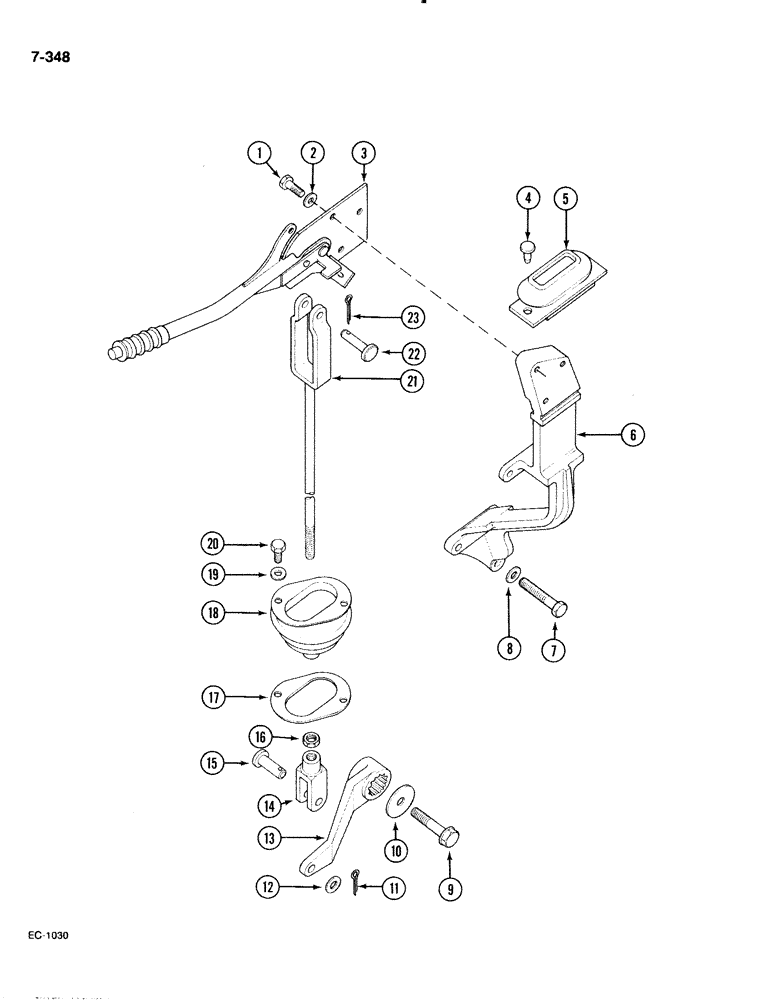

Запчасти Case IH 885 (7-348) - PARK LOCK LINKAGE (07) - BRAKES

1

931431R1

BOLT,Hex, M8 x 20, 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8, PHC

3шт.

2

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

94256C96

LEVER

- park brake, See Figure 7-350, Includes: Ref. 5 thru 8

1шт.

4

1289539C1

FASTENER

- plastic

2шт.

5

94374C1

BOOT

- park brake support

1шт.

6

94251C1

SUPPORT

- park brake

1шт.

7

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, grade 5

3шт.

8

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

1шт.

10

3102893R1

WASHER

- plain, 10.4 x 50 x 3 mm

1шт.

11

934896R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

1шт.

12

30176R1

WASHER,M10 x 21.5 x 2.5, HT

- plain, 10 mm

1шт.

13

94231C2

ARM

- actuating

1шт.

14

1537272C1

CLEVIS

- adjustable, M10, Replaces: 30791R1

1шт.

15

30387R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 10 x 30 mm

1шт.

16

100016

NUT,M10 x 1.5, Cl 8

1шт.

17

99414C1

PLATE

- clamp

1шт.

18

94375C2

BOOT

- rod actuating

1шт.

19

30481R1

WASHER,M5 x 10 x 1

- plain, 5.5 x 10 x 1 mm

2шт.

20

30304R1

SCREW

- tapping, M5 x 12 mm

2шт.

21

1330979C1

CLEVIS

- pull

1шт.

22

31284R1

CLEVIS PIN

PIN - clevis, 10 x 35 mm, Replaces: 31168R1

1шт.

23

934896R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm, Replaces: 934792R1

1шт.
