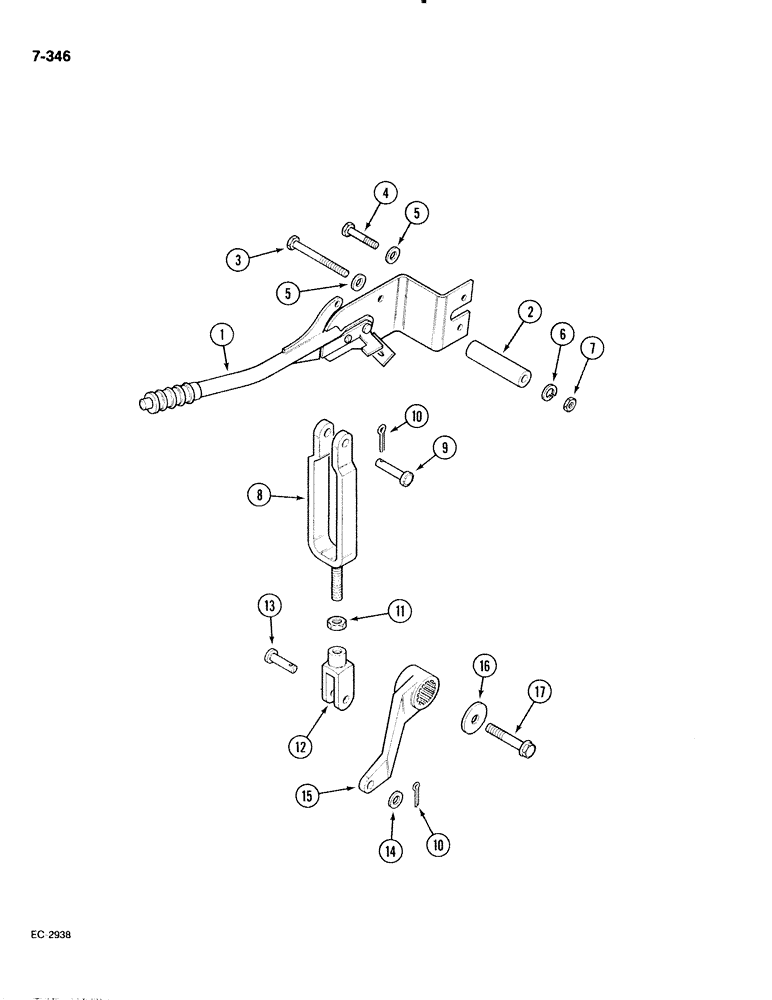

Запчасти Case IH 885 (7-346) - PARK BRAKE LINKAGE, WITHOUT CAB, P.I.N. 18001 AND AFTER (07) - BRAKES

1

94256C96

LEVER

- park brake, Replaced by 1331093C2

1шт.

1

1331093C2

LEVER

- park brake, See Figure 7-350

1шт.

2

99436C1

SPACER

- (Used with 94256C96)

3шт.

3

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch, grade 5 (Used with 1331093C2)

1шт.

3

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex, 3/8 NC x 3 inch, grade 5 (Used with 94256C96)

3шт.

4

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5 (Used with 1331093C2)

2шт.

5

25724R1

WASHER

- flat, 0.406 x 1.125 x 0.134 inch

3шт.

6

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

120377

NUT,3/8" - 16, Gr 5

3шт.

8

1330987C2

CLEVIS

- pull

1шт.

9

31284R1

CLEVIS PIN

PIN - clevis, 10 x 35 mm, Replaces: 31168R1

1шт.

10

934896R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm, Replaces: 934792R1

2шт.

11

30168R1

NUT,M10, Cl 10

- hex, 10 mm, class 10

1шт.

12

1537272C1

CLEVIS

- adjustable, M10, Replaces: 30791R1

1шт.

13

30387R1

SPLIT PIN/SAFETY PIN

PIN - clevis, 10 x 30 mm

1шт.

14

30176R1

WASHER,M10 x 21.5 x 2.5, HT

- plain, 10 mm

1шт.

15

99435C3

ARM

- actuating

1шт.

16

3102893R1

WASHER

- plain, 10.4 x 50 x 3 mm

1шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

1шт.
