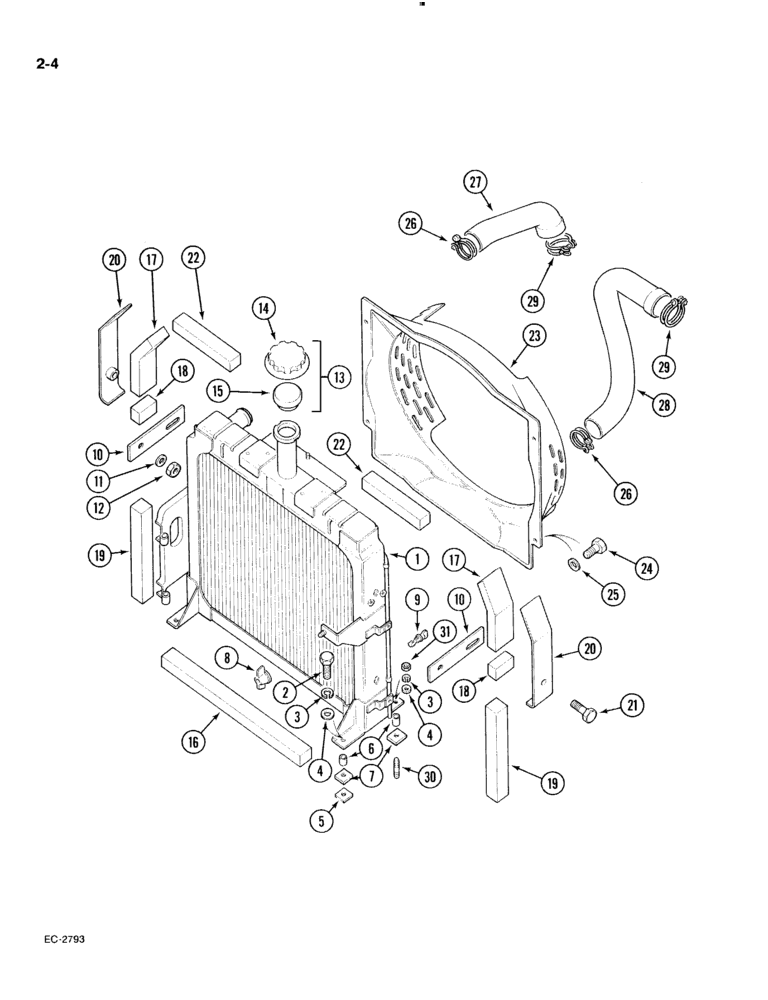

Запчасти Case IH 885 (2-004) - RADIATOR AND CONNECTIONS, PRIOR TO P.I.N. 18001 (02) - ENGINE

1

84524C93

RADIATOR

1шт.

1

1536373C1

RADIATOR

new, with new bolt hole pattern

1шт.

2

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, grade 5, ZND

2шт.

3

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

4шт.

5

84525C1

SPACER

- radiator front mounting

2шт.

6

99427C1

SPACER

BUSHING

4шт.

7

47240D

PAD

- radiator

1шт.

8

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

9

3113083R1

PLUG, DRAIN

VALVE - drain, 1/4 inch

4шт.

10

94313C1

STRAP

- radiator mounting

2шт.

11

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

12

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 5

2шт.

13

1500626C91

PLUG

CAP - radiator, complete, Includes: Ref. 14 and 15

1шт.

14

532674R1

PLUG

COVER - radiator cap

1шт.

15

3118639R1

CAP

- radiator

1шт.

16

537162R1

FILLING STRIP

SEAL - lower radiator

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - shield, long, 5.6 inch (142 mm), cut from 73217C2

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - shield, short, 2.1 inch (53 mm), cut from 73217C2

2шт.

19

NSS

NOT SOLD SEPARAT

SEAL - foam, radiator side, 14 inch (356 mm), cut from 73217C2

2шт.

20

98885C1

GUARD

SHIELD - radiator seal

2шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - radiator top, 8 inch (203 mm), cut from 73217C2

2шт.

23

527475R3

HOUSING

- fan

1шт.

24

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

25

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

4шт.

26

39149H

HOSE CLAMP

CLAMP - hose, No. 64

2шт.

26

705935R91

HOSE CLAMP

CLAMP - hose, Serial Range: optional-39149H

2шт.

27

402207R1

LARGE HOSE,50.80 mm ID x 179.83 mm, SAE 20R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A, Inlet 50.80 mm ID x 179.83 mm, SAE 20R2

1шт.

27

402207R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

402205R1

LARGE HOSE,50.80 mm ID x 213.90 mm, SAE 100R2

RADIATOR HOSE, , CLASS R, GRADE 1A, SAE 20R4, CLASS R, GRADE 1A OR SAE 20R4 CLASS D1, Outlet 50.80 mm ID x 213.90 mm, SAE 100R2

1шт.

28

402205R1GV

RADIATOR HOSE

Value, Radiator Hose

1шт.

28

1537027C1

HOSE

radiator, new

1шт.

29

39205H

CLAMP

- hose, No. 80, type C

2шт.

29

706082R91

CLAMP

- hose, Serial Range: optional-39205H

2шт.

30

99688C1

STUD

- 3/8 inch NC x 47 mm

2шт.

31

120377

NUT,3/8" - 16, Gr 5

2шт.

73217C2

FILLING STRIP

SEAL - foam, bulk length, 4 foot roll (1.2 meter), use for Ref. 17, 18, 19, and 22

1шт.

1537013C1

SUPPORT

BRACKET new, for water coolant expansion tank

1шт.
