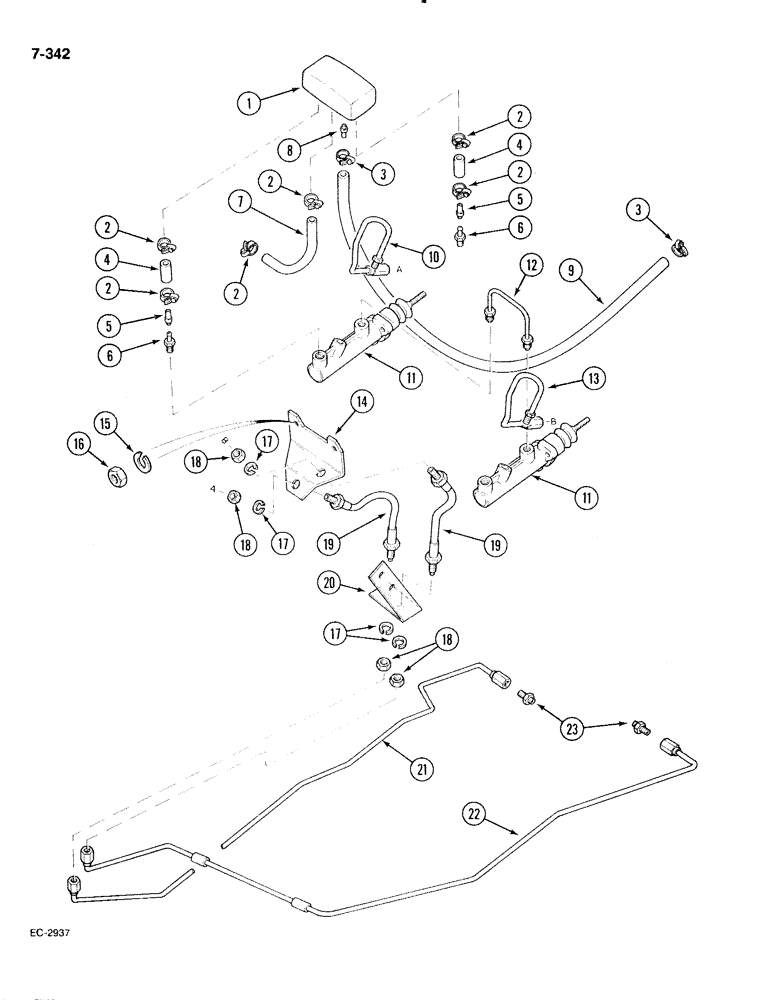

Запчасти Case IH 885 (7-342) - BRAKE CYLINDER AND CONNECTIONS (07) - BRAKES

1

3129644R1

RESERVOIR

- brake

1шт.

2

3125239R1

COLLAR

CLAMP - hose, worm drive

6шт.

3

3074617R1

CLAMP

- hose

2шт.

4

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

5

537849R2

SCREEN

- with orifice

2шт.

6

3129659R1

PIPE ASSY.

PIPE - cylinder supply

2шт.

7

3129650R1

HOSE,8.00 mm ID x 220.00 mm

- Reservoir supply 8.00 mm ID x 220.00 mm

1шт.

8

537518R1

SCREEN

- with orifice

1шт.

9

3129651R1

HYDRAULIC HOSE,13.50 mm ID x 900.00 mm, SAE 100R6

- Reservoir dump 13.50 mm ID x 900.00 mm, SAE 100R6

1шт.

10

98561C1

PIPE

- right cylinder outlet

1шт.

11

1287734C91

MASTER CYLINDER

CYLINDER - brake master, See Figure 7-344

2шт.

12

1282650C2

PIPE

- cylinder link

1шт.

13

98856C1

PIPE

- left cylinder outlet

1шт.

14

98562C1

SUPPORT

BRACKET - brake supply pipes

1шт.

15

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

16

30167R1

NUT,M8, Cl 10

- hex, 8 mm, class 10

4шт.

17

934492R1

LOCK WASHER,Ext Tooth, M14

WASHER - lock, external tooth, 14 mm

4шт.

18

3129654R1

THIN NUT

- hex, M14 x 1.5 mm, thin section

4шт.

19

3129653R91

HOSE ASSY.

HOSE - high pressure

2шт.

20

3129667R1

SUPPORT

BRACKET - brake pipe support

1шт.

21

3129665R1

PIPE

- supply, right cylinder

1шт.

22

99858C1

PIPE

- supply, left cylinder

1шт.

23

3129671R1

FITTING

ADAPTER - brake pipe

2шт.

23

3123194R1

TAPE

- cable, bulk length (Not illustrated)

1шт.
