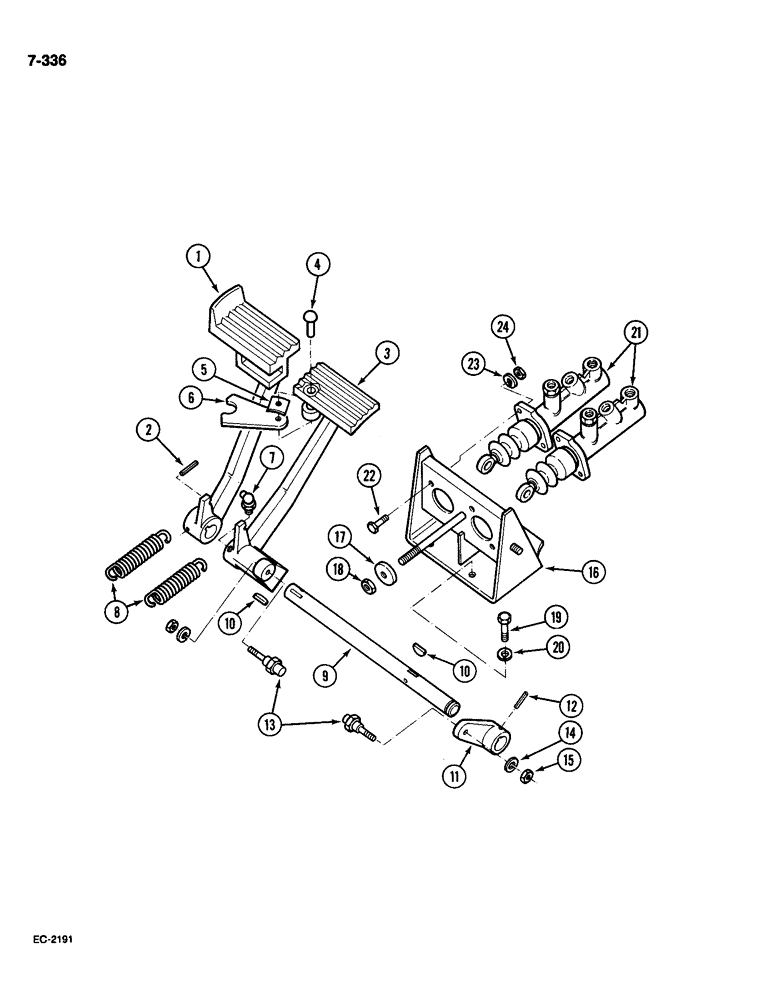

Запчасти Case IH 885 (7-336) - BRAKE CYLINDER AND PEDALS, WITHOUT CAB (07) - BRAKES

1

1500752C1

PEDAL

- brake, right

1шт.

2

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

3

3125226R91

PEDAL ASSY.

PEDAL - brake, left, Includes: Ref. 4 - 6

1шт.

Bushing used to mount this pedal to the shaft is P/N 539834R1.

1шт.

4

NSS

NOT SOLD SEPARAT

RIVET - solid round head, 1/4 x 1-1/4 inch

1шт.

5

51293D

SPRING

- tension, brake pedal lock

1шт.

6

43751DB

LATCH, PEDALS

PLATE - brake pedal lock

1шт.

7

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING - grease, drive type, 65 degree, 1/4 inch

1шт.

8

3125230R1

SPRING

- return, brake pedal

2шт.

9

1500753C1

SHAFT

- pedal support

1шт.

10

124551

SCREW

- woodruff, 1/4 x 7/8 inch

2шт.

11

1500755C1

ARM

- brake pedal

1шт.

12

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

13

399744R1

BOLT

BOLT - brake pedal adjusting

2шт.

14

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

103026

NUT,3/8"-24, G5

2шт.

16

1970643C1

BRACKET

- brake cylinder mounting

1шт.

17

1970644C1

PLATE

- brake pedal stop

1шт.

18

894980H1

LOCK NUT

- hex, self-locking, 1/2 inch NF

1шт.

19

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

20

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

1287843C91

MASTER CYLINDER

CYLINDER - brake master

2шт.

22

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

23

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, grade 5

4шт.
