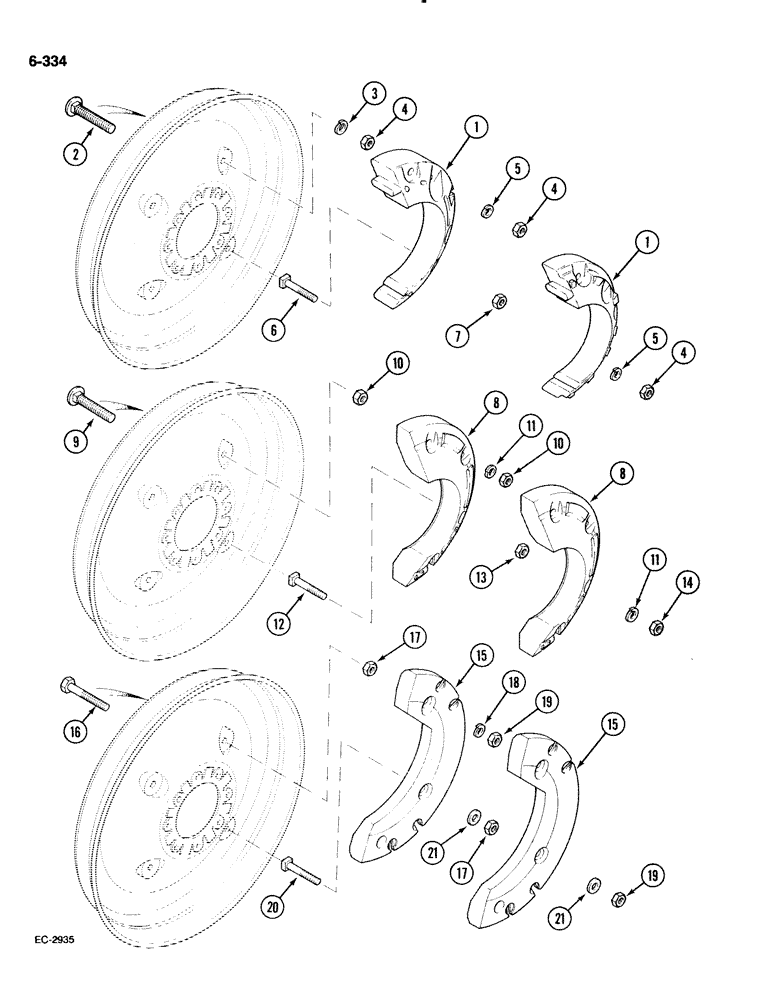

Запчасти Case IH 885 (6-334) - WEIGHTS, REAR WHEEL, SPLIT TYPE (06) - POWER TRAIN

1

369509R1

WEIGHT

- rear wheels, 75 lbs (24 and 26 inch wheels) (1st, 2nd or 3rd position)

4шт.

1

366645R1

WEIGHT

- rear wheels, 75 lbs (26 inch wheel, Sankey or Nagbol wheels, 1st, 2nd or 3rd position

4шт.

2

366646R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3 3/4", Gr 2

- carriage, 5/8 NC x 3-3/4 inch (1st position), 24 and 26 inch wheels

8шт.

3

131140

LOCK WASHER,5/8"

WASHER, LOCK, , 1st position, 24 and 26 inch wheels 5/8"

8шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, grade 5 (1st position), 24 and 26 inch wheels

16шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, grade 5 (2nd or 3rd position), 24 and 26 inch wheels

8шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1st, 2nd or 3rd position, 24 and 26 inch wheels 5/8"

8шт.

6

369508R1

BOLT,5/8" - 11 x 5 3/4"

- square head, 5/8 NC x 5-3/4 inch, 24 and 26 inch wheels (Used with weight 369509 R1 in 2nd or 3rd position)

8шт.

6

366647R1

BOLT,Sq Hd, 5/8" - 11 x 5 1/2"

- square head, 5/8 NC x 5-1/2 inch, 24 and 26 inch wheels (Used with weight 366645 R1 in 2nd or 3rd position)

8шт.

7

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC (Used with bolt 369508 R1), 24 and 26 inch wheels

8шт.

8

365321R1

WEIGHT

- rear wheel, 75 lbs (1st or 2nd position), 28 or 30 inch wheels

8шт.

9

365333R1

BOLT,Sht Sq Nk, 5/8" - 11 x 3"

- square neck carriage, 5/8 NC x 3 inch (1st position), 28 or 30 inch wheels

8шт.

10

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, grade 5 (1st position), 28 or 30 inch wheels

16шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 1st or 2nd position, 28 or 30 inch wheels 5/8"

8шт.

12

365332R2

SQUARE BOLT

BOLT - square head, rear wheel weight (2nd position), 28 or 30 inch wheels

8шт.

13

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC (2nd position), 28 or 30 inch wheels

8шт.

14

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, grade 5 (2nd position), 28 or 30 inch wheels

8шт.

15

400078R2

WEIGHT

- rear wheel (1st, 2nd or 3rd position), 38 or 42 inch wheels (for bar type axle)

4шт.

16

528340R1

BOLT

BOLT - hex, 3/4 NC x 5-1/4 inch (1st position), 38 or 42 inch wheels (for bar type axle)

8шт.

17

426897

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC (1st, 2nd or 3rd position), 38 or 42 inch wheels (for bar type axle)

8шт.

18

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1st position, 38 or 42 inch wheels for bar type axle

8шт.

19

280954

NUT,3/4"-10, G5

(1st, 2nd or 3rd position), 38 or 42 inch wheels (for bar type axle) 3/4"-10, G5

8шт.

20

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

- square head, 3/4 NC x 3-1/4 inch (2nd or 3rd position), 38 or 42 inch wheels (for bar type axle)

8шт.

21

366112R1

WASHER

- flat, 0.781 x 1.250 x 0.105 (2nd or 3rd position), 38 or 42 inch wheels (for bar type axle)

16шт.
