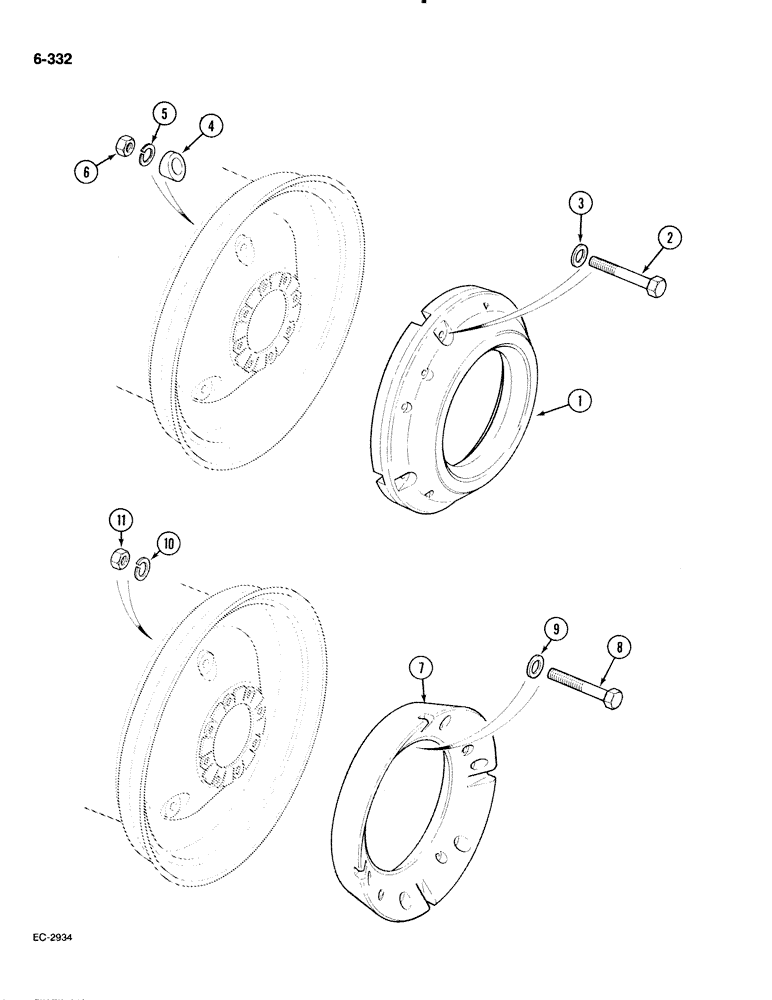

Запчасти Case IH 885 (6-332) - WEIGHTS, REAR WHEEL, SOLID TYPE (06) - POWER TRAIN

1

3123758R3

WEIGHT

- 120 lbs., first set, 28, 30 and 34 inch attached 8 rim clamp wheels

2шт.

2

181151

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW - hex cap, 7/16 NC x 3-1/4 inch, grade 5, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

28 or 30 inch Sankey or Nagbol wheels.

1шт.

2

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

-HEX, 7/16 NC x 3-3/4 INCH, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

34 inch Sankey wheels.

1шт.

3

21029R1

WASHER

- flat, 15/32 x 1 x 7/64 inch, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

4

537133R1

SPACER

- taper, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

28 or 30 inch Sankey or Nagbol wheels.

1шт.

4

3123374R1

SPACER

- taper, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

34 inch Sankey wheels.

1шт.

5

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, , 28, 30 and 34 inch attached 8 rim clamp wheels 7/16"

8шт.

6

271501

SOCKET

NUT - hex, 7/16 inch NC, grade 5, 28, 30 and 34 inch attached 8 rim clamp wheels

8шт.

7

1500992C1

WEIGHT

- first set, 28, 30 and 34 inch Lemmerez wheels

2шт.

8

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

- hex, 5/8 NC x 3 inch, grade 5, 28, 30 and 34 inch Lemmerez wheels

12шт.

9

NLS

NO LONGER SERVICED

- flat, 21/32 x 1-5/16 x 5/64 inch, 28, 30 and 34 inch Lemmerez wheels

12шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 28, 30 and 34 inch Lemmerez wheels 5/8"

12шт.

11

280374

NUT,Hex, 5/8" - 11, Gr 5

- hex, 5/8 inch NC, grade 5, 28, 30 and 34 inch Lemmerez wheels

12шт.
