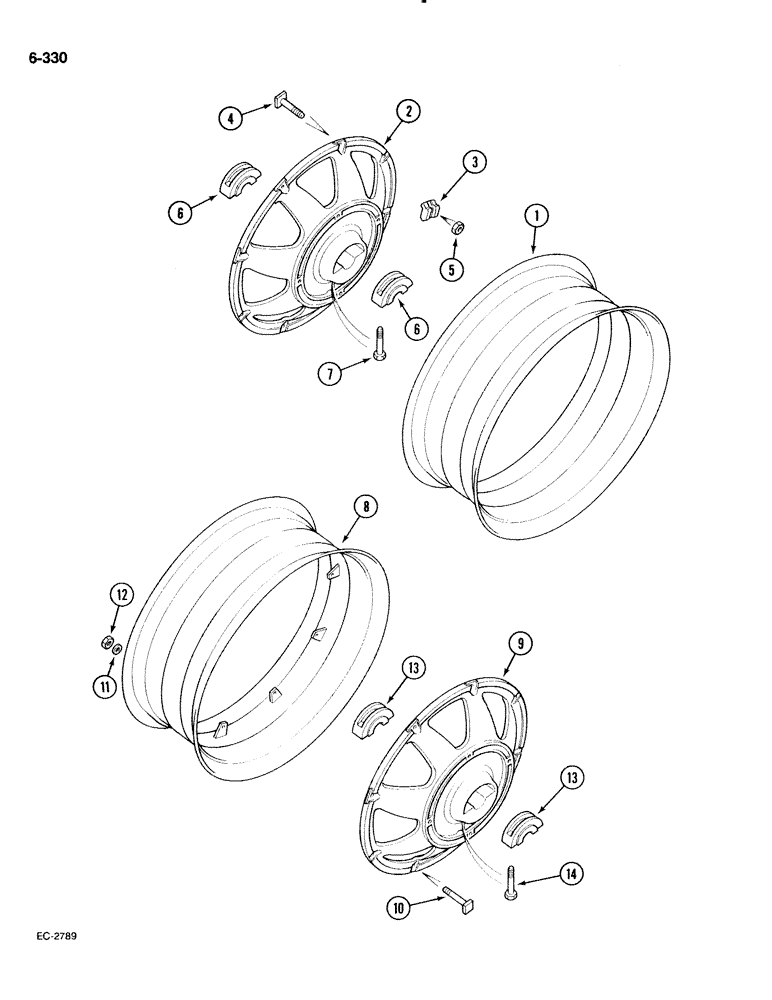

Запчасти Case IH 885 (6-330) - WHEELS, REAR, CAST - 38 AND 42 INCH, BAR TYPE REAR AXLE (06) - POWER TRAIN

1

380869R1

RIM

- wheel, double bevel, WDB14-38 (For 15.5-38 tire), 38 inch wheel

2шт.

2

392415R1

WHEEL

DISC - clutch inner, 38 inch wheel

2шт.

3

381725R1

SHIN

CLAMP - adjustable, wheel rim, 38 inch wheel

12шт.

3

381726R1

SHIN

CLAMP - fixed, wheel rim, 38 inch wheel

4шт.

4

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp, 38 inch wheel

16шт.

5

425-110

- hex, 5/8 inch NF, grade 5, 38 inch wheel

16шт.

6

389539R1

CLAMP

- rear wheel hub, 38 inch wheel

4шт.

7

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, 38 inch wheel

8шт.

7

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

- hex, 7/8 NF x 4-3/4 inch, grade 5, 38 inch wheel (Optional to 375463R1)

8шт.

8

392714R91

RIM

- wheel, WDB9-42 (For 12.4-42 tire), 42 inch wheel

2шт.

9

388336R1

DISC

- clutch inner, 42 inch wheel

2шт.

10

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

BOLT - rim clamp, 42 inch wheel

16шт.

11

131016

WASHER

- flat, 21/32 x 1-5/16 x 5/64 inch, 42 inch wheel

16шт.

12

121358

YOKE

- hex, 5/8 inch NF, grade 5, 42 inch wheel

16шт.

13

389539R1

CLAMP

- rear wheel hub, 42 inch wheel

4шт.

14

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, 42 inch wheel

8шт.

14

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

- hex, 7/8 NF x 4-3/4 inch, grade 5, 42 inch wheel (Optional to 375463R1)

8шт.
