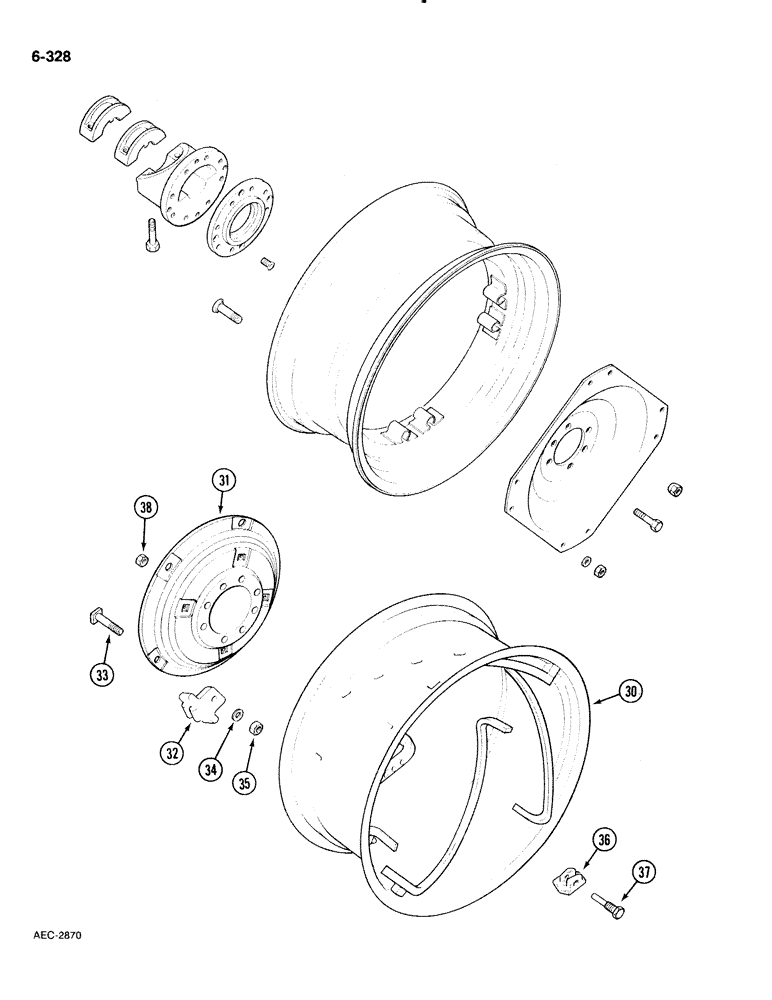

Запчасти Case IH 885 (6-328) - WHEELS, REAR - 34, 38 INCH AND POWER ADJUSTED (CONTD) (06) - POWER TRAIN

30

1282566C1

RIM

- power adjusted wheel, W14-30 (For 16.9-30 tire), 30"

2шт.

31

399002R1

DISC, WHEEL

DISC - formed, 30 inch diameter, 30" power adjusted wheel

2шт.

32

399004R1

SHIN

CLAMP - double ramp, 30" power adjusted wheel

10шт.

33

399005R1

SQUARE BOLT,3/4" - 10 x 2.25"

BOLT - square head, 3/4 NC x 2-1/4 inch, 30" power adjusted wheel

10шт.

34

399007R1

WASHER

- flat, 3/4 inch, 30" power adjusted wheel

10шт.

35

399006R1

WHEEL NUT

- hex, 3/4 inch NC, 30" power adjusted wheel

10шт.

36

A9406

STOP

BODY - stop, 30" power adjusted wheel

4шт.

37

K200142

SCREW,Hex, 9/16" x 2 1/8"

- stop, 30" power adjusted wheel

4шт.

38

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel mounting, 30" power adjusted wheel

16шт.
