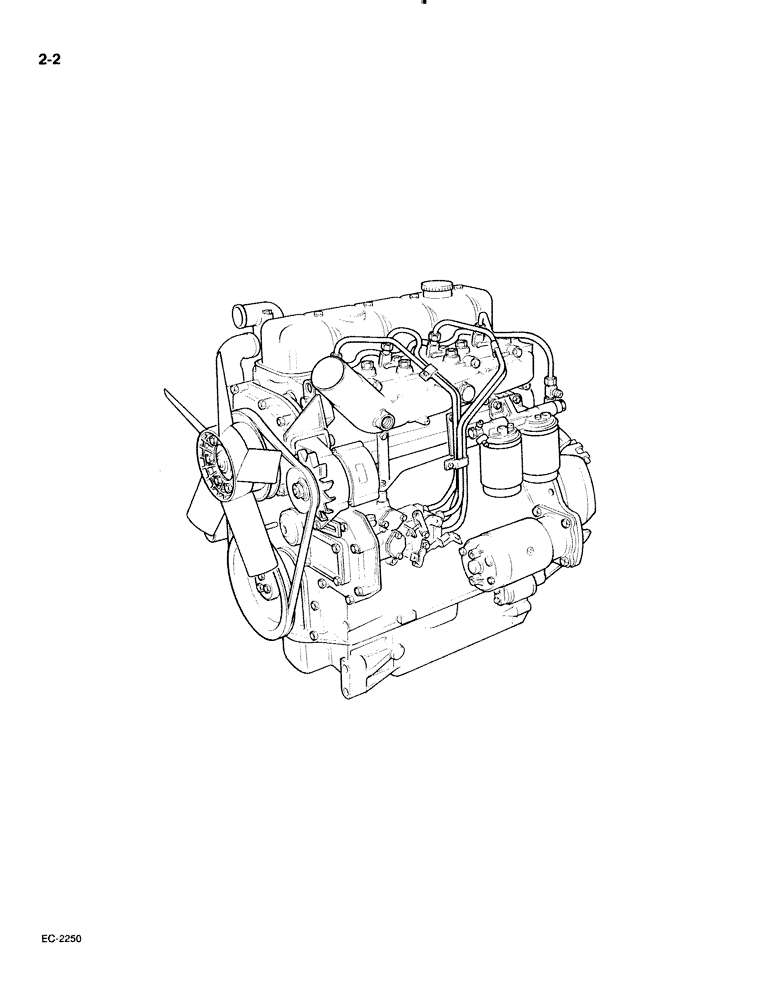

Запчасти Case IH 885 (2-002) - ENGINES, SERVICE (02) - ENGINE

3228040R97

ENGINE ASSEMBLY

ENGINE - D-268, complete service : Consists of all engine parts except the following :

1шт.

NSS

NOT SOLD SEPARAT

ALTERNATOR - electrical generation

1шт.

NSS

NOT SOLD SEPARAT

BELT - fan

1шт.

NSS

NOT SOLD SEPARAT

FAN - engine cooling

1шт.

NSS

NOT SOLD SEPARAT

MUFFLER - engine exhaust

1шт.

NSS

NOT SOLD SEPARAT

PIPE - engine exhaust

1шт.

3218064R95

SKELETON ENGINE

ENGINE - D-268, short block : Consists of the following engine parts :

1шт.

NSS

NOT SOLD SEPARAT

CAMSHAFT - with gear and bearings, engine short block

1шт.

NSS

NOT SOLD SEPARAT

ROD - connecting, with bearings, engine short block

4шт.

NSS

NOT SOLD SEPARAT

BLOCK - engine, complete, engine short block

1шт.

NSS

NOT SOLD SEPARAT

CRANKSHAFT - with bearings, engine short block

1шт.

NSS

NOT SOLD SEPARAT

PISTON - with pins and rings, engine short block

4шт.
