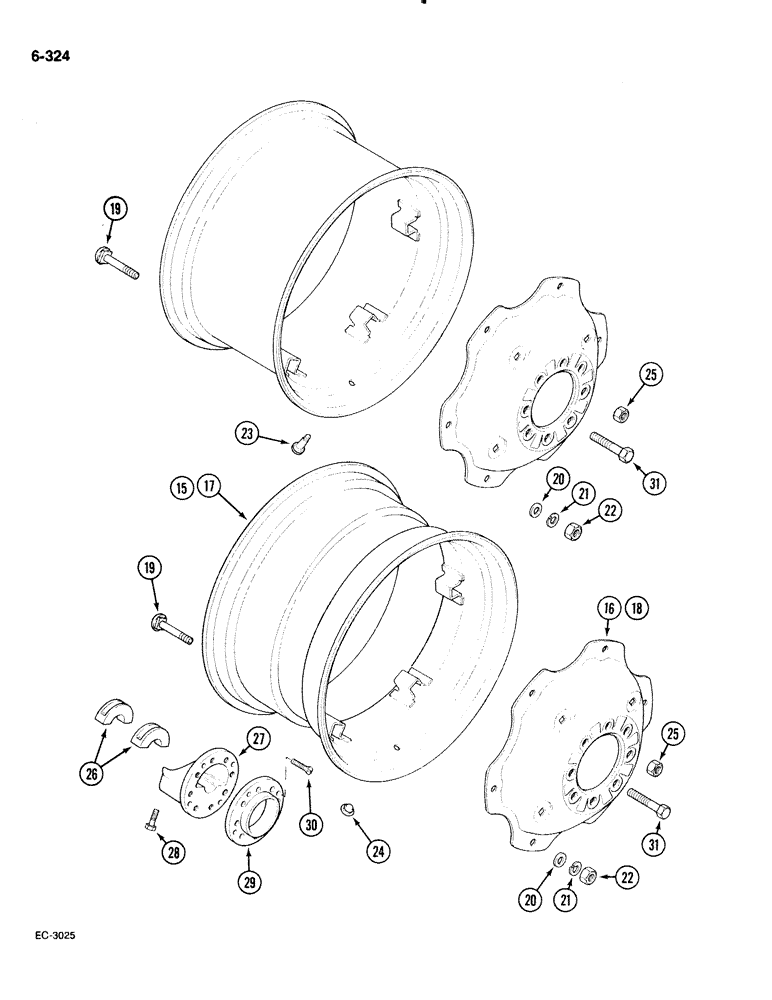

Запчасти Case IH 885 (6-324) - WHEELS, REAR, STEEL - 24, 26, 28, AND 30 INCH (CONTD) (06) - POWER TRAIN

15

395856R2

RIM

- wheel, DW14-30 (For 16.9-30 tire), 30 inch wheel

2шт.

15

395855R2

RIM

- wheel, DW16-30 (For 18.4-30 tire), 30 inch wheel

2шт.

16

361724R1

WHEEL DISC

DISC - 28 and 30 inch rear wheels

2шт.

17

395856R2

RIM

- wheel, DW14-30 (For 16.9-30 tire), 30 inch heavy duty wheels

2шт.

17

395855R2

RIM

- wheel, DW16-30 (For 18.4-30 tire), 30 inch heavy duty wheels

2шт.

18

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheels, heavy duty

2шт.

19

363800R2

BOLT,5/8" - 18 x 3 1/8"

- square head, 5/8 NF x 3-1/8 inch, mounting hardware

12шт.

Double quantities for dual rear wheels.

1шт.

20

369730R2

WASHER

- flat, 21/32 inch, mounting hardware

12шт.

Double quantities for dual rear wheels.

1шт.

21

131140

LOCK WASHER,5/8"

WASHER, LOCK, , Mounting hardware 5/8"

12шт.

Double quantities for dual rear wheels.

1шт.

22

352777R2

WHEEL NUT

- hex, 5/8 inch NF, mounting hardware

12шт.

Double quantities for dual rear wheels.

1шт.

22

225861

NUT,5/8"-18, G8

(Optional to 352777R2), mounting hardware 5/8"-18, G8

12шт.

23

27549R1

VALVE STEM

TR 618A, Mounting hardware

1шт.

24

383697R1

PLUG

- rubber, rim hole, mounting hardware

1шт.

25

3047575R3

NUT,Wheel, 5/8"-18

- rear wheel mounting, hardware

16шт.

26

389539R1

CLAMP

- rear wheel hub, bar type axle

4шт.

Double quantities for dual rear wheels.

1шт.

27

530504R1

HUB

- rear wheel, clamp for bar type axle

2шт.

Double quantities for dual rear wheels.

1шт.

28

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, hub clamp for bar type axle

8шт.

Double quantities for dual rear wheels.

1шт.

28

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

- hex, 7/8 NF x 4-3/4 inch, grade 5 (Optional to 375463R1), hub clamp for bar type axle

8шт.

29

365957R3

FLANGE

- pilot, rear wheel hub, hub clamp for bar type axle

2шт.

Double quantities for dual rear wheels.

1шт.

30

373367R1

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot flange mounting, hub clamp for bar type axle

8шт.

Double quantities for dual rear wheels.

1шт.

31

365397R3

WHEEL BOLT

BOLT rear wheel mounting, hub clamp for bar type axle

16шт.

Double quantities for dual rear wheels.

1шт.

31

1343216C1

BOLT,Hex, 5/8" - 18 x 66.04mm, Gr 5

BOLT rear wheel mounting, new longer, used with heavy duty disc, hub clamp for bar type axle

16шт.

Double quantities for dual rear wheels.

1шт.
