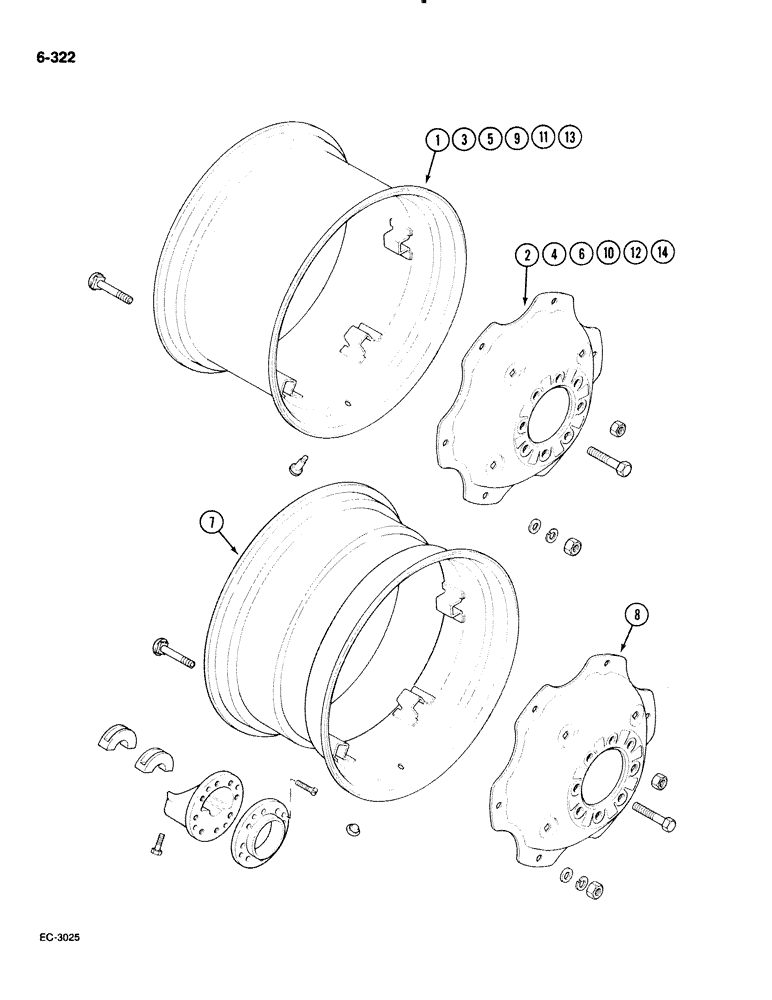

Запчасти Case IH 885 (6-322) - WHEELS, REAR, STEEL - 24, 26, 28, AND 30 INCH (06) - POWER TRAIN

1

(Not used in this application)

1шт.

2

(Not used in this application)

1шт.

3

374808R92

RIM

- wheel, W12-24 (For 14.9-24 tire), 24 inch wheel

2шт.

3

1265033C92

RIM

- wheel, W15L-24 (For 16.9-24 tire), 24 inch wheel

2шт.

4

129373A1

DISC, WHEEL

DISC - 24 and 26 inch wheels, Replaced: 374806R1

2шт.

When mounting wheel weights you will need the following parts: 413-10104 Bolt (8), 135166A1 Spacer (8), 135167A1 Spacer (8)

1шт.

5

1265033C92

RIM

- wheel, W15L-24 (For 16.9-24 tire), 24 inch heavy duty wheel

2шт.

6

1333150C1

DISC, WHEEL

DISC - 24 inch wheel, heavy duty

2шт.

7

3129777R1

RIM

- wheel, DW16-26 (For 18.4-26 tire), 26 inch wheel

2шт.

8

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheels

2шт.

9

1265034C1

RIM

- wheel, W11-28 (For 13.6-28 tire), 28 inch wheel

2шт.

9

363988R92

RIM

- wheel, W12-28 (For 14.9-28 tire), 28 inch wheel

2шт.

9

1265036C1

RIM

- wheel, W15L-28 (For 16.9-28 and 18.4-28 tires), 28 inch wheel

2шт.

10

361724R1

WHEEL DISC

DISC - 28 and 30 inch rear wheels

2шт.

11

363988R92

RIM

- wheel, W12-28 (For 14.9-28 tire), 28 inch dual wheels

4шт.

12

361724R1

WHEEL DISC

DISC - 28 and 30 inch rear wheels, dual wheels

4шт.

13

1265036C1

RIM

- wheel, W15L-28 (For 16.9-28 and 18.4-28 tires), 28 inch heavy duty wheels

2шт.

14

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheels, heavy duty

2шт.
