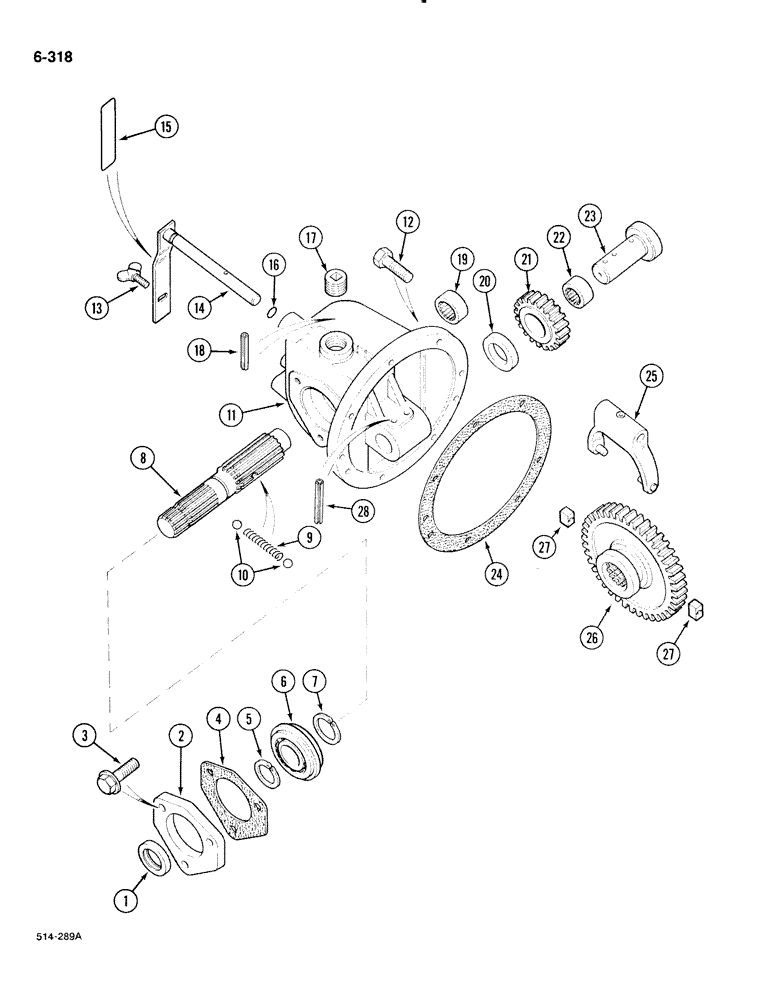

Запчасти Case IH 885 (6-318) - SIDE DRIVE POWER TAKE OFF, PRIOR TO P.I.N. 18001 (06) - POWER TRAIN

1

381480R1

OIL SEAL

- oil, output shaft

1шт.

1

381480R1GV

SEAL

Value, Oil Seal

1шт.

2

529327R1

FLANGED BEARING

- output shaft bearing

1шт.

3

321316R1

SCREW

- cap, hex, 1/2 NC x 1-1/4 inch

3шт.

4

529328R1

GASKET

- output shaft bearing retainer

1шт.

5

A21619

CIRCLIP

RING - retaining, output shaft bearing

1шт.

6

ST247

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING - ball, output shaft

1шт.

6

700497R91

BEARING, BALL

BEARING - ball, Serial Range: (Optional-ST247)

1шт.

6

67647C91

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

- ball (Optional to ST247)

1шт.

6

645336R91

BALL BEARING

BEARING - ball, Serial Range: (Optional-ST247)

1шт.

6

71269C91

BEARING

- ball, Serial Range: (Optional-ST247)

1шт.

7

R15364

SNAP RING,#152, 1.527", Ext

RING - retaining, external, 1.527 inch

1шт.

8

67131C1

SHAFT

- output

1шт.

9

529329R1

SPRING

- driven gear poppet

1шт.

10

17009R1

BALL

- steel, 9/32 inch diameter

2шт.

11

529322R2

HOUSING - side drive PTO

1шт.

12

NLS

NO LONGER SERVICED

- hex, 3/8 NC x 1 inch, grade 5

7шт.

13

164603C1

THUMB SCREW,3/8" - 16 x 5/8"

SCREW - adjusting, selector fork shaft arm

1шт.

14

65772C1

SHAFT ASSY.

SHAFT - selector fork, with decal, Includes: Ref. 15

1шт.

15

65771C1

DECAL

- side PTO caution instruction

1шт.

16

355966R1

O-RING,0.424" ID x 0.103" Width

- 7/16 x 5/8 inch, class 5

1шт.

17

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - automotive square socket, 3/4 inch NPTF

1шт.

18

19791R1

PIN,1/4" x 1 1/8", Coiled

1шт.

19

529323R91

BEARING, NEEDLE

BEARING - needle, output shaft

1шт.

20

67130C1

SPACER

- idler gear

1шт.

21

529325R1

GEAR, IDLER

GEAR - side drive PTO idler, 21 teeth

1шт.

22

287057R91

BEARING, NEEDLE

BEARING - needle, idler gear

1шт.

22

531437R91

NEEDLE BEARING

BEARING - needle, Serial Range: (Optional-287057R91)

1шт.

23

67129C1

SHAFT

- side drive PTO idler gear

1шт.

24

528650R1

GASKET

- side drive PTO housing

1шт.

25

529331R1

FORK

- drive gear selector

1шт.

26

67132C1

GEAR

- side drive PTO driven, 44 teeth

1шт.

27

67133C1

BLOCK

- selector fork

2шт.

28

618573R1

PIN,1/4" x 2 1/4", Coiled

1шт.
