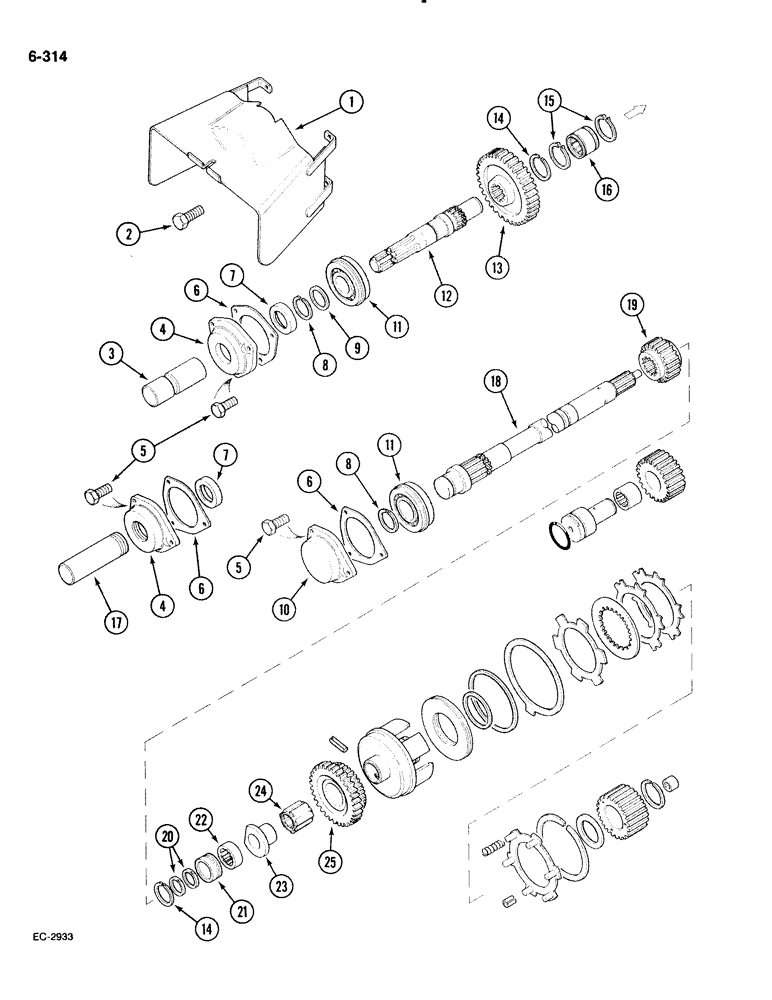

Запчасти Case IH 885 (6-314) - INDEPENDENT POWER TAKE OFF (06) - POWER TRAIN

1

401734R1

GUARD ASSY.

SHIELD - IPTO safety

1шт.

2

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

3054841R2

TUBE

CAP - protection, IPTO safety

1шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

4

1500086C1

FLANGED BEARING

- bearing, IPTO shaft (Dual speed)

2шт.

5

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch, grade 5

6шт.

6

399843R3

GASKET

- rear frame IPTO flange

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Single speed)

1шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

SEAL - oil, output shaft (Dual speed)

2шт.

8

607186R1

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

1шт.

10

66191C1

FLANGED BEARING

- bearing, IPTO shaft (Single speed)

1шт.

11

ST250

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING - ball, output shaft

2шт.

11

67650C91

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball (Optional to ST250)

2шт.

11

67649C91

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

- ball (Optional to ST250)

2шт.

11

67648C91

BEARING

- ball, Serial Range: (Optional-ST250)

2шт.

11

84246R91

BEARING - ball, Serial Range: (Optional-ST250)

2шт.

11

93167C1

BALL BEARING,40 mm ID x 96.5 mm OD x 23 mm

- ball (Optional to ST250)

2шт.

12

1500087C1

SHAFT

- upper, IPTO output

1шт.

13

1342557C2

PINION

GEAR - upper driven, 38 teeth, Replaces: 66192C1

1шт.

14

336000R1

SNAP RING,#175, 1.640", Ext

RING - retaining, external, 1.64 inch

2шт.

15

202307R1

SNAP RING,#206, Ext

Retaining, 1.906" #206, Ext

2шт.

16

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

- needle, top shaft

1шт.

17

406808R1

TUBE

- IPTO shaft protection (Dual speed)

1шт.

18

66189C1

SHAFT ASSY.

SHAFT - IPTO driving, single speed, Serial Range: -18001

1шт.

Pin used with shaft is P/N 932169R1.

1шт.

18

99463C1

SHAFT

- IPTO driving, single speed, Start Serial: 18001

1шт.

Pin used with shaft is P/N 932169R1.

1шт.

18

66180C2

SHAFT ASSY.

SHAFT - output, 1000 rpm, 21 spline, dual speed, Serial Range: -18001

1шт.

Pin used with shaft is P/N 932169R1.

1шт.

18

99462C1

SHAFT

- output, 1000 rpm, 21 spline, dual speed, Start Serial: 18001

1шт.

Pin used with shaft is P/N 932169R1.

1шт.

19

404233R1

PINION

GEAR - drive, lower shaft, 22 teeth (Single speed)

1шт.

19

404232R1

GEAR

- drive, lower shaft, 21 teeth (Dual speed)

1шт.

20

166972R1

RING

- shaft sealing, Serial Range: -18001

2шт.

20

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

- shaft sealing, Start Serial: 18001

2шт.

21

401705R2

BUSHING,39.69mm ID x 50.86mm OD x 23.11mm L

- lower shaft, Serial Range: -18001

1шт.

21

93506C1

BUSHING

- lower shaft, Start Serial: 18001

1шт.

22

565232R91

BEARING, NEEDLE,Needle, 38.09mm ID x 47.64mm OD x 15.88mm W

BEARING - needle, lower shaft, Serial Range: -18001

1шт.

22

93500C91

NEEDLE BEARING,37.033 mm ID x 52.0065 mm OD x 22.06 mm

- needle, lower shaft, Start Serial: 18001

1шт.

22

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

- needle (Optional to 93500C91)

1шт.

23

82499C2

BUSHING

- double idler gear, 4 wheel drive, Start Serial: 18001

1шт.

24

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

- needle, 4 wheel drive, Start Serial: 18001

1шт.

25

82666C1

GEAR

- double idler, 4 wheel drive, Start Serial: 18001

1шт.
