(6-306) - TRANSFER GEARBOX, 4 WHEEL DRIVE P.I.N. 18001 AND AFTER, APL-330 FRONT AXLE (CONTD)

Запчасти Case IH 885 (6-306) - TRANSFER GEARBOX, 4 WHEEL DRIVE P.I.N. 18001 AND AFTER, APL-330 FRONT AXLE (CONTD) (06) - POWER TRAIN

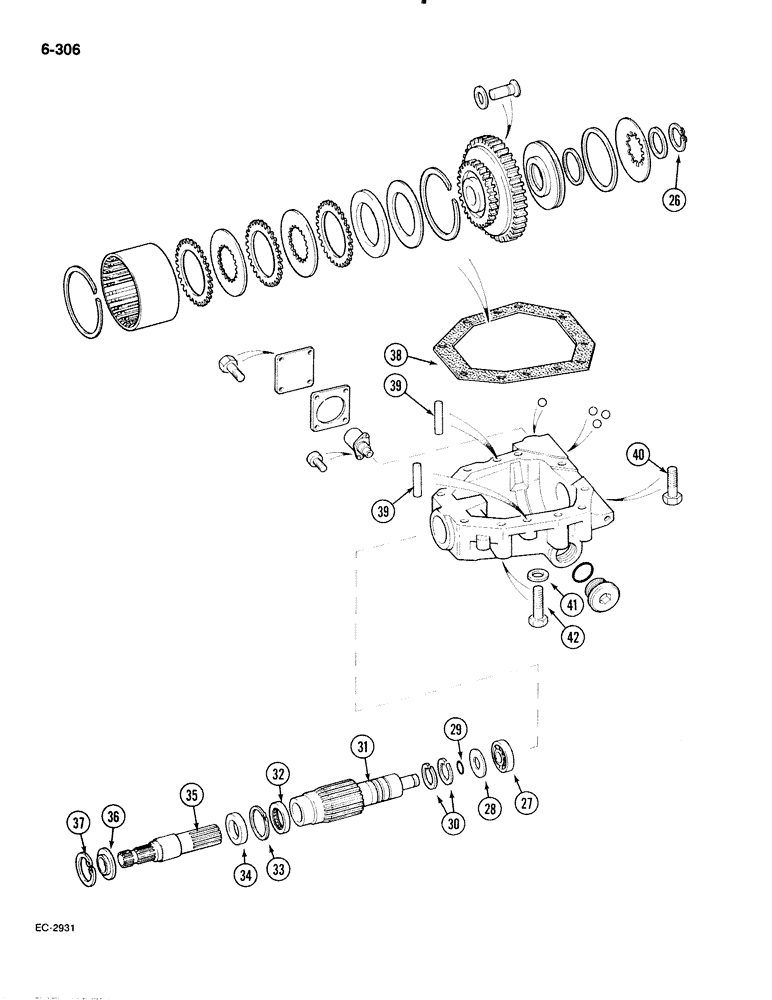

Схема запчастей Case IH 885 - (6-306) - TRANSFER GEARBOX, 4 WHEEL DRIVE P.I.N. 18001 AND AFTER, APL-330 FRONT AXLE (CONTD) (06) - POWER TRAIN
39
29
32
38
31
27
36
28
30
33
26
41
37
34
35
39
42
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

82360C91

DRIVE

BOX transfer gea, Includes: Ref. 26 thru 37 and parts in Figure 6-304

1шт.

26

933283R1

SNAP RING,M45, Ext

RING - retaining, external, 40.72 mm

1шт.

27

81088C1

BEARING, ROLLER

BEARING - roller

1шт.

28

81089C1

THRUST WASHER

WASHER

1шт.

29

81182C1

RING

- 19 x 1.5 mm

1шт.

30

81191C1

SEALING RING

RING - 35 x 2 mm

2шт.

31

81192C1

SHAFT

- drive

1шт.

32

81093C1

BEARING, ROLLER

BEARING - roller

1шт.

33

933086R1

SNAP RING,M30, Ext

- retaining, external, 27.48 mm

1шт.

34

81086C1

OIL SEAL

SEAL - oil

1шт.

35

81158C1

SHAFT

1шт.

36

81087C1

RING, SNAP

RETAINER

1шт.

37

934443R1

SNAP RING,M58, Int

RING - retaining, internal, 61.74 mm

1шт.

38

82632C2

GASKET

- transfer gear box

1шт.

39

141284

PIN,25.4mm OD x 31.75mm L

Pin 1/2" x 1 1/8"

2шт.

40

25658R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

5шт.

41

26273R1

WASHER

- flat, 0.531 x 1.062 x 0.134 inch

4шт.

42

25285R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 8

- hex, 1/2 NC x 3-1/4 inch grade 8

4шт.
