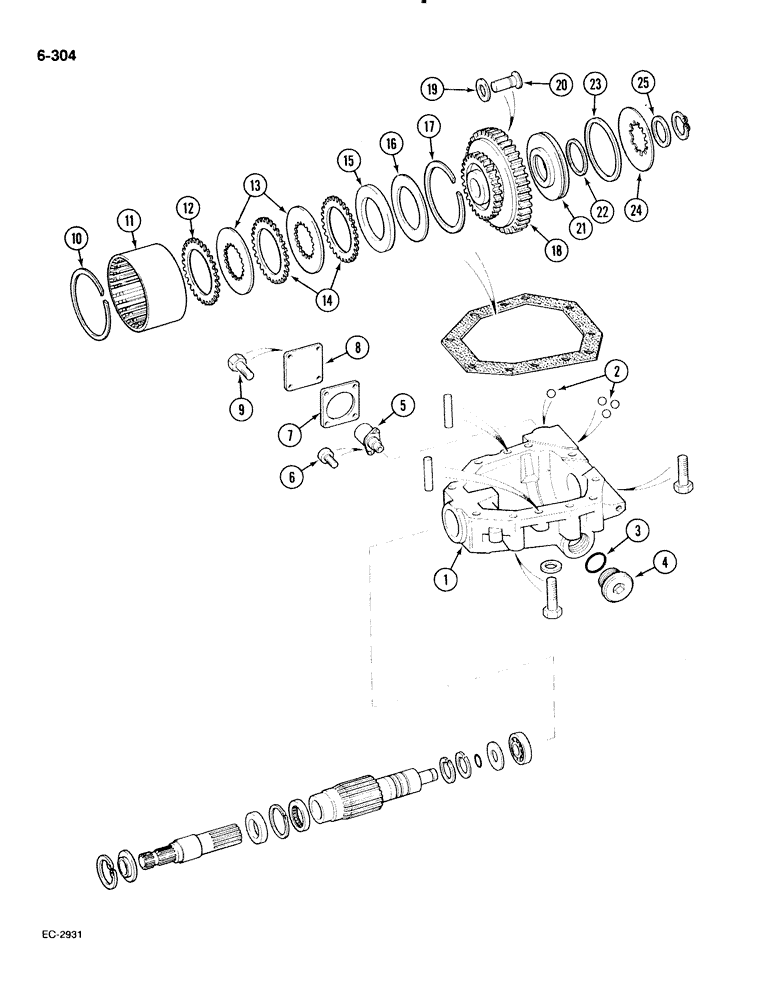

Запчасти Case IH 885 (6-304) - TRANSFER GEARBOX, 4 WHEEL DRIVE P.I.N. 18001 AND AFTER, APL-330 FRONT AXLE (06) - POWER TRAIN

82360C91

DRIVE

BOX transfer gear, Includes: Ref. 1 thru 25 in this figure and parts in Figure 6-306

1шт.

1

81170C1

CASE

HOUSING - transfer gear, Includes: Ref. 2

1шт.

2

3057501R1

BALL

- 6 mm diameter

4шт.

3

81168C1

O-RING,2.65mm Thk x 32.5mm ID, Cl 5, 75 Duro

- 33 x 2 mm

1шт.

4

905476R1

PLUG

- hex socket, M36, grade 5.8

1шт.

5

81171C1

VALVE

MFD solenoid, O-rings used are 102459A1, 13 mm dia, and 102460A1, 21 mm dia.

1шт.

6

930974R1

HEX SOC SCREW,M5 x 10mm, Cl 8.8

SCREW - cap, hex socket, M5 x 10 mm, class 8.8

2шт.

7

81172C1

PACKING RING

GASKET - valve cover

1шт.

8

81173C1

COVER

- valve

1шт.

9

930244R1

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, M8 x 25 mm, class 8.8

4шт.

10

81190C1

RING, SNAP

RING - snap

1шт.

11

81184C1

RING CARRIER

CARRIER

1шт.

12

81189C1

WASHER

WASHER

1шт.

13

81187C1

DRIVEN PLATE

PLATE - inner

8шт.

14

81188C1

DRIVE PLATE

PLATE - outer

9шт.

15

81186C1

WASHER

- shim, 4.0 mm

1шт.

15

1968318C1

WASHER

WASHER - shim, 4.4 mm

1шт.

15

1968319C1

WASHER

WASHER - shim, 4.6 mm

1шт.

15

1968320C1

WASHER

WASHER - shim, 4.8 mm

1шт.

15

1968321C1

WASHER

WASHER - shim, 5.0 mm

1шт.

15

1968322C1

WASHER

WASHER - shim, 5.2 mm

1шт.

15

1968323C1

WASHER

WASHER - shim, 5.4 mm

1шт.

15

1968324C1

WASHER

WASHER - shim, 5.6 mm

1шт.

15

1968317C1

WASHER

WASHER - shim, 5.8 mm

1шт.

15

1968325C1

WASHER

WASHER - shim, 6.0 mm

1шт.

15

1968326C1

WASHER

WASHER - shim, 6.2 mm

1шт.

15

1968327C1

WASHER

WASHER - shim, 6.4 mm

1шт.

15

1968328C1

WASHER

WASHER - shim, 6.6 mm

1шт.

15

1968329C1

WASHER

WASHER - shim, 6.8 mm

1шт.

16

81186C1

WASHER

- shim, 4.0 mm

1шт.

17

81185C1

CIRCLIP

RING - snap

1шт.

18

81174C1

GEAR

1шт.

19

81179C1

O-RING,1.5mm Thk x 7mm ID, 70 Duro

- 7 x 1.5 mm

1шт.

20

81178C1

LARGE PIN,17mm OD x 34.7mm L

BOLT

1шт.

21

81175C1

PISTON

1шт.

22

81176C1

PACKING RING

RING - 51.5 x 2.5 mm

1шт.

23

81177C1

RING,Square, 2.5mm Thk x 107mm ID

RING - 107 x 2.5 mm

1шт.

24

81180C1

SPRING

SPRING

1шт.

25

81181C1

RING

1шт.
