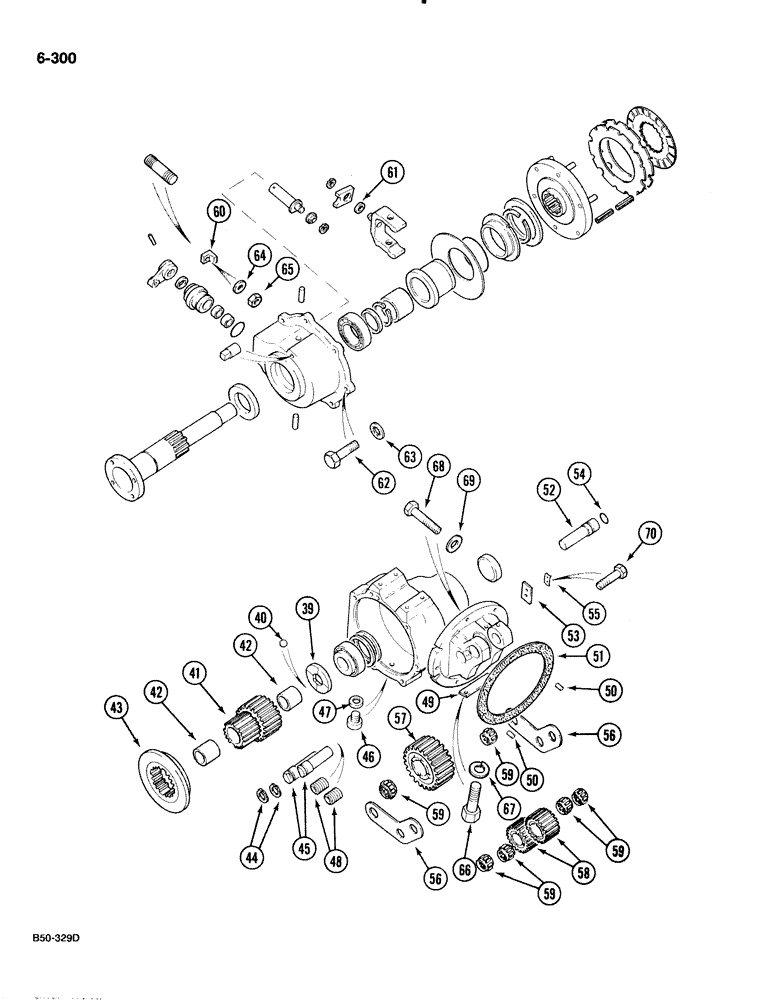

Запчасти Case IH 885 (6-300) - P.T.O. CLUTCH AND DRIVE (CONTD) (06) - POWER TRAIN

39

1500649C1

THRUST WASHER

- thrust

1шт.

40

17008R1

BALL,1/4" Dia

Grade 25 metal 1/4" Dia

1шт.

41

3129960R91

GEAR

- 24 teeth, with bushing, Includes: Ref. 42

1шт.

42

3129962R1

BUSHING

2шт.

43

3129963R2

PLATE

- thrust

1шт.

44

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

2шт.

45

3129951R1

PIN

- idler gear

2шт.

46

934259R1

PLUG,Hex, M10 x 1

1шт.

47

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

48

444687

PLUG,Hex Soc, 1/8"-27

- Automotive Hex Soc, 1/8"-27

2шт.

49

3129966R1

BRACKET

1шт.

50

20154R1

DOWEL,5/16" x 7/8"

PIN - dowel, 5/16 x 7/8 inch

2шт.

51

984791C1

GASKET

- 0.4 mm

1шт.

51

1502059C1

GASKET

- 0.3 mm

1шт.

52

3129953R1

PIN

- idler gear

1шт.

53

3129957R1

PLATE

Gear pin lock

2шт.

54

3129954R1

O-RING

1шт.

55

3129958R1

PLATE, LOCKING

PLATE - bolt lock

2шт.

56

3129956R1

THRUST WASHER

WASHER - thrust, idler gear

2шт.

57

3129952R1

GEAR, IDLER

GEAR - idler, 31 teeth

1шт.

58

3129950R1

GEAR, IDLER

GEAR - idler, 20 teeth

2шт.

59

3129955R91

BEARING, NEEDLE

BEARING - needle roller

6шт.

60

1502172C1

ANGLE

- clamp

1шт.

61

3405811R1

BUSHING

1шт.

62

30021R1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

7шт.

63

933965R1

LOCK WASHER,M10

7шт.

64

95-11034

WASHER,1/4"

- plain, 0.344 x 0.688 x 0.051 inch

1шт.

65

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

1шт.

66

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, M8 x 20 mm, class 8.8

2шт.

67

934309R1

LOCK WASHER,M8

WASHER - lock, M8

2шт.

68

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

7шт.

69

25896R1

WASHER,13/32" x 13/16" x .09", HDN

- hardened, 13/32 x 13/16 x 3/32 inch

2шт.

70

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

- hex, M6 x 12 mm, class 8.8

4шт.
