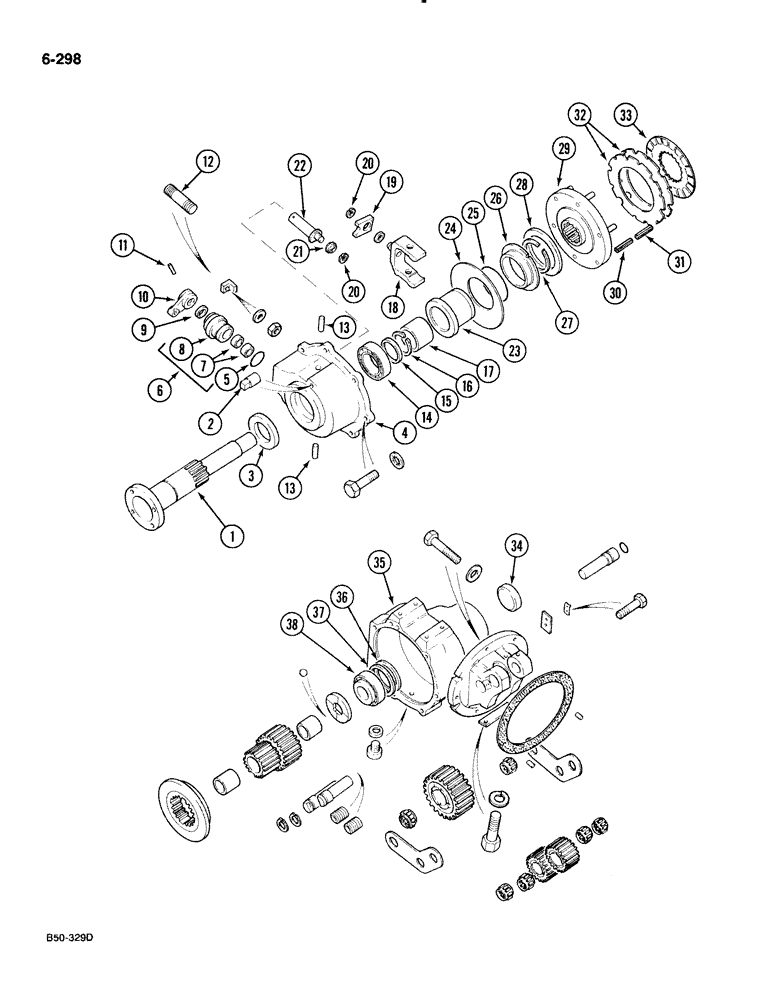

Запчасти Case IH 885 (6-298) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN

1

3129959R1

SHAFT

- main

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

- automotive Hex Socket, 1/4 inch NPTF

1шт.

3

3216278R2

OIL SEAL,55mm ID x 90mm OD x 15.5mm Thk

- oil

1шт.

4

3223136R1

CASE

COVER - front

1шт.

5

3217269R1

O-RING,2.5mm Thk x 42mm ID, 70 Duro

1шт.

6

1500548C92

HOUSING ASSY.

HOUSING - complete with bearing, Includes: Ref. 7 and 8

1шт.

7

3064504R91

BEARING

- needle

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

9

1500550C1

OIL SEAL

1шт.

10

1500013C1

LEVER

- lower

1шт.

11

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

12

3072253R1

STUD

1шт.

13

3216291R3

PIN

- pivot

2шт.

14

3216279R91

TAPERED BEARING

- tapered roller

1шт.

15

3216292R1

WASHER

1шт.

16

933030R1

SNAP RING,M55, Ext

RING - retaining

1шт.

17

3216285R1

SPACER

1шт.

18

3223146R92

YOKE

1шт.

19

3225050R91

SUPPORT ASSY.

ARM - control assembly

1шт.

20

933120R1

SNAP RING,M15, Ext

RING - retaining, external, 13.94 mm

2шт.

21

3216283R1

BALL JOINT

BUSHING - ball

1шт.

22

1500547C1

PIN

- eccentric

1шт.

23

1500647C91

SLEEVE ASSY

SLEEVE - clutch release

1шт.

24

3223717R1

SPRING WASHER

WASHER, Belleville

1шт.

25

3216293R3

RING

1шт.

26

3216294R3

RING

BUSHING

1шт.

27

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING - retaining

1шт.

28

3216295R91

THRUST BEARING,90mm ID x 120mm OD x 8mm W

- thrust

1шт.

29

1500645C92

HUB

- assembly, with pins, Includes: Ref. 30 and 31

1шт.

30

932323R1

LOCK PIN,M6 x 45, Slotted

PIN - slotted spring, 6 x 45 mm

6шт.

31

Q5348

LOCK PIN,10mm OD x 45mm L, Slotted

PIN, LOCK, M10 x 45, Slotted

6шт.

32

3221192R1

DISC

DISK - clutch outer

6шт.

33

1500651C1

CLUTCH PLATE,120mm ID x 156mm OD x 3.05mm Thk

DISK - clutch inner

4шт.

34

934581R1

PLUG,M63, Conical

- cup

1шт.

35

3129949R1

CASE

- mounting

1шт.

36

3142414R1

SHIM

- 0.10 mm

1шт.

36

3146816R1

SHIM

- 0.15 mm

1шт.

36

3142630R1

SHIM

- 0.20 mm

1шт.

36

3142631R1

SHIM

- 0.50 mm

1шт.

37

3223137R1

WASHER

1шт.

38

3220682R91

TAPERED BEARING,35mm ID x 80mm OD x 32.75mm W

- tapered roller

1шт.

38

3225581R91

TAPERED BEARING

BEARING - tapered roller, Serial Range: (Optional-3220682R91)

1шт.
