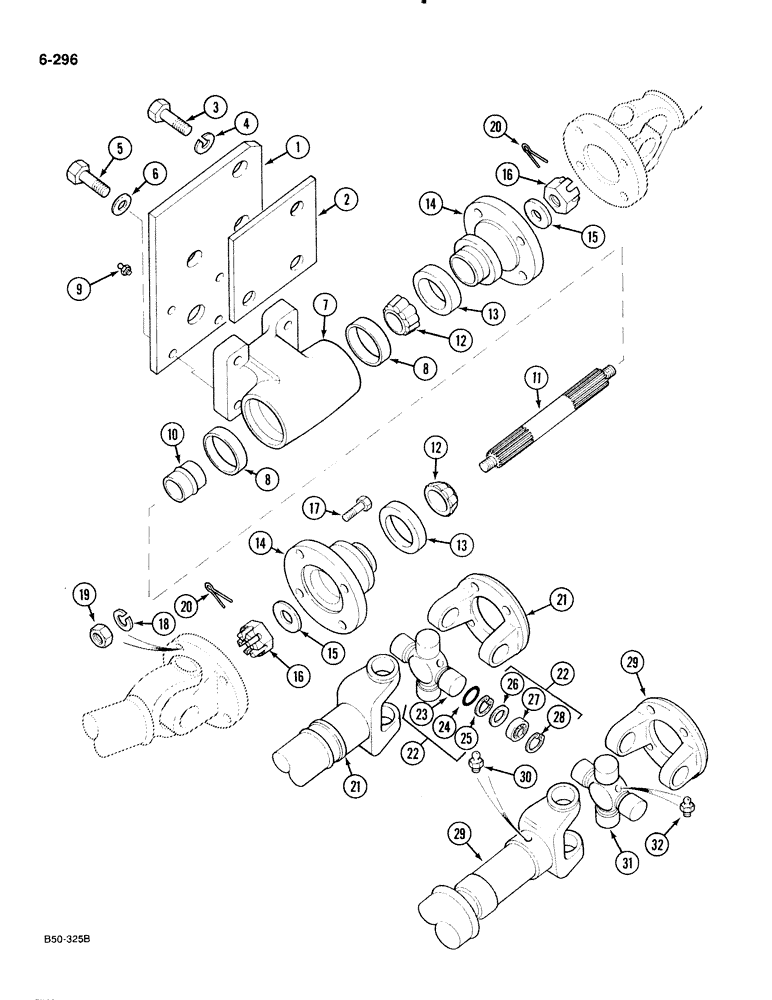

Запчасти Case IH 885 (6-296) - PROPELLER SHAFT, 4 WHEEL DRIVE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
3129947R1
SUPPORT
BRACKET - pillow block
1шт.
2
3121579R1
SPACER
PLATE - spacer
1шт.
4
131142
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
3шт.
5
24862R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8
4шт.
6
120396
WASHER
- flat, 0.531 x 1.063 x 0.074 inch
4шт.
7
3129942R91
BLOCK ASSY.
BLOCK - pillow, Includes: Ref. 8
1шт.
8
651817R91
BEARING, CUP
BEARING - cup
2шт.
9
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , NPTF 1/8"-27 x .66 lg
1шт.
10
3129945R1
SPACER
1шт.
11
3129944R1
SHAFT
1шт.
13
3129946R1
OIL SEAL
- oil
2шт.
13
1004318C1
OIL SEAL
SEAL - oil, Serial Range: (Optional-3129946R1)
2шт.
14
3129941R1
FLANGE
- companion
2шт.
15
25556R1
WASHER,21/32" x 1 1/2" x .188", HDN
- hardened, 21/32 x 1-1/2 x 3/16 inch
2шт.
16
1003759C1
NUT,5/8"-18
NUT - hex, slotted
2шт.
17
870325R1
BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8
- hex, 7/16 NC x 1-3/8 inch, grade 8
12шт.
18
115314
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
16шт.
19
9418646
NUT,7/16"-14, G8
- hex, 7/16 inch NC, grade 8
16шт.
20
103386
COTTER PIN,1/8" x 1 1/4"
Pin, Split (Cotter), 1/8" x 1 1/4"
2шт.
21
3129940R92
SHAFT
- drive, complete, Includes: Ref. 22 - 28
2шт.
22
1287973C91
U-JOINT SPIDER
KIT - service, U-joint, Includes; Ref. 23 - 28
4шт.
23
NSS
NOT SOLD SEPARAT
JOINT - universal
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL
4шт.
25
NSS
NOT SOLD SEPARAT
RETAINER - seal
4шт.
26
NSS
NOT SOLD SEPARAT
WASHER - thrust
4шт.
27
NSS
NOT SOLD SEPARAT
BEARING - cup, with roller needles
4шт.
28
NSS
NOT SOLD SEPARAT
RING - retaining
4шт.
29
82474C91
SHAFT ASSY.
SHAFT - drive, complete (Optional to 3129940R92), Includes: Ref. 30 - 32
2шт.
31
82475C91
U-JOINT SPIDER
JOINT - universal, Includes: Ref. 32
2шт.
Выбрано товаров: 33
